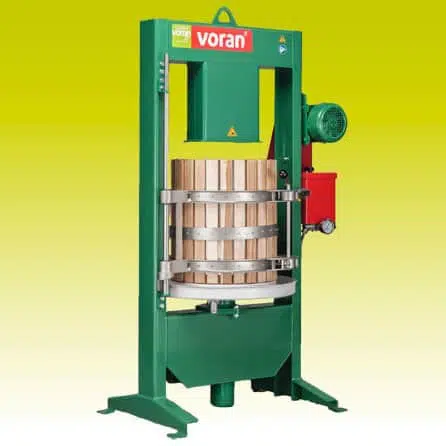

Basket press 60K with centrifugal mill RM1,5
180 kg/h. Basket press with pivoting round basket, top-mounted pivoting centrifugal mill RM1.5 and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.
Product Documents
Download PDF
Product Description
Basket press with pivoting round basket, top-mounted pivoting centrifugal mill RM1.5 and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.
TECHNICAL DATA
| Nominal rating kg/h | 180 kg/h |
| Motor rating | Press 1,1 (1,5) mill 1,5 (2,0) kW (PS) |
| Connected load | 400V 50Hz (3-phase) |
| Electrical protection | 16 A |
| Length | 1080 mm |
| Width | 900 mm |
| Height | 1700 mm |
| Discharge height | 1770 mm |
| Weight | 216 kg |
| Material | Juice basin from polystyrene, basket and mill in 1.4301 / AISI 304 |
| Press force | 16,1 to |
| Press pressure | 320 bar |
| Juice yield | 75 % |
| Connection for juice outlet | ø30mm |
| Height juice outlet | 480 mm |
| Height pomace ejector | 580 mm |

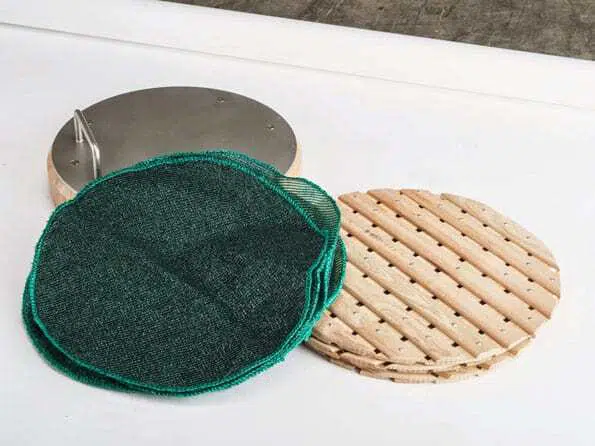

| Scope of supply | 1 press sack 60l, 3 sleeve inserts dia. 38cm, 3 press inserts in acacia wood dia. 38cm |
