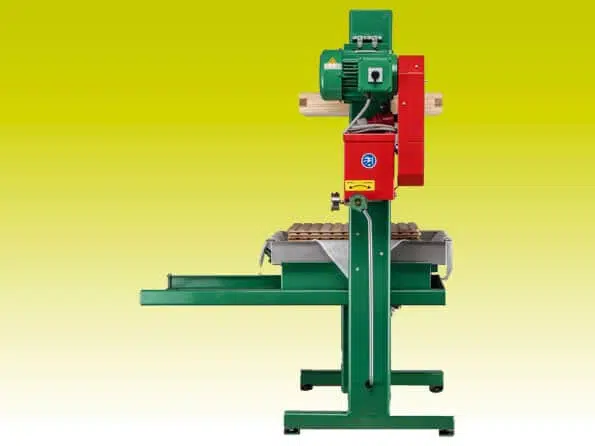

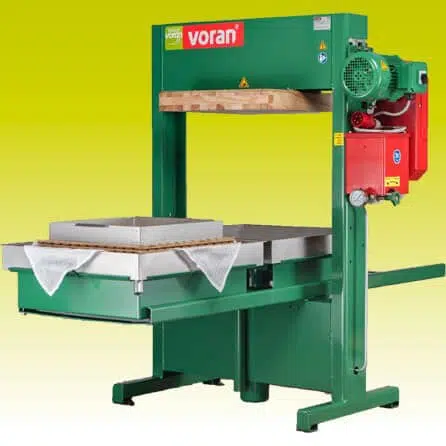

Packing press 100 P2 with two shift press cages

Sorry, this product is not available in your country.

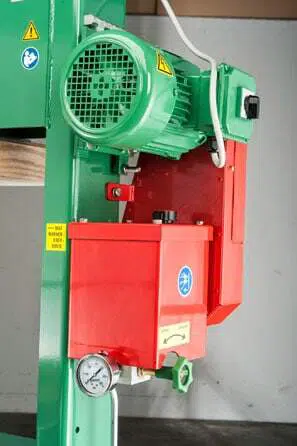

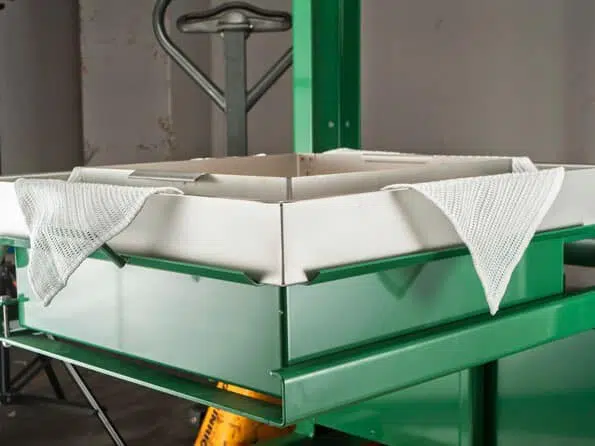

600 kg/h. Packing press with two moveable juice basins (sliding carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

Sorry, this product is unavailable or Cellar-Tek is not the distributor in your country. (We cater to Canada & North America.) Please feel free to inquire about local distribution contact information.
SKU: 338 Category:
Share On:

Product Description

Packing press with two moveable juice basins (sliding carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

TECHNICAL DATA

Nominal rating kg/h600 kg/h
Motor rating1,5 (2,0) kW (PS)
Connected load400V 50 Hz (3-phase)
Electrical protection16 A
Length1890 mm
Width1210 mm
Height1510 mm
Discharge height1220 mm
Weight300 kg
MaterialPacker frame and juice basin in 1.4301 / AISI 304
Press force24 to
Press pressure380 bar
Juice yield75 %
Connection for juice outletØ30mm
Height juice outlet420 mm

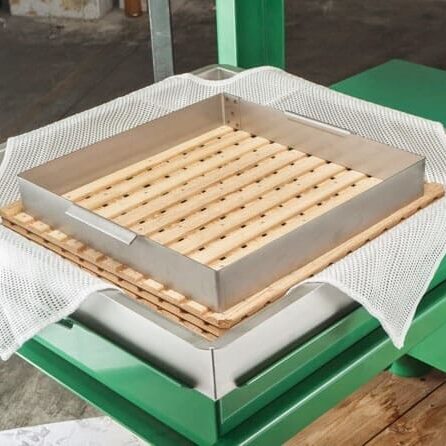

Scope of supply18 press cloths 80×80 cm, 20 press inserts in acacia wood 50×50 cm
