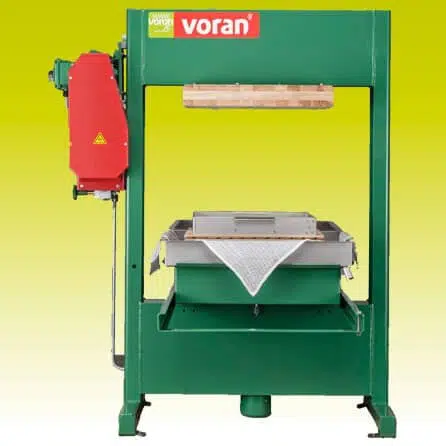

Packing press 100 P1 with shift press cage
300 kg/h. Packing press with moveable juice basin (sliding carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.
Product Documents
Download PDF
Description

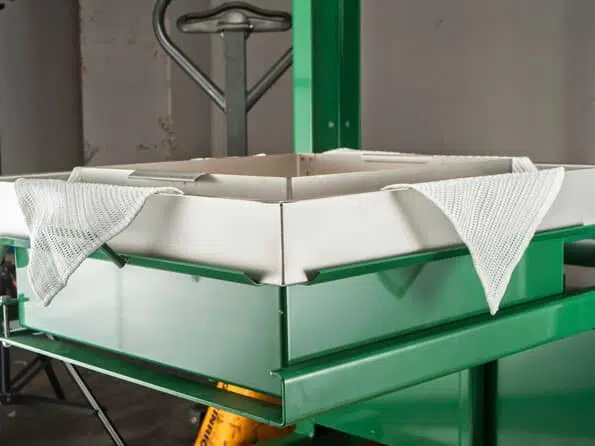

Packing press with movable juice basin (sliding carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.
TECHNICAL DATA
| Nominal rating kg/h | 300 kg/h |
| Motor rating | 1,5 (2,0) kW (PS) |
| Connected load | 400V 50Hz (3-phase) |
| Electrical protection | 16 A |
| Length | 1250 mm |
| Width | 1210 mm |
| Height | 1510 mm |
| Discharge height | 1220 mm |
| Weight | 270 kg |
| Material | Packer frame and juice basin in 1.4301 / AISI 304 |
| Press force | 24 to |
| Press pressure | 380 bar |
| Juice yield | 75 % |
| Connection for juice outlet | Ø30mm |
| Height juice outlet | 420 mm |
| Scope of supply | 9 press cloths 80×80 cm, 10 press inserts in acacia wood 50×50 cm |
