Voran Machinery

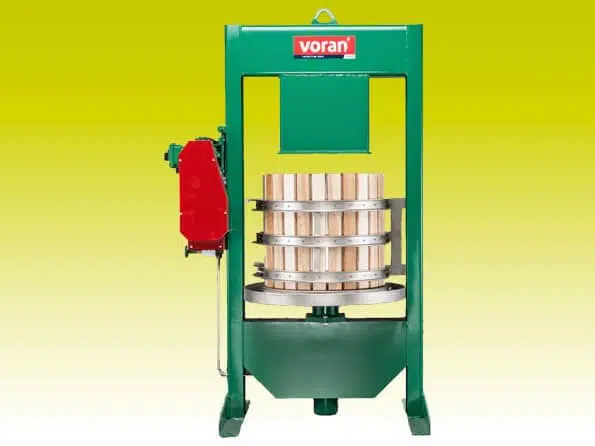

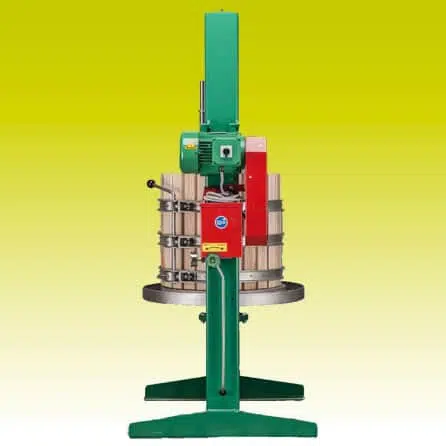

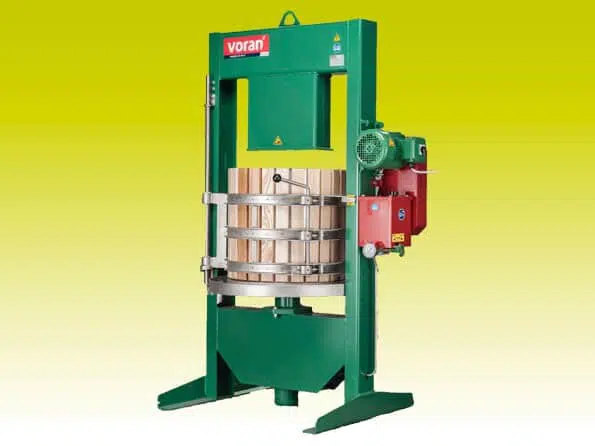

Basket press 100K

Sorry, this product is not available in your country.

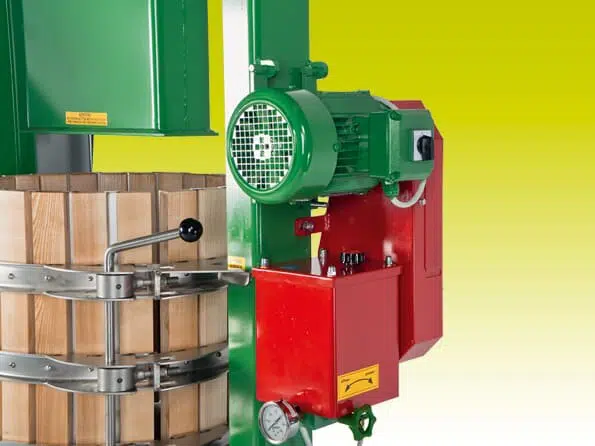

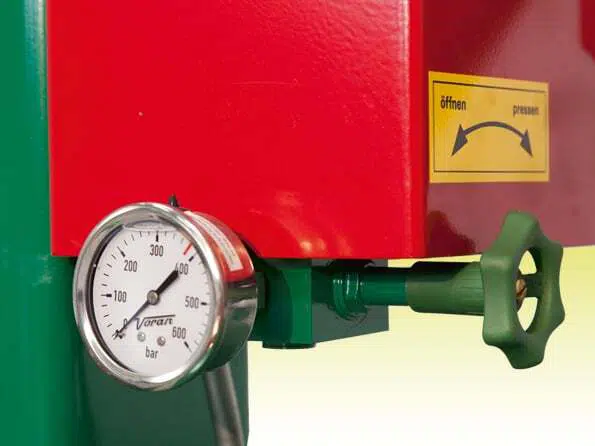

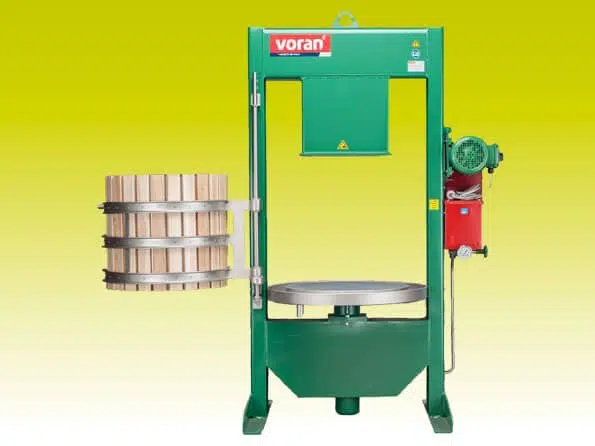

300 kg/h. Basket press with pivoting round basket and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

Product Documents

Sorry, this product is unavailable or cellar-tek is not the distributor in your country. (We cater to Canada & North America.) Please feel free to inquire about local distribution contact information.
SKU: 321 Category:

Product Description

Basket press with pivoting round basket and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

TECHNICAL DATA

Nominal rating kg/h300 kg/h
Motor rating1,5 (2,0) kW (PS)
Connected load400V 50Hz (3-phase)
Electrical protection16 A
Length1180 mm
Width800 mm
Height1910 mm
Discharge height1151 mm
Weight342 kg
MaterialBasket and juice basin in 1.4301 / AISI 304
Press force24,2 to
Press pressure380 bar
Juice yield75 %
Connection for juice outletø30mm
Height juice outlet525 mm
Height pomace ejector640 mm
Scope of supply1 press sack 100l, 3 sleeve inserts dia. 48cm, 3 press inserts in acacia wood dia. 48cm

Product Documents
