Voran Machinery

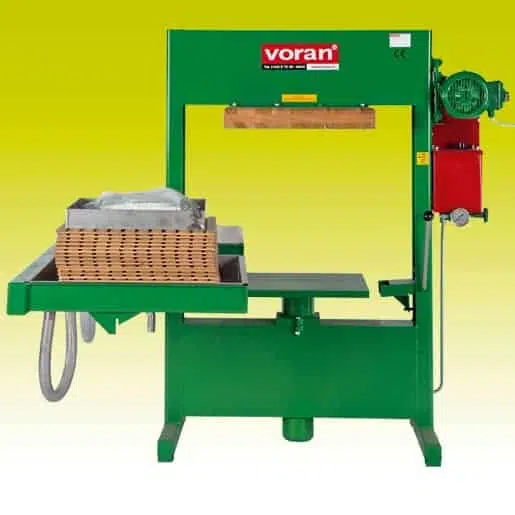

Packing press with rotary cage 100 P2

600 kg/h. Packing press with two pivoting juice basins (rotating carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

CT Garagiste In-Stock ready to deliver

Product Documents

SKU: 341 Category:
Share On:

Product Description

Packing press with two pivoting juice basins (rotating carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.

TECHNICAL DATA

Nominal rating kg/h600 kg/h
Motor rating1,5 (2,0) kW (PS)
Connected load400V 50 Hz (3-phase)
Electrical protection16 A
Length2170 mm
Width730 mm
Height1510 mm
Discharge height1220 mm
Weight295 kg
MaterialPacker frame and juice basin in 1.4301 / AISI 304
Press force24 to
Press pressure380 bar
Juice yield75 %
Connection for juice outletØ30mm
Height juice outlet400 mm
Scope of supply18 press cloths 80×80 cm, 20 press inserts in acacia wood 50×50 cm
