Voran Machinery

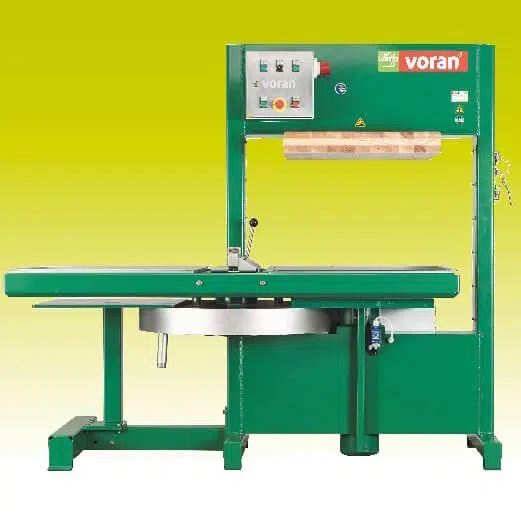

Packing press with rotary cage 180 P2

1200 kg/h. Packing press with two pivoting juice basins (rotating carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit. The machine is available with or without hydraulic lifting and lowering device.

Product Documents

Request a Quote

Request a Quote
SKU: 342 Category:
Share On:

Product Description

Packing press with two pivoting juice basins (rotating carriage) and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit. The machine is available with or without hydraulic lifting and lowering device.

TECHNICAL DATA

Nominal rating kg/h1200 kg/h
Motor rating2,2 (3,0) kW (PS)
Connected load400V 50Hz (3~)
Electrical protection16 A
Length2250 mm
Width850 mm
Height1870 mm
Discharge height1380 mm
Weight820 / 1020 kg
Materialpacking frame and juice basin in 1.4301 / AISI
Press force50 to
Press pressure320 bar
Juice yield75 %
Connection for juice outlet1 1/4″
Height juice outlet420 mm

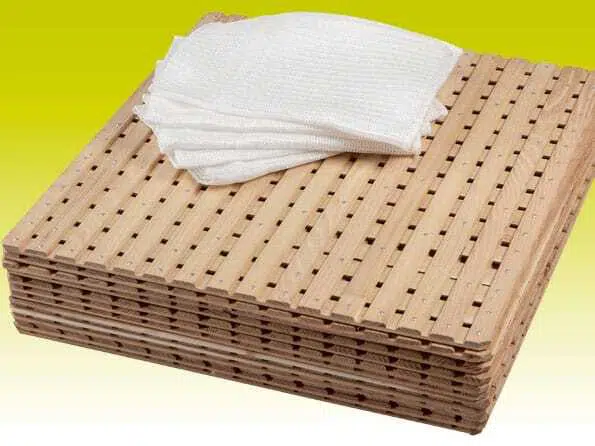

Scope of supply22 press cloths 100x100cm, 24 press insets acacia wood 65x65cm
