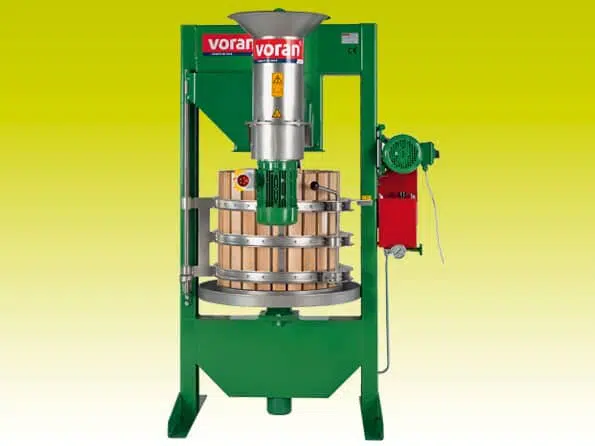

Basket press 100K with centrifugal mill RM1,5

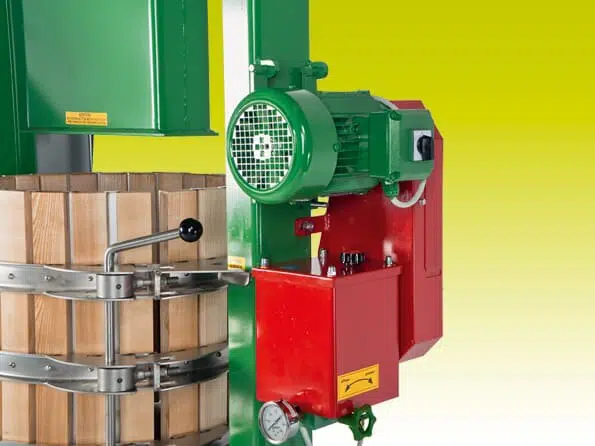

300 kg/h. Basket press with pivoting round basket, top-mounted pivoting centrifugal mill RM1,5 and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.
Product Documents
Download PDF
Product Description

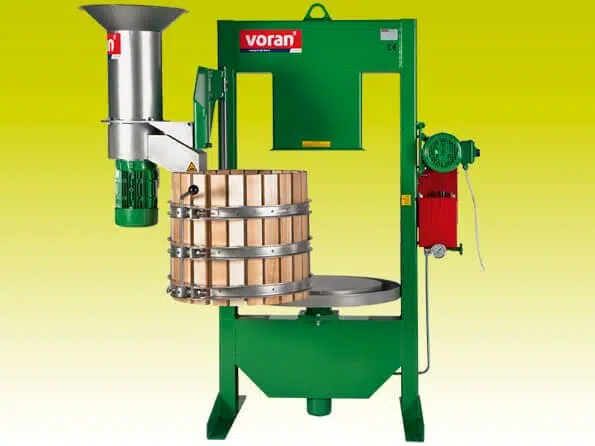

Basket press with pivoting round basket, top-mounted pivoting centrifugal mill RM1,5 and hydraulic power unit. Easy and safe operation thanks to automatic pressure relief valve on hydraulic power unit.
TECHNICAL DATA
| Nominal rating kg/h | 300 kg/h |
| Motor rating | Press 1,5 (2,0) mill 1,5 (2,0) kW (PS) |
| Connected load | 400V 50 Hz (3-phase) |
| Electrical protection | 16 A |
| Length | 1180 mm |
| Width | 1000 mm |
| Height | 1910 mm |
| Discharge height | 1900 mm |
| Weight | 370 kg |
| Material | Mill, basket and juice basin in 1.4301 / AISI 304 |
| Press force | 24,2 to |
| Press pressure | 380 bar |
| Juice yield | 75 % |
| Connection for juice outlet | Ø30mm |
| Height juice outlet | 525 mm |
| Height pomace ejector | 585 mm |
| Scope of supply | 1 press sack 100l, 3 sleeve inserts dia. 48cm, 3 press inserts in acacia wood dia. 48cm |
