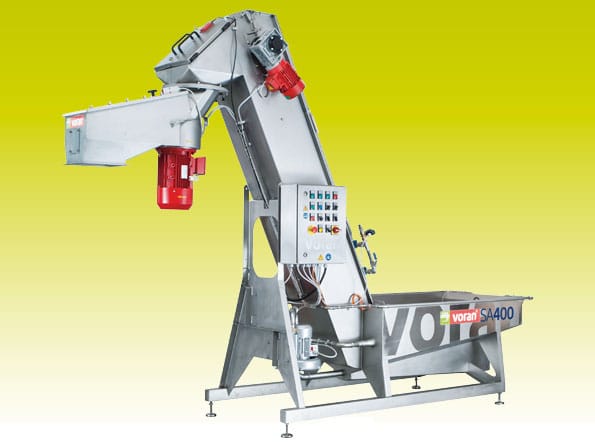

Elevator SA400 with centrifugal mill RM75
Up to 8000 kg/h. Washing system of stainless steel for fruits and vegetables with attached pivoting centrifugal mill. The washing system consists of sorting grid, washing vessel, chain conveyor and add-on pivoting centrifugal mill RM75. The conveyor speed can be adjusted by using the integrated frequency converter.
Product Documents
Download PDF
Product Description
Washing system of stainless steel for fruits and vegetables with attached pivoting centrifugal mill. The washing system consists of sorting grid, washing vessel, chain conveyor and add-on pivoting centrifugal mill RM75. The conveyor speed can be adjusted by using the integrated frequency converter.
Technical Data
| Nominal rating kg/h | up to 8000 kg/h |
| Motor rating | 9,65 kW (PS) |
| Connected load | 400V 50Hz (3~) |
| Electrical protection | 16 A |
| Length | 3570 mm |
| Width | 980 mm |
| Height | 2570 mm |
| Discharge height | 730 mm |
| Weight | 503 kg |
| Material | 1.4301 / AISI 304 |
| Connection for cleaning | HD M22 x 1,5 or G 1/2″ Ag |
| Connection for washing vessel | 1/2″ outside |
| Height mash outlet | 1460 – 1620 mm |
| Height fruit outlet | 1460 – 1620 mm |
Videos
Video depicting Voran cider processing equipment at Elephant Island Cidery in Naramata, BC. Features the Voran Bin Tipper, Washer, Elevator, Mill and Continuous Belt Press.
Conveying and milling carrots with elevator SA and attached centrifugal mill RM2,2
Production of apple juice or cider with belt press EBP350 with elevator SA and pivoting centrifugal mill RM2,2
