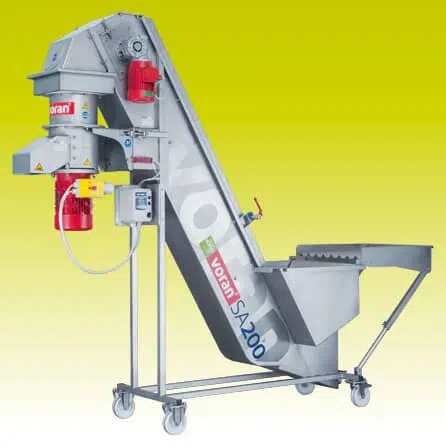

Elevator SA200 with pivoting centrifugal mill RM2,2
1000 kg/h. Washing system of stainless steel for fruits and vegetables with attached pivoting centrifugal mill. The washing system consists of sorting grid, washing vessel, chain conveyor and add-on pivoting centrifugal mill RM2,2. The conveyor speed can be adjusted by using the integrated frequency converter.
Product Documents
Download PDF
Product Description

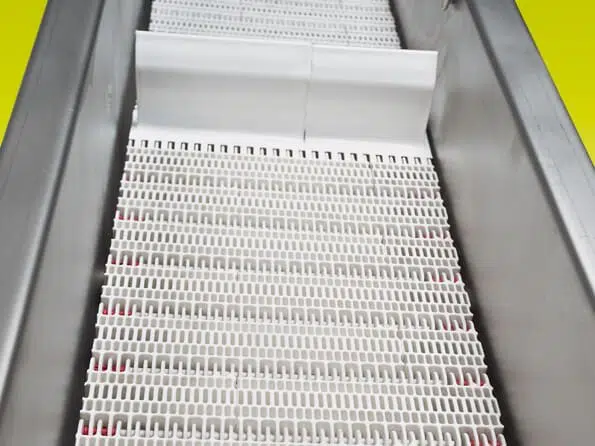

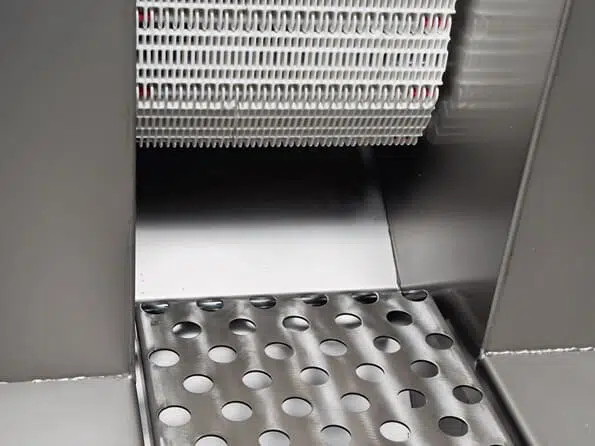

Washing system of stainless steel for fruits and vegetables with attached pivoting centrifugal mill. The washing system consists of sorting grid, washing vessel, chain conveyor and add-on pivoting centrifugal mill RM2,2. The conveyor speed can be adjusted by using the integrated frequency converter.
TECHNICAL DATA
| Nominal rating kg/h | 1000 kg/h |
| Motor rating | Elevator 0,37 (0,5) mill 2,2 (3,0) kW (PS) |
| Connected load | 400V 50Hz (3-phase) |
| Electrical protection | 16 A |
| Length | 2620 mm |
| Width | 700 mm |
| Height | 2100 mm |
| Discharge height | 800 mm |
| Weight | 185 kg |
| Material | 1.4301 / AISI 305 |
| Connection for cleaning | _” inside |

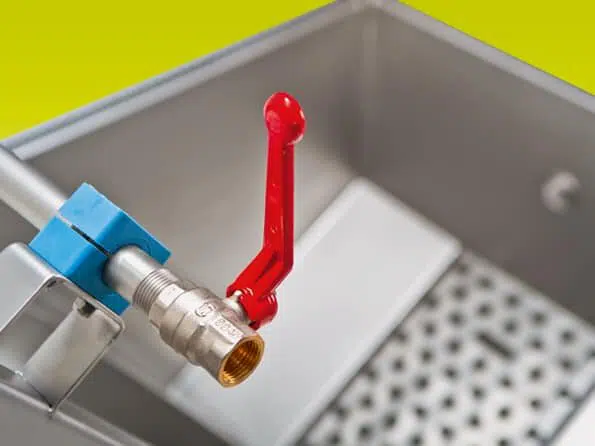

| Connection for washing vessel | 1_” outside |
| Height mash outlet | 1335 mm |
| Scope of supply | with 9 mm and 16 mm cutting screen |
