Voran Machinery

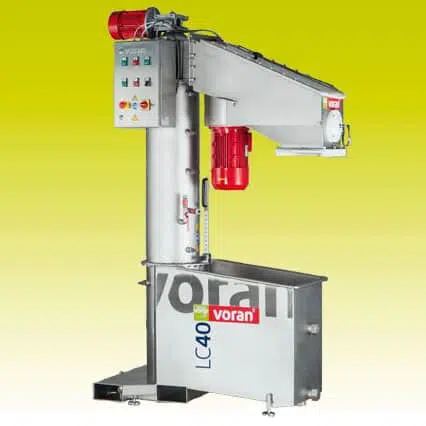

Washing and milling machine WA LC with RM40 for packing press 100P2 rotary cage

Sorry, this product is not available in your country.

2000 kg/h. Washing system consisting of washing vessel, vertical auger-type elevator and add-on centrifugal mill RM40. The washing system is switched on and off automatically via an electrically-controlled metering system. The pivoting turret allows the upper section to be rotated through 90° to save space during operation and make cleaning easier.

Product Documents

Sorry, this product is unavailable or Cellar-Tek is not the distributor in your country. (We cater to Canada & North America.) Please feel free to inquire about local distribution contact information.
SKU: 345 Category:
Share On:

Product Description

Washing system consisting of washing vessel, vertical auger-type elevator and add-on centrifugal mill RM40. The washing system is switched on and off automatically via an electrically-controlled metering system. The pivoting turret allows the upper section to be rotated through 90° to save space during operation and make cleaning easier.

TECHNICAL DATA

Nominal rating kg/h2000 kg/h
Motor rating6,2 (8,5) kW (PS)
Connected load400V 50Hz (3~)
Electrical protection16 A
Length2000 mm
Width700 mm
Height2200 mm
Discharge height720 – 780 mm
Weight285 kg
Material1.4301 / AISI 304
Connection for cleaning1/2 ” inside
Connection for washing vessel2 ” outside
Height mash outlet1270 mm
Height fruit outlet800 mm
Scope of supply12mm cutting screen
