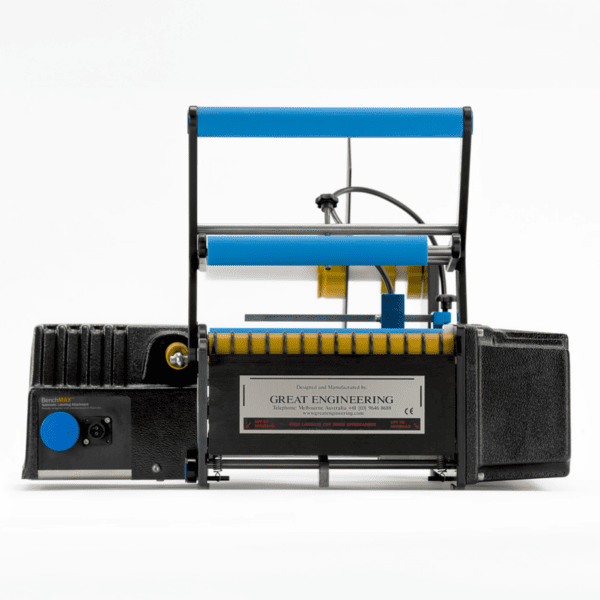

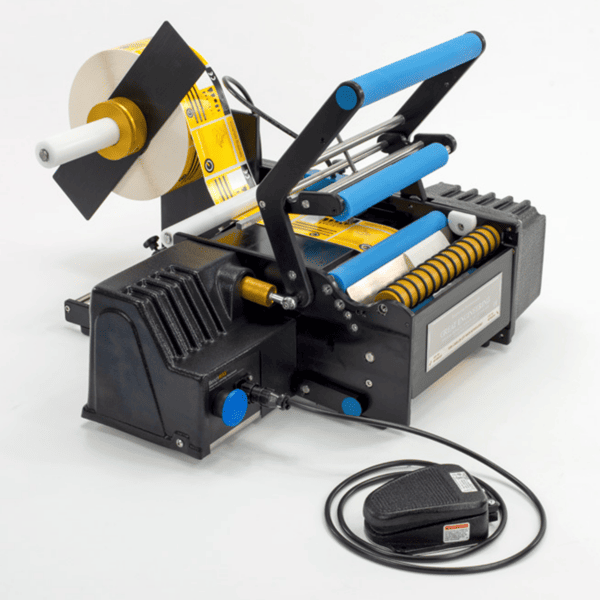

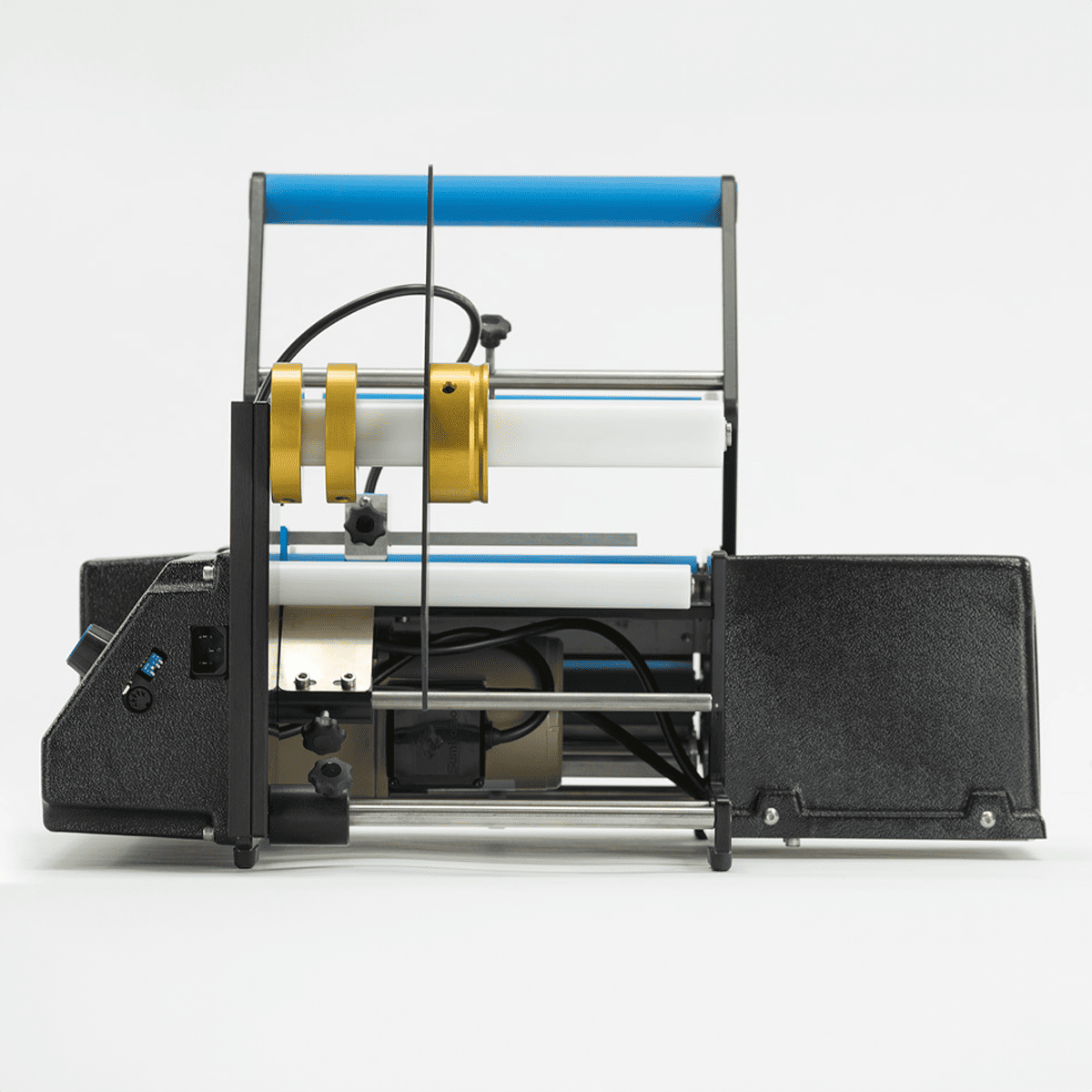

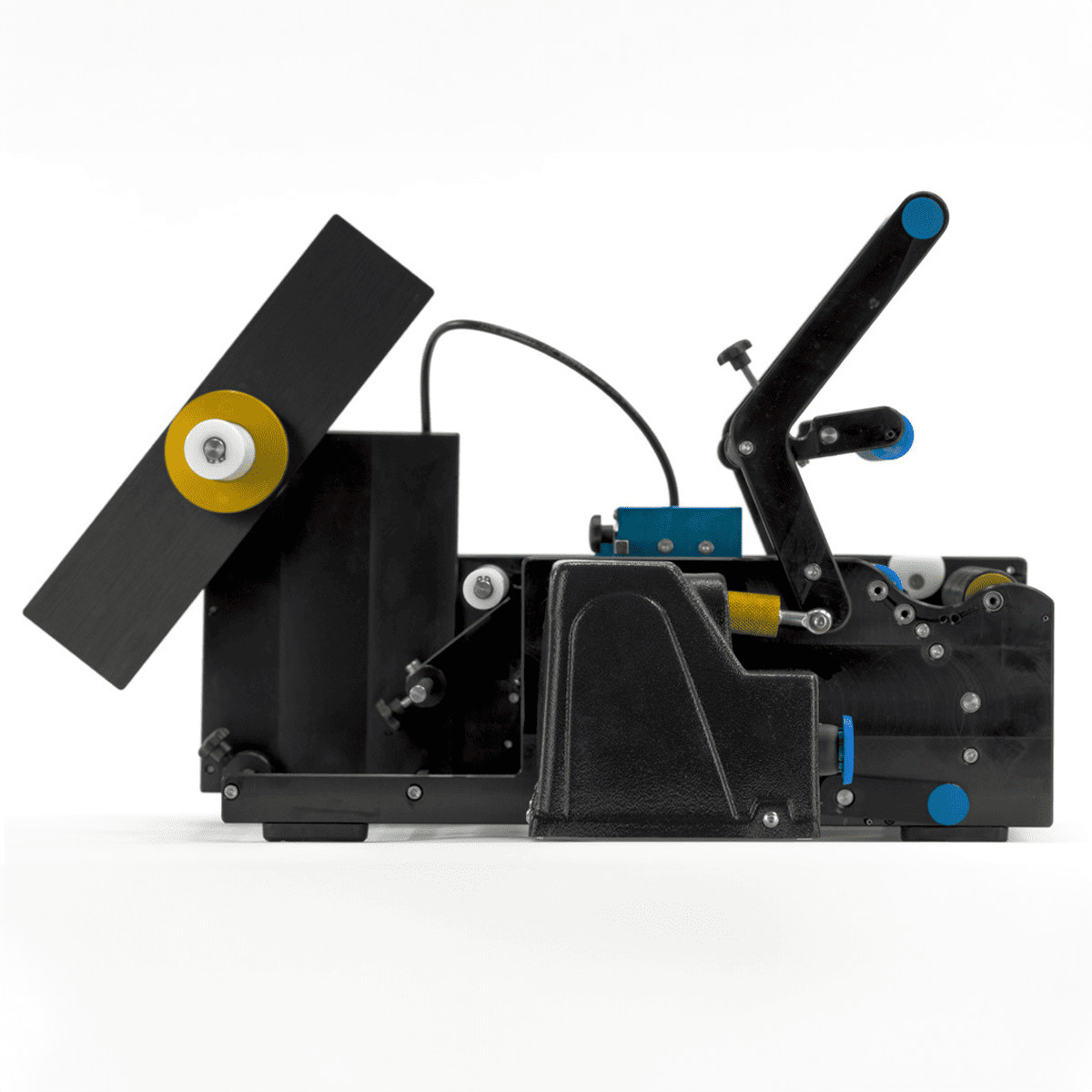

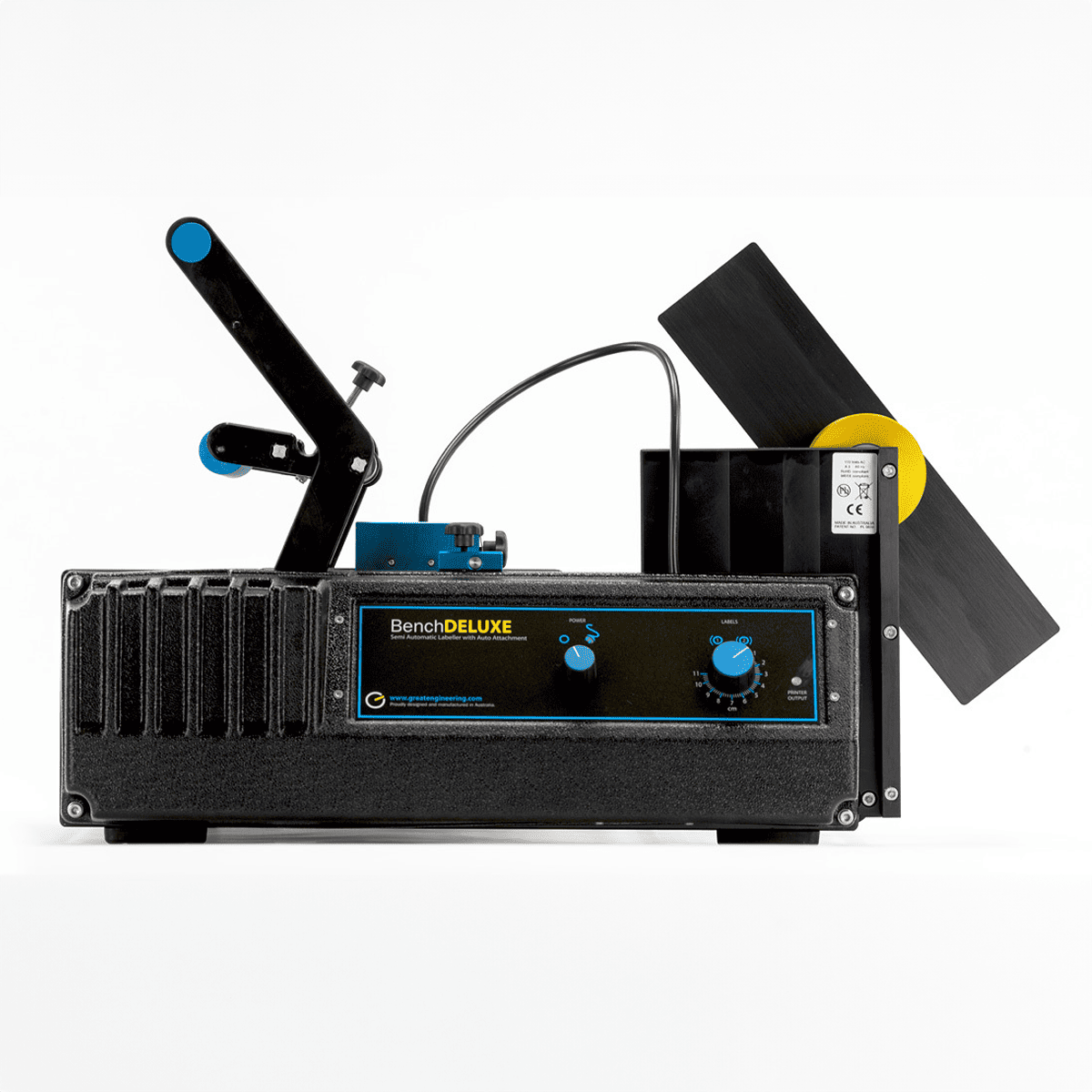

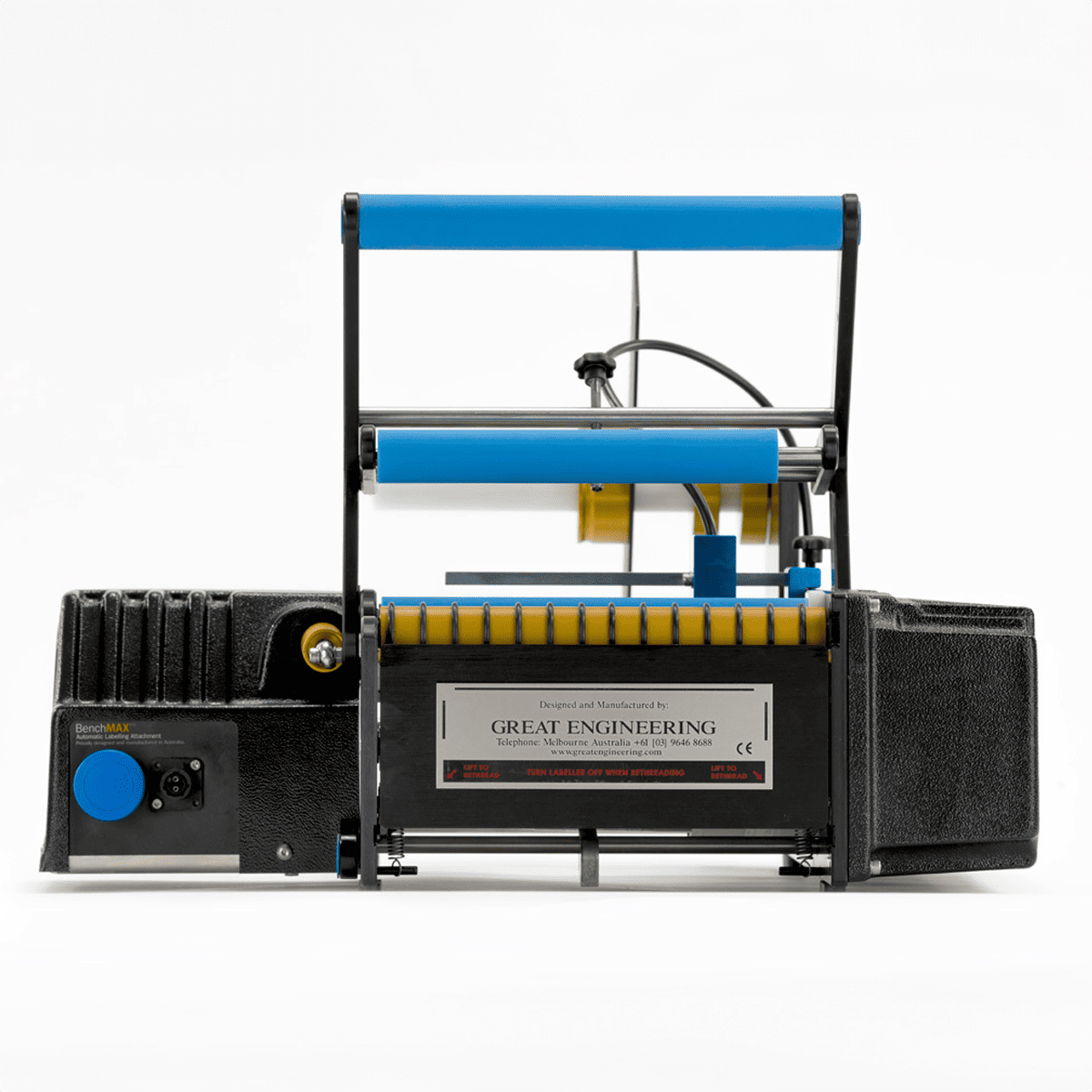

Great Engineering BenchDELUXE Semi-Automatic Labeling Machine

The BenchDELUXE Labeling Machine is the premium of all semi-automatic labeling machines.

Share On:

Product Description

The BenchDELUXE Labeling Machine will suit businesses that label from 150,000 up to 1,000,000+ containers per year. For container diameters larger than 55mm (2 1/8 inch).

High throughput, high production with our guaranteed label accuracy. This versatile industrial machine with reduce your double handling by at least 3 times. Straight out of the box you can be labeling within 4 minutes on any product. Simply said, the BenchDELUXE Labeling Machine will comfortably apply any type of label on any round container.

  • Labels any round container: will comfortably apply any type of label on any round container (50mm+ diameter).
  • Increase your capacity: flexibility to meet short run packaging needs, while capable of labeling millions of products.
  • Quality: Great Engineering manufacture & assembles every machine in-house, so you can be 100% confident that your BenchDELUXE will never break down in your most critical production times.

Technical Specifications

Compatible Containers– Round
Compatible Container Diameter– Minimum 50mm (1.97″)
– Maximum 110mm (4.33″) standard
– Maximum 220mm (8.66″) with our removable or extended handle.
BenchMARK Weight– 33kg (72.75lbs)
BenchMARK Dimensions– Length: 59cm (23.23”)
– Width: 61cm (24.02”)
– Height: 44cm (17.32”)
BenchMARK Materials– Anodized 6061 Aluminum
– Food grade Stainless steel shafts and bolts
Compatible Label Types– Single label, front, & back
– Pressure sensitive
– Die cut
– Roll formatted
– Fan folded
– Opaque/Clear/Translucent
Compatible Label Sizes– Thickness: min. 0.02mm (0.001”)
– Length: min 25mm (0.98”)
– Height: min 10mm (0.39”) to max 230mm (9.06”)
– Direction: Left hand leading edge
– Direction: Internal wound
– Direction: External wound
Label Roll
– Diameter: max 300mm (11.81”)
– Core diameter: min. 38mm (1.50”) and max. 76m (2.99”)
Sensor– On edge, no registration mark is required.
