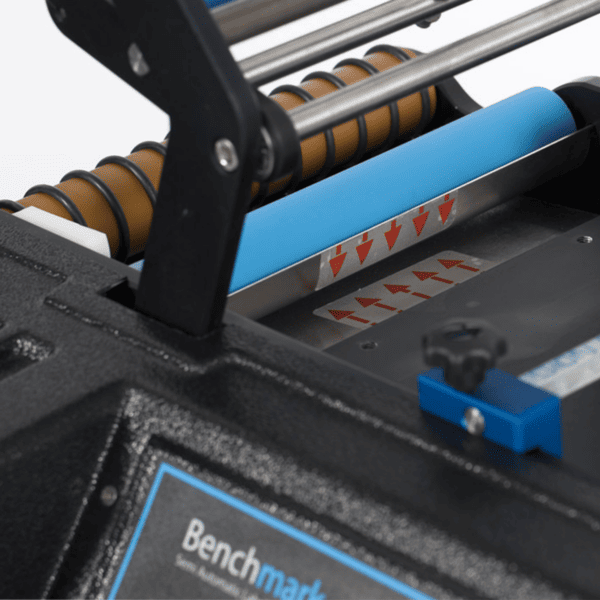

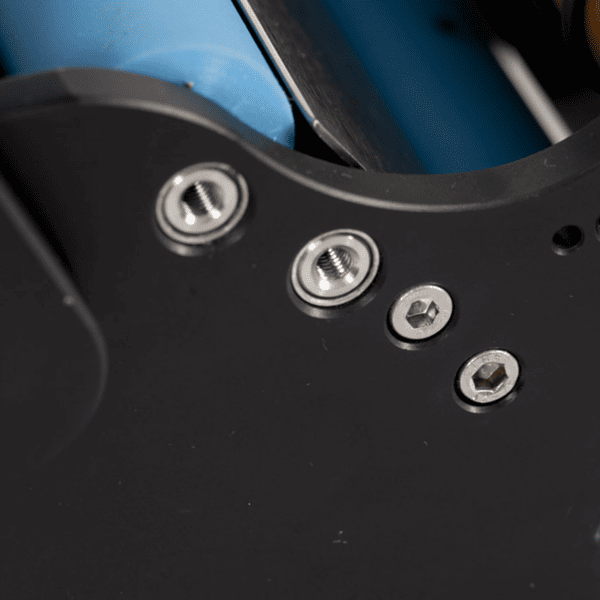

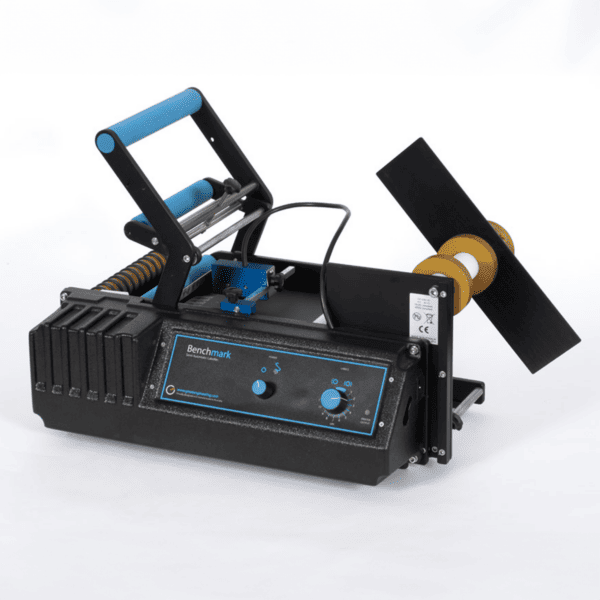

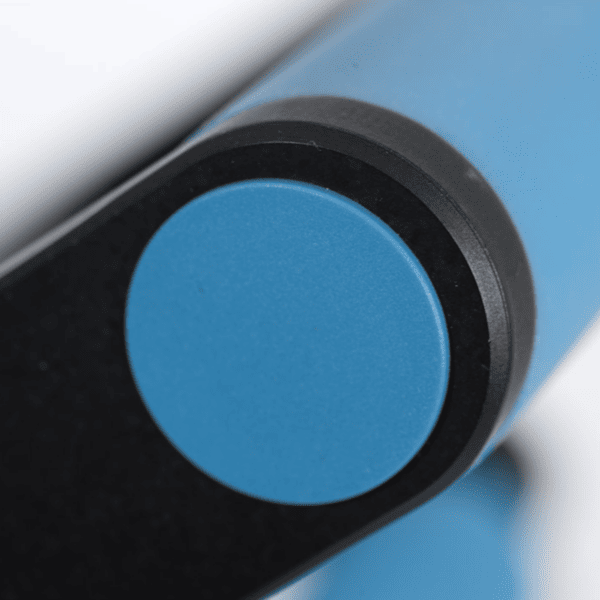

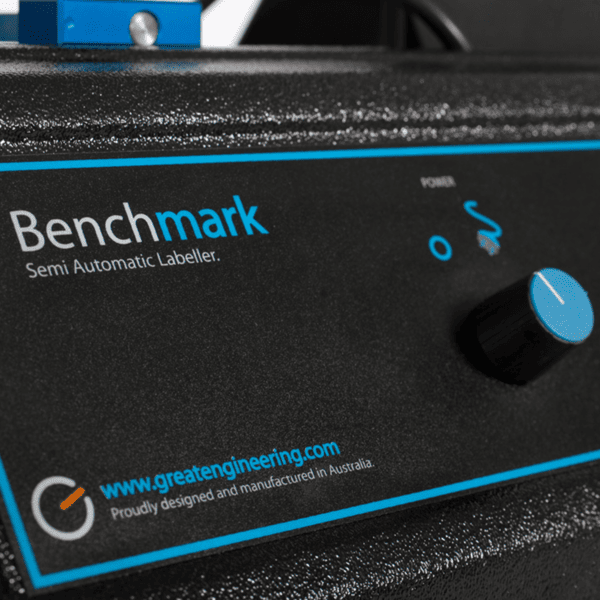

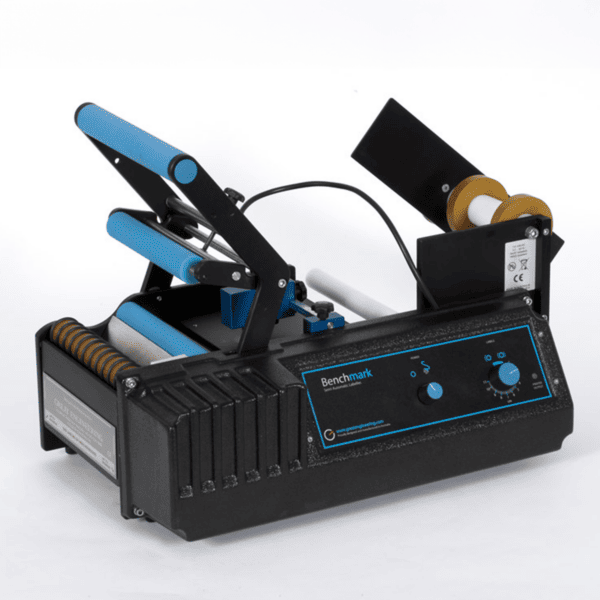

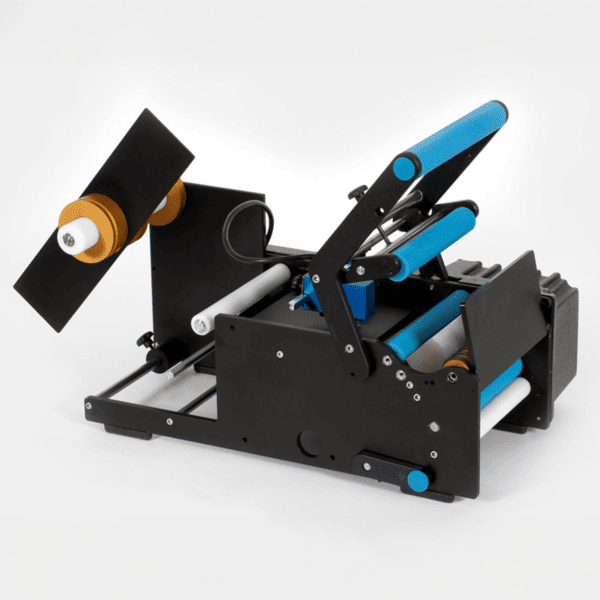

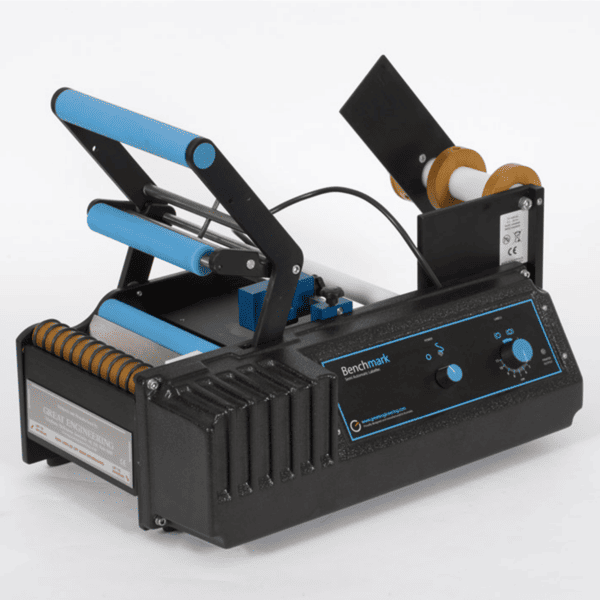

Great Engineering BenchMARK Semi-Automatic Labeling Machine

The new BenchMARK Semi Automatic Labeling Applicator is the perfect labelling machine for any growing startup. 25% faster than its’ predecessor and 50mm wider, it now labels a larger range of bottles, cans, jars & cylinders.

Share On:

Product Description

The BenchMARK Labeling Machine will suit businesses that label from 50,000 up to 250,000+ containers per year. Suitable for container diameters larger than 55mm (2 1/8 inch).

Level up the quality & presentation of your products with perfectly straight labels every time. Simply dial in the distance between front and back labels, and take operator error out of the equation for good. The BenchMARK Labeling Machine is a proven workhorse and the strongest, most reliable in its class. Simply said, the BenchMARK will comfortably any type of label on any round container.

  • Labels any round container: will comfortably apply any type of label on any round container (55mm+ diameter).
  • Quality: Great Engineering manufactures & assembles every machine in-house, so you can be 100% confident that your BenchMARK will never break down in your most critical production times.



Technical Specifications

Compatible Containers– Round
Compatible Container Diameter– Minimum 50mm (1.97″)
– Maximum 110mm (4.33″) standard
BenchMARK Weight– 33kg (72.75lbs)
BenchMARK Dimensions– Length: 61cm (24.02”)
– Width: 59cm (23.23”)
– Height: 44cm (17.32”)
BenchMARK Materials– Anodized 6061 Aluminum
– Food grade Stainless steel shafts and bolts
Compatible Label Types– Single label, front, & back
– Pressure sensitive
– Die cut
– Roll formatted
– Fan folded
– Opaque/Clear/Translucent
Compatible Label Sizes– Thickness: min. 0.02mm (0.001”)
– Length: min 25mm (0.98”)
– Height: min 10mm (0.39”) to max 230mm (9.06”)
– Direction: Left hand leading edge
– Direction: Internal wound
– Direction: External wound
Label Roll
– Diameter: max 300mm (11.81”)
– Core diameter: min. 38mm (1.50”) and max. 76m (2.99”)
Sensor– On edge, no registration mark is required.



We’re a supplier to the commercial winery, brewery, cidery & distillery industries across Canada & North America. Please fill in the form below to contact our in-house sales consultants. We’ll get back to you within 1-2 working days.
