Fibroxcel 10 – 20kg

Product Description

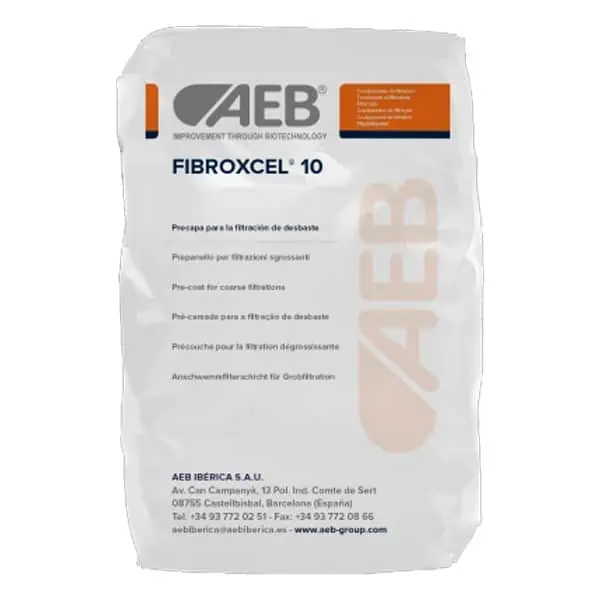

FIBROXCEL 10

• Permeability = 160L (40 gallons)/m2/minute.
• Fibroxcel 10 should be used in a variable dose between 0.8 and 1kg (1.7-2.2lb)/m2 of filtering surface for building up the pre-coat, or in variable doses between 20 and 80 g/hL (1.5-6 lb/1,000 gallons) for the body feed filtration.
• The preparation for Fibroxcel 10 is produced with a technological system enabling it to obtain a perfect homogeneity amongst the different components through the use of special mixers equipped with rotating blades in a cyclone of air.
• This ensures the incorporation of the perlites amongst the cotton and the cellulose fibers.
• Used as a precoat, it avoids two big filtration issues related to the fast compression of basic filtration media by high flow pressure.
• 1-Loss of product: Formation of close cells in the cake that retain product
• 2-Plugging: Pores in the filter are rapidly closed by compression.
• Fibroxcel stretches the filtration cycle by creating a soft cake that slows down the raise of high pressure differential.

FIBROXCEL 30

• Permeability = 60-80L (15-20 gallons)/m2/minute.
• Dosage: 0.5-1 kg (1-2.2lb)/m2 of filtering area for the formation of the precoat.
• 20 and 80 g/hL (1.5-6 lb/1,000 gallons) for the body feed filtration.
• The preparation for Fibroxcel 30 is produced with a technological system enabling it to obtain a perfect homogeneity amongst the different components through the use of special mixers equipped with rotating blades in a cyclone of air.
• This ensures the incorporation of the perlites amongst the cotton and the cellulose fibers.Used as a precoat, it avoids two big filtration issues related to the fast compression of basic filtration media by high flow pressure.
• 1-Loss of product: Formation of close cells in the cake that retain product
• 2-Plugging: Pores in the filter are rapidly closed by compression.
• Fibroxcel stretches the filtration cycle by creating a soft cake that slows down the raise of high pressure differential.

ADVANTAGES OF FIBROXCEL

• The charged fibers will positively filter charged molecules ensuring that filtration begins before the actual cake itself is fully functional.
• Fibroxcel by softening the cake prevents compression and therefore the restriction of the pores.
• By keeping earths separated with fibers and cellulose, Fibroxcelprevents the formation of closed cells (filled with wine) inside the cake, helping prevent loss of liquid.
• Materials used in different percentages for each Fibroxcelproduct: perlite free from silica, E460 Cellulose, cotton short fibers.
