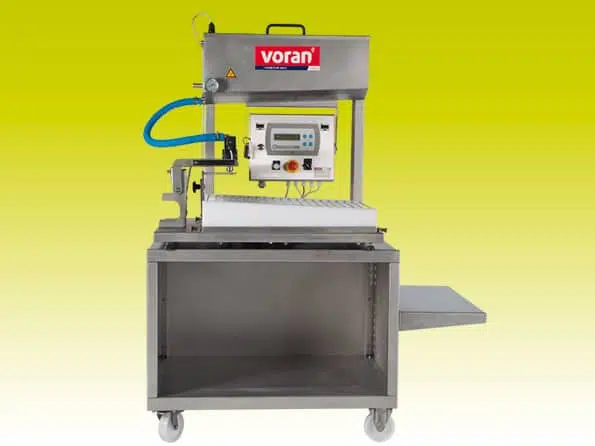

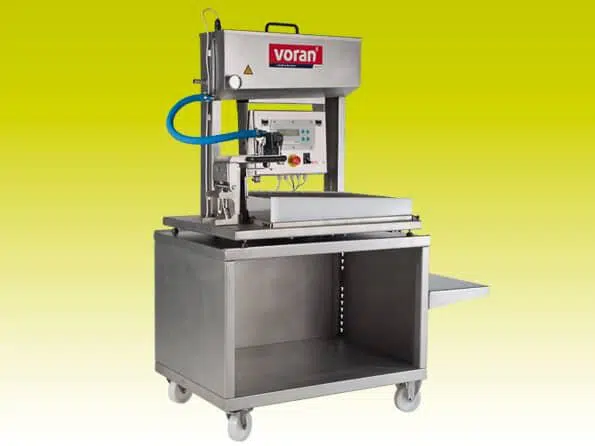

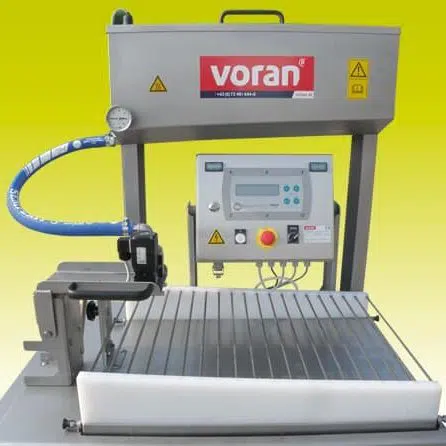

Bag-in-Box filling machine MBF500
Manual Bag in Box filling system with feed line vessel for hot filling of fruit and vegetable juice in 3, 5, 10 and 20 l standard Bags.
Product Documents
Download PDF
Product Description
Manual Bag in Box filling system with feed line vessel for hot filling of fruit and vegetable juice in 3, 5, 10 and 20 l standard Bags.
TECHNICAL DATA
| Nominal rating l/h | 500 (with 10l Bags) l/h l/h |
| Connected load | 230V 50Hz (single-phase) |
| Electrical protection | 13 A |
| Length | 930 mm |
| Width | 700 mm |
| Height | 925 mm |
| Weight | 70 kg |
| Material | 1.4301 / AISI 304 |
| Filling accuracy | ± 0,5 % |
| Connection for juice inlet | Ø21,3 |
| Juice vessel | 40 l |
| Scope of supply | incl. cleaning adapter |
