Voran Machinery

Bag-in-Box filling machine MBF750

Sorry, this product is not available in your country.

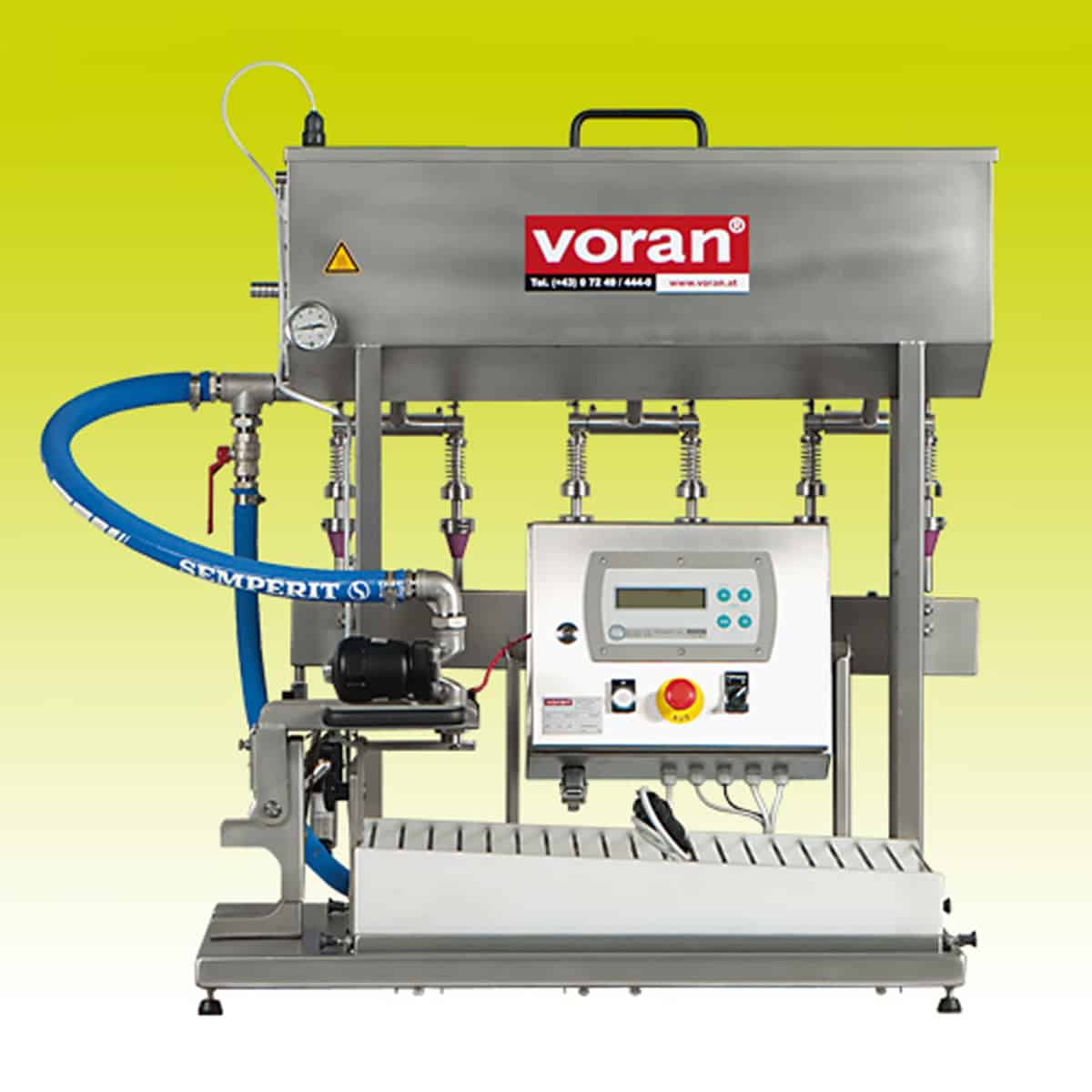

Manual Bag in Box filling system with feed line vessel for hot filling of fruit and vegetable juice in 3, 5, 10 and 20 l standard Bags. (Pictures with 6-positions line filler)

Product Documents

Sorry, this product is unavailable or Cellar-Tek is not the distributor in your country. (We cater to Canada & North America.) Please feel free to inquire about local distribution contact information.
Share On:

Product Description

Manual Bag in Box filling system with feed line vessel for hot filling of fruit and vegetable juice in 3, 5, 10 and 20 l standard Bags. (Pictures with 6-positions line filler)

TECHNICAL DATA

Nominal rating l/h750 (with 10l Bags) l/h
Connected load230V 50Hz (single-phase)
Electrical protection16 A
Length1030 mm
Width800 mm
Height1080 mm
Weight85 kg
Material1.4301 / AISI 304
Filling accuracy± 0,5 %
Compressed air connection6 bar
Connection for juice inletØ21,3
Juice vessel58 l
Scope of supplyincl. cleaning adapter
