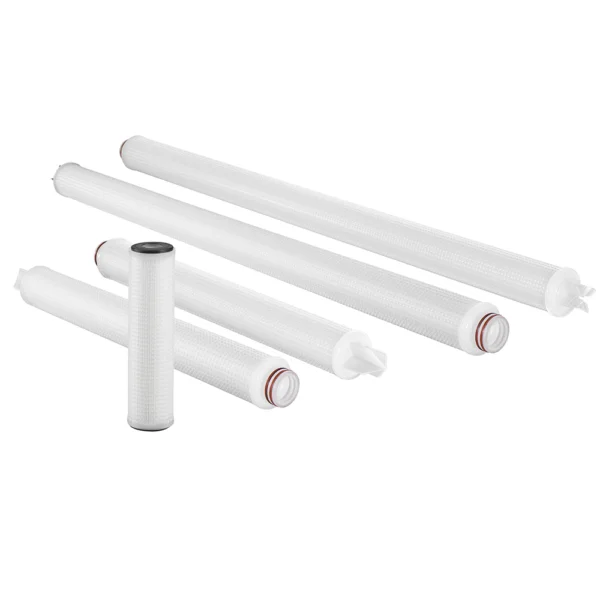

Parker 30″ Poly-Mate X Filter Cartridges

Parker Poly-Mate X Cartridges incorporate a unique combination of polypropylene melt blown and spun-bonded media to provide high surface area, finish-free and non-fibre releasing filtration. All-polypropylene construction with a robust extruded cage design maximizes chemical resistance to acids, bases, salts, and most organic solvents. Poly-Mate X Pleated Cartridges are available in 0.5μm, 1μm, 5μm, 10μm, 30μm, and 60μm pore sizes.

Benefits

• High efficiency rated for critical process applications (99% at stated micron rating)
• High pleated surface area for extended service life, low-pressure drop and high flow capacity
• Available with glass-filled polypropylene or stainless-steel cores for high-temperature and high-pressure applications
• Rigid outer cage design supports media for back washable applications to extend filter life and reduce maintenance costs
• Optional stainless-steel O-ring adapter inserts provide added strength for in situ steam sterilization
• All materials of construction are FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21
• Certified NSF/ANSI/CAN 61
• Conforms to NSF/ANSI 53
• Continuous length up to 40 inches
• All thermally welded construction assures product quality and process compatibility

Applications

• Beverages
• Plating
• Photographic Chemicals
• Fine Chemicals
• High-Technology Coatings
• Process Water
• Deionized Water
• R.O. Membrane Pre-filtration

Technical Specifications

• Seal Material: Silicone
• End Cap Configuration:226 O-Ring/Fin
• Core: Polypropylene
• Length: 30″
• Brand: Parker
• Division: Bioscience & Water Filtration
• Industry: Industrial, Food and Beverage, Inks, Paints and Coatings
• Application: Filtration
• Technology: Liquid Filtration
• Product Type: Filter Cartridge
• Specifications Met: FDA CFR Title 21, NSF/ANSI/CAN 61
• Flow Rate:10 GPM Max. per 10inch length
• Function: Clarification/Prefiltration/Polishing
• Media: Polypropylene
• Filter Construction: Pleated Depth
• Filter Efficiency Rating: 99% at 0.5µm, 1µm, 5µm, 10µm, 30µm, and 60µm pore sizes
• Outside Diameter: 2 ½ in. (63.5 mm)
• Inside Diameter: 1 in. (25.4 mm)
• Filter Area: Up to 6.0 ft2/10 in (0.6m2/254 mm)
• Cage Material: Polypropylene
• Optional Seal Material: Buna-N / EPR / Silicone / Viton / PFA Encapsulated Viton / Polyethylene foam
• Changeout Pressure Differential: 35 psi (2.4 bar)
• Backwash Flow Rate: 1.5-2 times the process flow rate without exceeding 10 psid (0.7 bar)
• Maximum Operating Temperature: 200°F (93°C)
