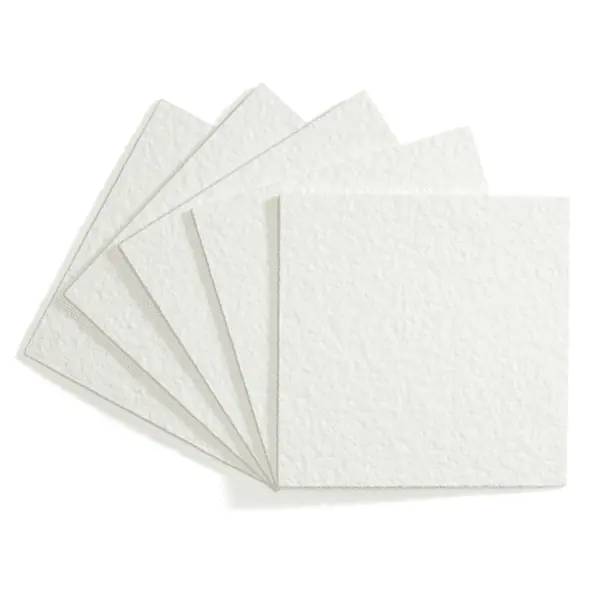

Filtrox 60×60 Filter Sheets

Description

Characteristics

FibraFix depth filter sheets represent an approved and established filtration technology for solid-liquid separation. The three-dimensional medium assures superior retention capacity for solid particles at a high flow rate.

The pore sizes can be fine enough to retain bacteria and thus produce a sterile liquid (logarithmic retention of bacteria up to LrV 8). The dirt holding capacity of a FibraFix depth filter sheet can be up to 4 kg per m2. In the filtration process, solid particles are slowed down and eventually retained by the tortuous path inside the filter sheet and by electrokinetical interactions (zeta potential). Through this unique mechanism, a high capacity (long lifetime of the filter until plugging) can be achieved.

All materials are food-grade and FDA-approved.

Applications

The broad variety of available porosities allows for their use in a wide range of applications. Porosity grades are available from coarse over fine to germ-reducing and germ-removing filtration (sterile filtration). Examples of industries:

• Beverage (beer, wine, spirits, juice…)
• Biotech
• Cosmetics
• Enzymes
• Fine chemicals
• Herbal or other natural extracts
• Inks, paints and glue
• Pharmaceutical intermediates
• Process water
• Solvents

Quality assurance

The filter sheets are manufactured under controlled conditions, to guarantee the highest expectations in terms of quality and cleanliness. Measurement methods are described in the corresponding validation guide for filter sheets.

FILTROX filter sheets fulfil the following requirements:

• Recommendation XXXVI/1 of the Federal Institute for Risk Assessment (Bundesinstitut für Risikobewertung, BfR)
• Test criteria of the FDA (US Food and Drug Administration) CFR 21 section 177.2260 (as applicable)
• Biological Safety: USP Plastic Class VI compliance, Hemolysis, Cytotoxicity Quality checks meet international standards:

• ISO 9001 (quality management)
• ISO 14001 (environmental management)
• ISO 22000 (food safety)
• Kosher certificate
• FDA Drug Master file: DMF #16418
