Spadoni

Horizontal Screens DE Filter (2-5 sq. m.) DCBL - Beer

Add to your wislist Horizontal Screens DE Filter (2-5 sq. m.) DCBL - Beer

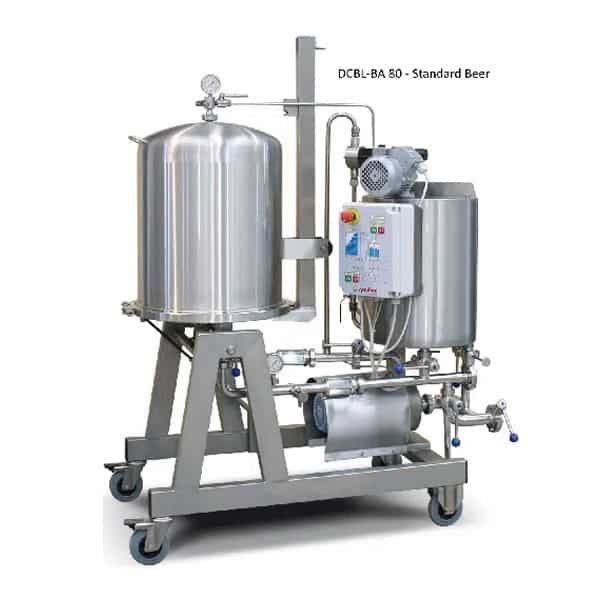

HORIZONTAL SCREENS DE FILTER (2-5 sq. m.) – DCBL-BA / BEER

Models: DCBL-BA 50/80/100/125

FEATURES:

  • SS304 construction throughout
  • Manufactured by SPADONI MECCANICA in Orvieto, Italy since 1951
  • Manual spent DE discharge
  • 1.5”TC or DN40 inlet/outlet connections with butterfly valves
  • Compact design with castors for easy mobility
  • 60 micron screens
  • Adjustable output SS304 stainless steel dosing pump
  • Integrated DE mixing paddle in dosing tank
  • Centrifugal feed pump with integrated stainless steel splash guard
  • Inlet and outlet lighted sight glasses
  • SS304 Sampling Valve
  • Patented tilting design of the bell housing which slides open on a shaft and is supported with a shock absorber (not required on DCBL/50)
  • Bell housing inlet pressure gauge
  • Outlet pressure gauge
  • SS304 stainless steel screen spacers
  • Pressure relief valve
  • Residual filter screen for filtering contents of bell housing at the end of filtration runs
  • TC style bell housing closure clamp
  • SS304 stainless steel bell housing overflow return line to dosing tank
  • Flow meter
  • Splash-proof sealed stainless steel control box
  • 1 year parts warranty
  • Spare parts in stock

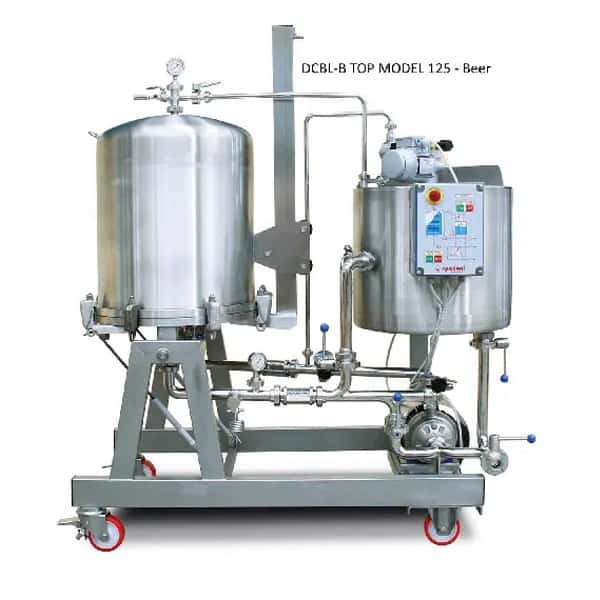

HORIZONTAL SCREENS DE FILTER (2-5 sq. m.) – DCBL-B TOP MODEL FOR BEER

Models: DCBL-B TOP 50/80/100/125

FEATURES:

  • ALL OF FEATURES OF THE DCBL-BA MODEL PLUS THE FOLLOWING:
  • 60 micron screens with upturned outside edges to prevent DE cake break away
  • Diaphragm DN40 pressure gauges
  • No tee intersections of tubing for less turbulent flow inside the filter
  • SS304 pigtail-style sampling valve
  • Rathman-style closure clamps on bell housing standard
Options Available

HORIZONTAL SCREENS DE FILTER (2-5 sq. m.) – DCBL-BA / BEER

  • SS316 construction
  • SS304 trolley for spent DE & residual liquid collection (Designed to roll under the tilted bell housing during cleaning)
  • Rathman clamps for bell housing closure fastening

HORIZONTAL SCREENS DE FILTER (2-5 sq. m.) – DCBL-B TOP MODEL FOR BEER

  • ALL OF FEATURES OF THE DCBL-BA MODEL PLUS THE FOLLOWING:
  • 60 micron screens with upturned outside edges to prevent DE cake break away
  • Diaphragm DN40 pressure gauges
  • No tee intersections of tubing for less turbulent flow inside the filter
  • SS304 pigtail-style sampling valve
  • Rathman-style closure clamps on bell housing standard
