Horizontal Screens DE Filter (2-6 sq. m.) DCBL – Wine & Cider
DE Horizontal Screen Filters – Wine & Cider – 2 -6 sq. meter
Product Description
HORIZONTAL SCREENS DE FILTER (2-6 sq. m.) – DCBL / WINE/CIDER

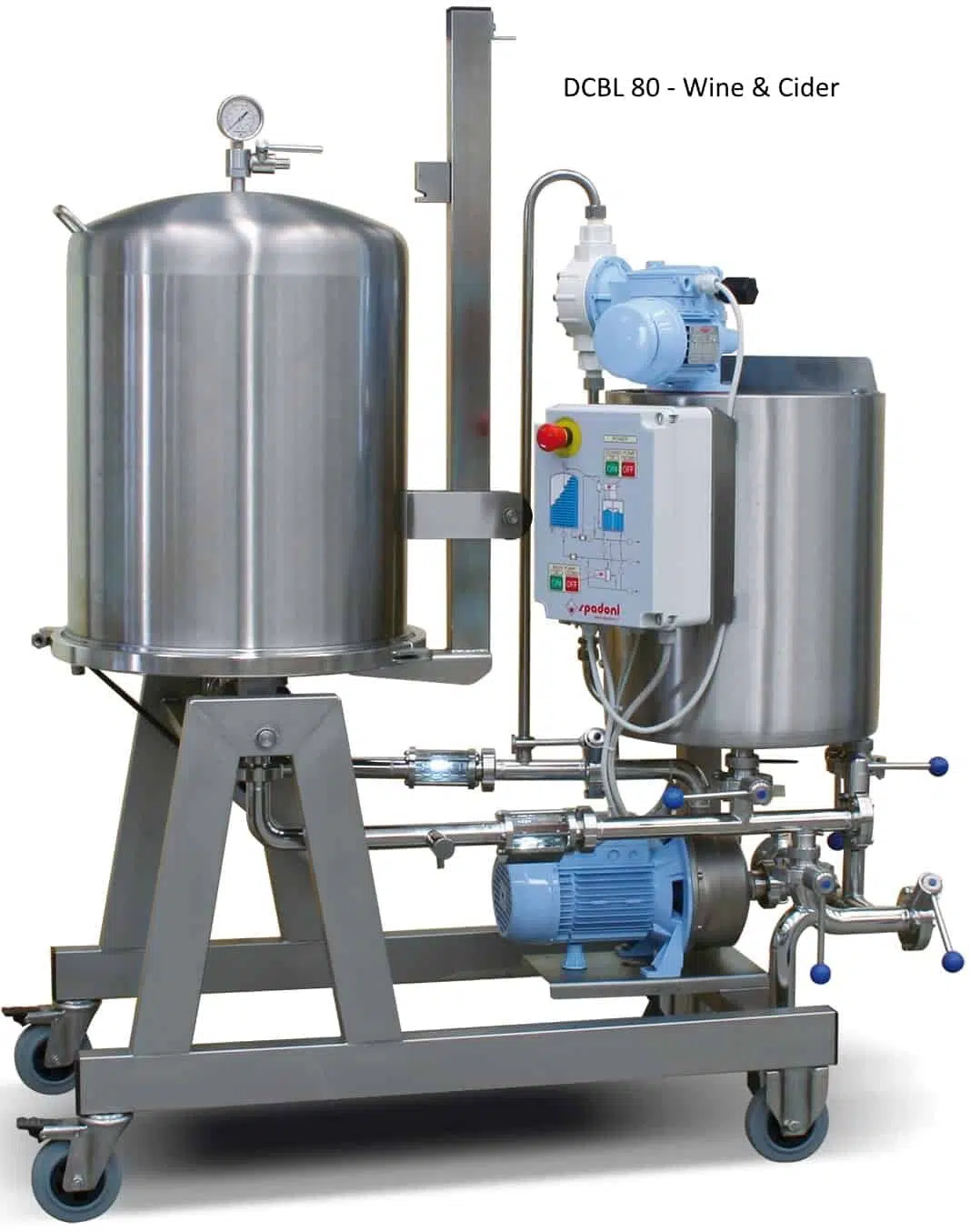

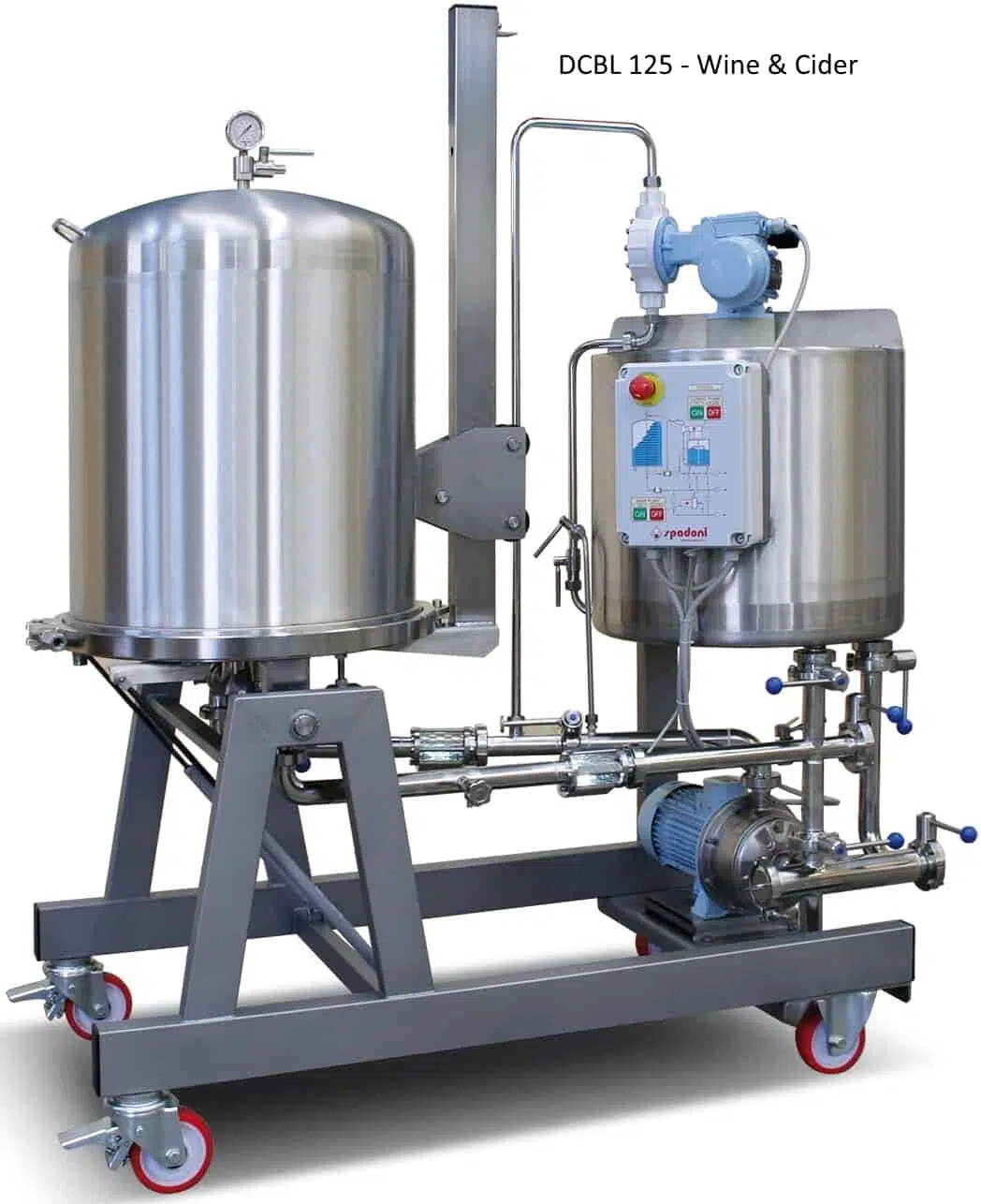

Models: DCBL 50/80/100/125/150
FEATURES:
- Manufactured by SPADONI MECCANICA in Orvieto, Italy since 1951
- SS304 construction throughout
- Manual spent DE discharge
- 1.5”TC or DN40 inlet/outlet connections with butterfly valves
- Compact design with castors for easy mobility
- 80 micron screens
- Adjustable output diaphragm dosing pump
- Integrated DE mixing paddle in dosing tank
- Centrifugal feed pump
- Inlet and outlet lighted sight glasses
- SS304 Sampling valve

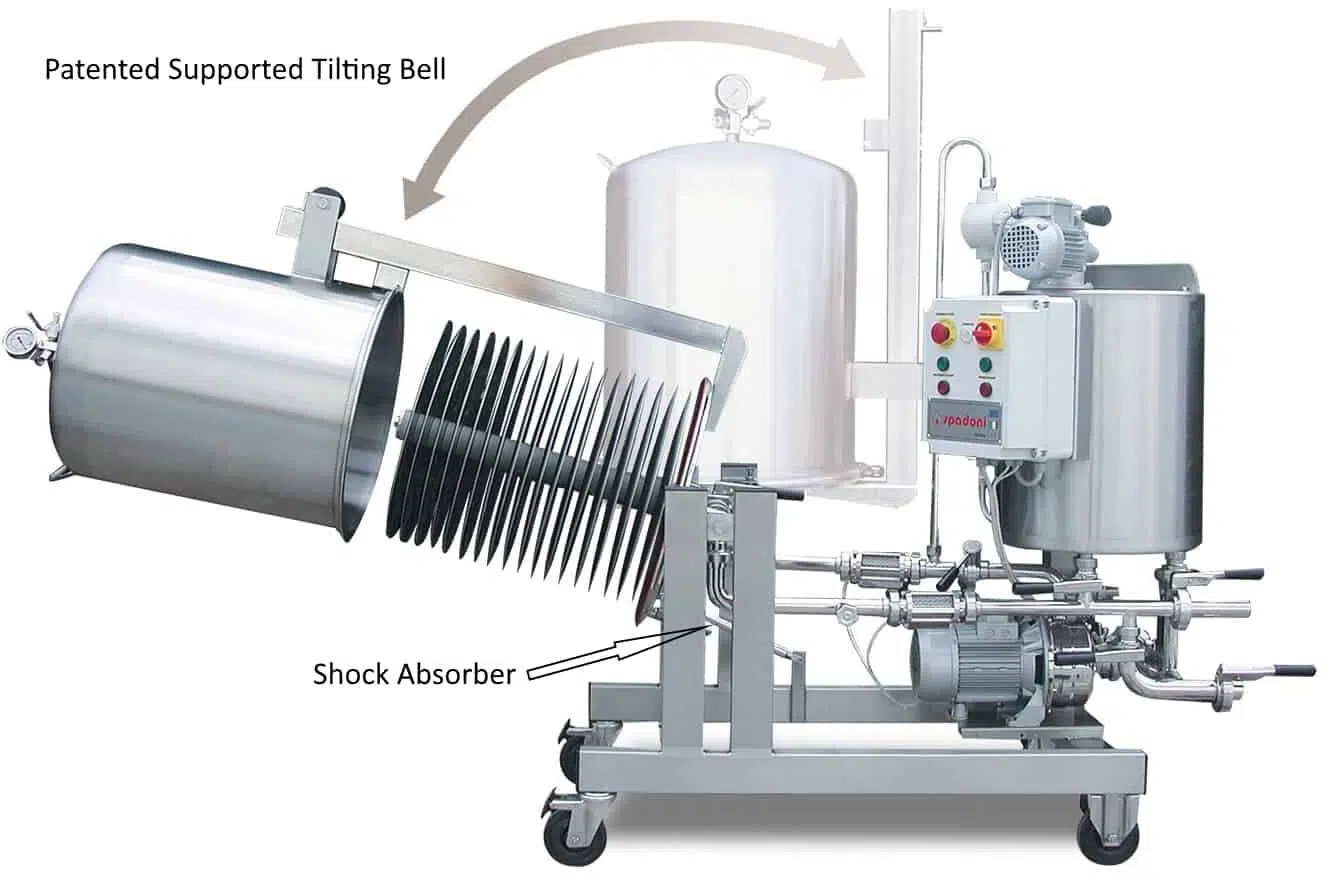

- Patented tilting design of the bell housing which slides open on a shaft and is supported with a shock absorber (not required on DCBL/50)
- Bell housing pressure gauge
- PP screen spacers
- Pressure relief valve
- Residual filter screen for filtering contents of bell housing at the end of filtration runs
- TC style bell housing closure clamp
- Bell housing overflow return line to dosing tank
- Flow meter
- Splash-proof sealed stainless steel control box
- 1 year parts warranty
- Spare parts in stock
Additional Information

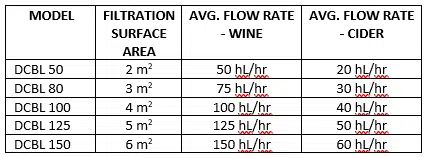

| OPTIONS AVAILABLE | • SS316 construction • SS304 trolley for spent DE & residual liquid collection (Designed to roll under the tilted bell housing during cleaning) • Rathman clamps for bell housing closure fastening • Single phase motor for DCBL 50 & DCBL 80 • Sparkling wine filtration upgrade • SS304 screen spacers • Sizes: DCBL-50: 2 sq. m, DCBL-80: 3 sq. m, DCBL-100: 4 sq. m, DCBL-125: 5 sq. m, DCBL-150: 6 sq. |
|---|
