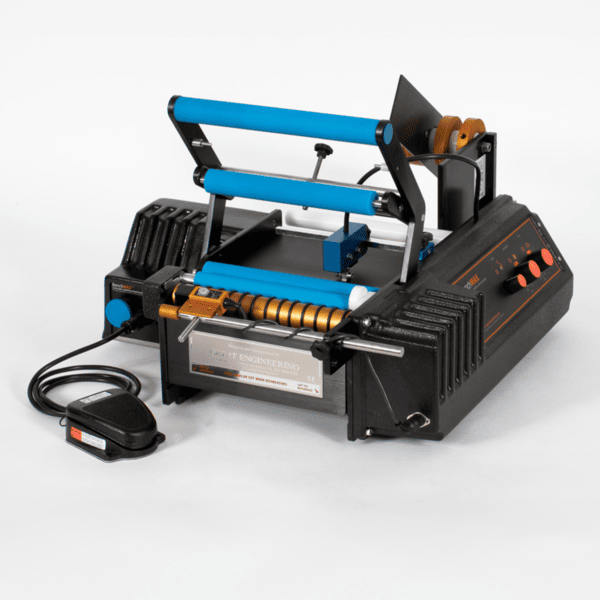

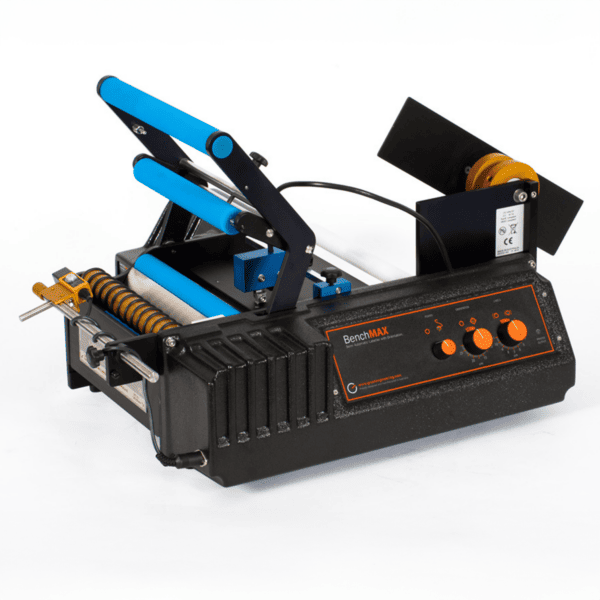

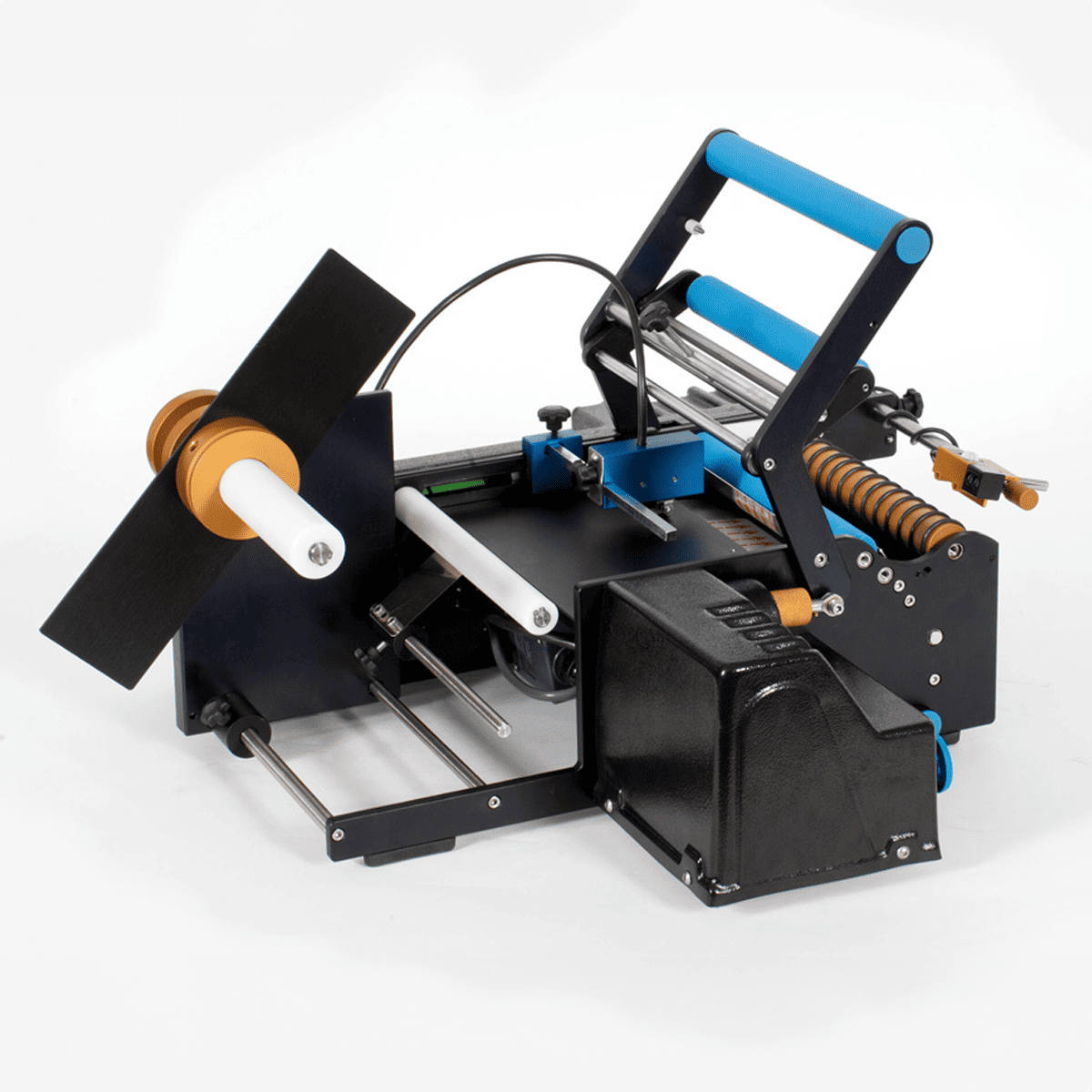

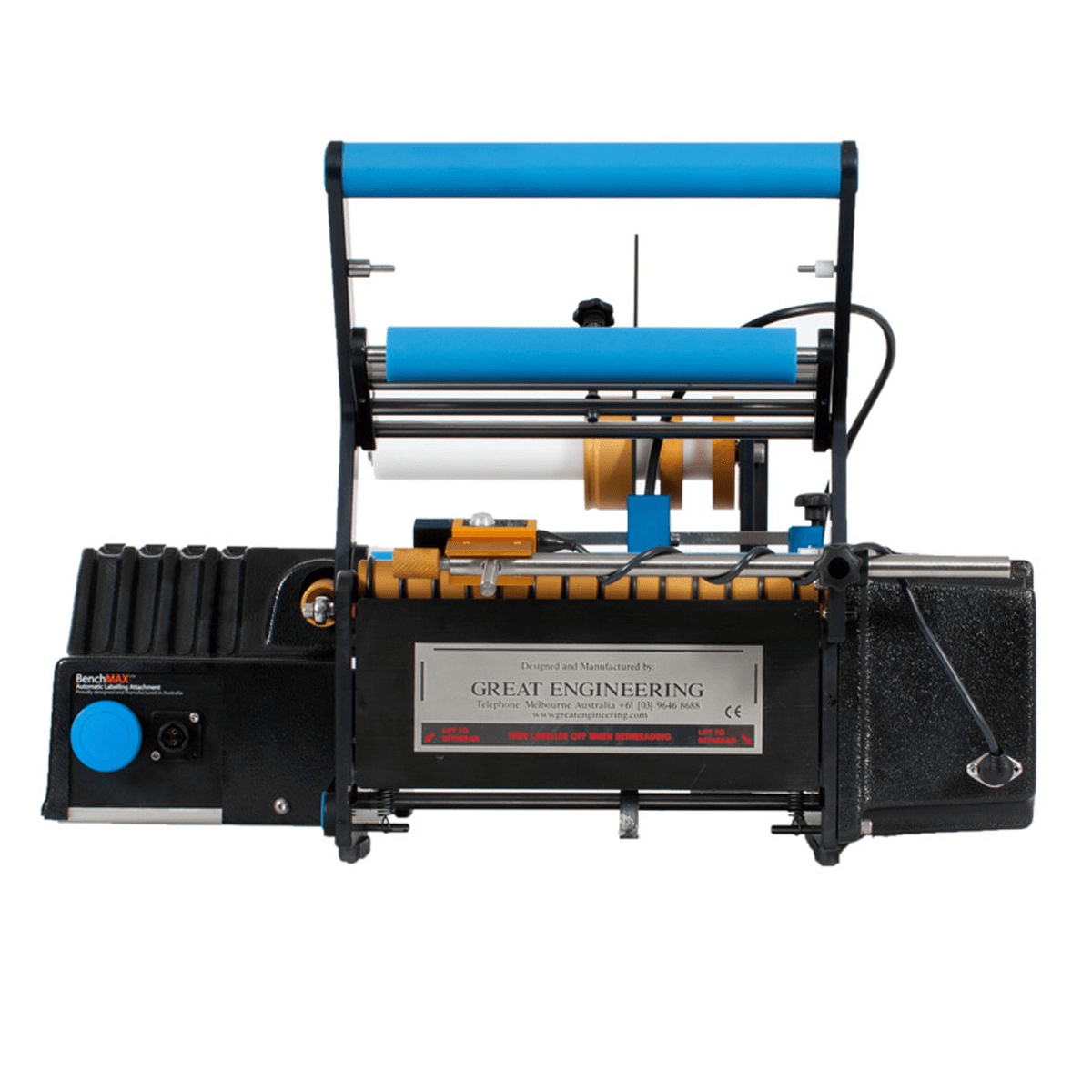

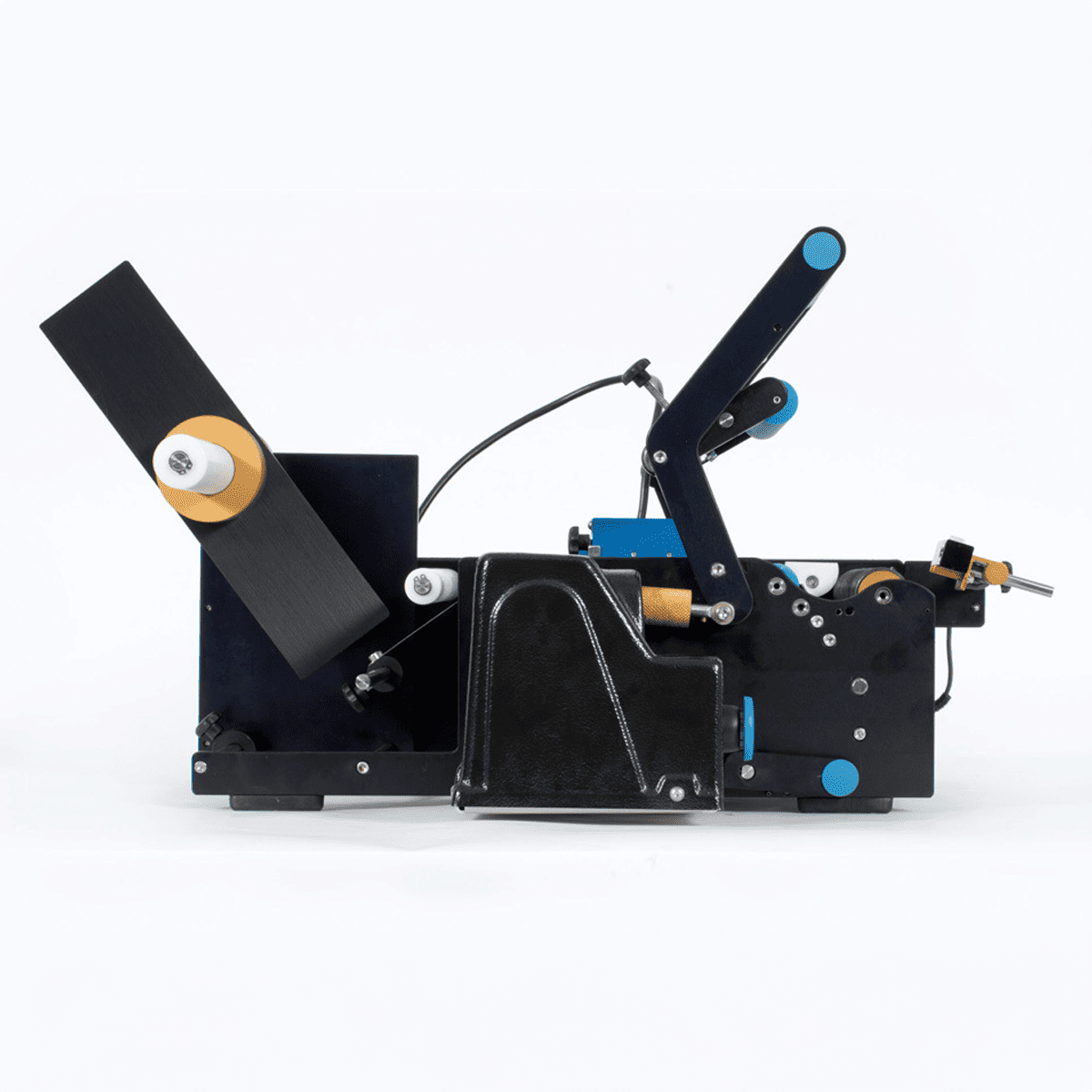

Great Engineering BenchMAX Semi-Automatic Labeling Machine

Sorry, this product is not available in your country.

Increase productivity, reduce costs and enhance your product presentation with our top-of-the-line label applicator machine.

Sorry, this product is unavailable or Cellar-Tek is not the distributor in your country. (We cater to Canada & North America.) Please feel free to inquire about local distribution contact information.
Share On:

Product Description

The BenchMAX Labeling Machine will suit businesses that label from 150,000 up to 1,000,000+ containers per year. Suitable for all container diameters larger than 8mm (3/8 inch).

Fast & reliable, accurate and flexible, it can label any round container, from 8mm (3/8″) to 250mm (9.8″) diameter. Easy-to-use straight out of the box, you can be labelling within 4 minutes!

The BenchMAX is the most accurate labelling machine in the world – it will orientate any label perfectly no matter what the challenge.

This production game-changer will also integrate with any printer in the world to allow you to print and apply labels, in-house and on-demand. No longer will you need to tie up thousands of dollars holding label stock, or wait for your stock to be delivered.

  • Labels any round container: Apply labels on any round container from 8mm (3/8″) diameter.
  • Increase your capacity: flexibility to meet short-run packaging needs, while capable of labelling millions of products.
  • Orientation comes standard: the unique orientation feature comes standard, ensuring repeatable and accurate over-labelling.
  • Quality: Great Engineering manufactures & assembles every machine in-house, so you can be 100% confident that your BenchMAX will never break down in your most critical production times.

Unique features of BenchMax:

  • Operation attachment: Automatically aligns the container in the same position for accurate label placement.
  • Automatic attachment: Automatically feeds labels into the machine.
  • Small container adapter: Allows smaller diameter containers to be labelled.
  • Extended handle: Will only label large containers from 110mm (4.3 in)- 220mm (8.66 in) in diameter (if needing to label empty).
  • Removable handle: Works the same as the standard handle for containers up to 110mm (4.3 in), in diameter. It can be removed for larger containers that are pre-filled.



Technical Specifications

Compatible Containers– Round and Semi-round
Compatible Container Diameter– Minimum 8mm (0.31″)
– Maximum 110mm (4.33″) standard
– Maximum 250mm (9.84″) with our removable or extended handle.
BenchMARK Weight– 33kg (72.75lbs)
BenchMARK Dimensions– Length: 61cm (24.02”)
– Width: 59cm (23.23”)
– Height: 44cm (17.32”)

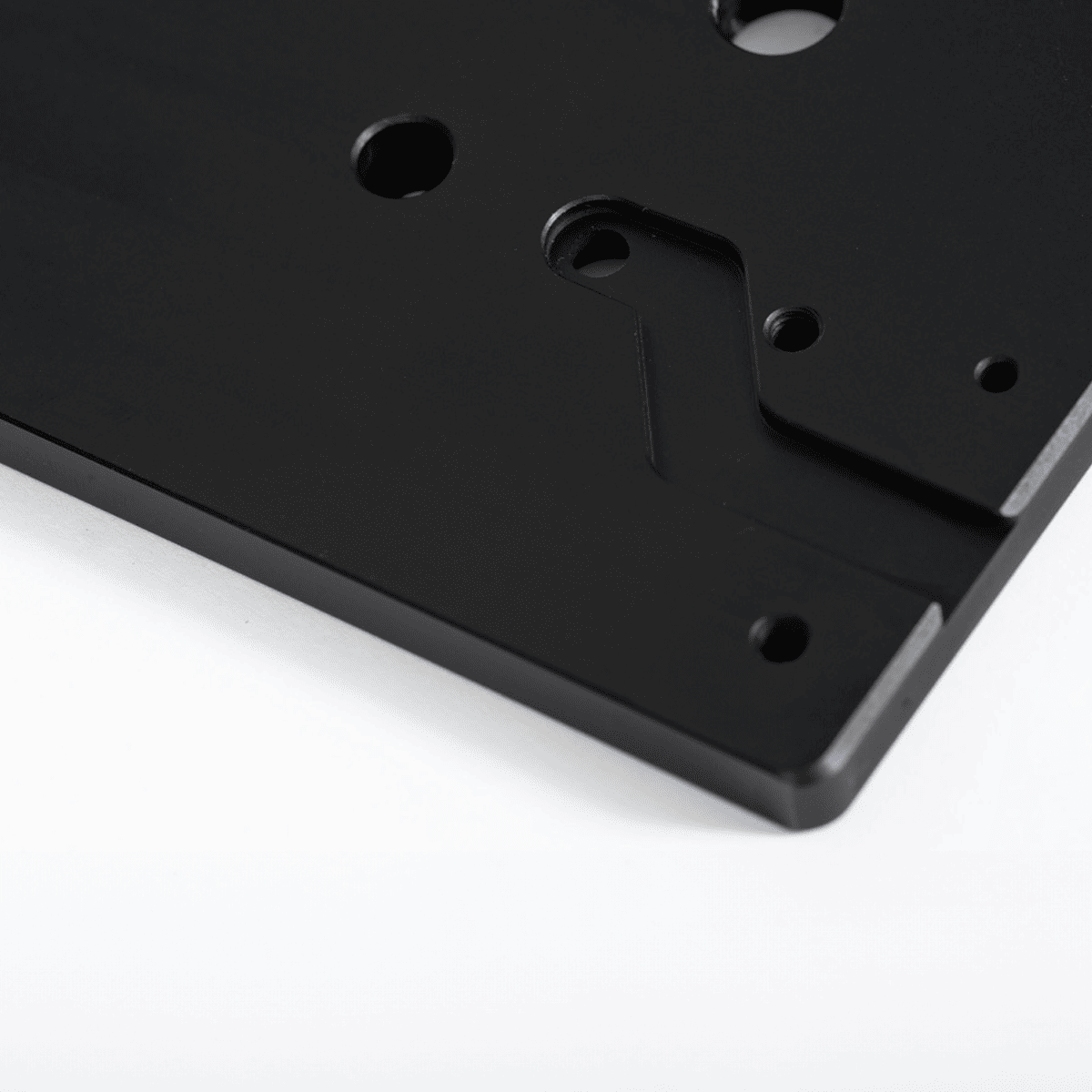

BenchMARK Materials– Anodized 6061 Aluminum
– Food grade Stainless steel shafts and bolts
Compatible Label Types– Single label, front, & back
– Pressure sensitive
– Die cut
– Roll formatted
– Fan folded
– Opaque/Clear/Translucent
Compatible Label Sizes– Thickness: min. 0.02mm (0.001”)
– Length: min 25mm (0.98”)
– Height: min 10mm (0.39”) to max 230mm (9.06”)
– Direction: Left hand leading edge

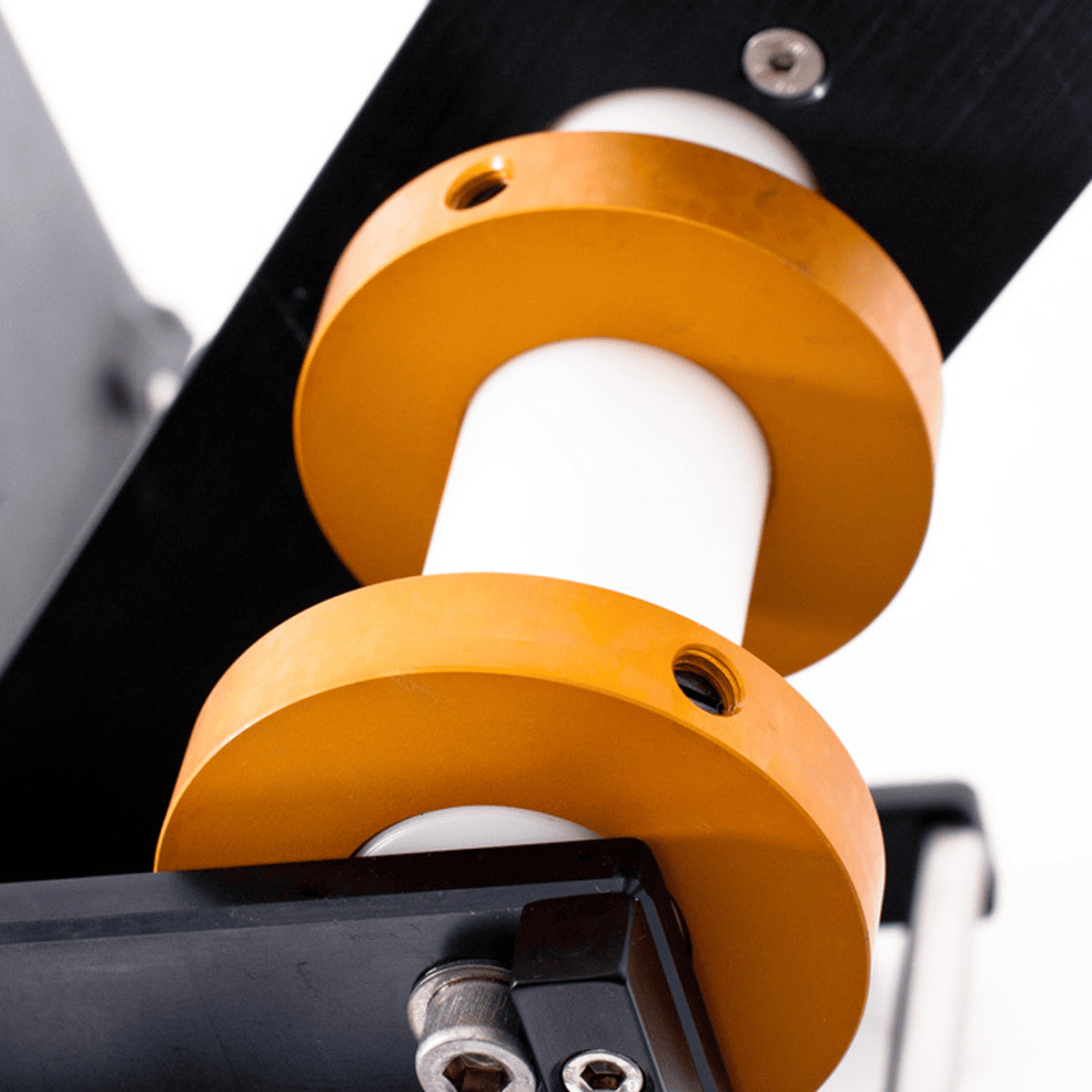

Label Roll
– Diameter: max 300mm (11.81”)
– Core diameter: min. 38mm (1.50”) and max. 76m (2.99”)
Label Waste– 13cm (5.12”) per roll

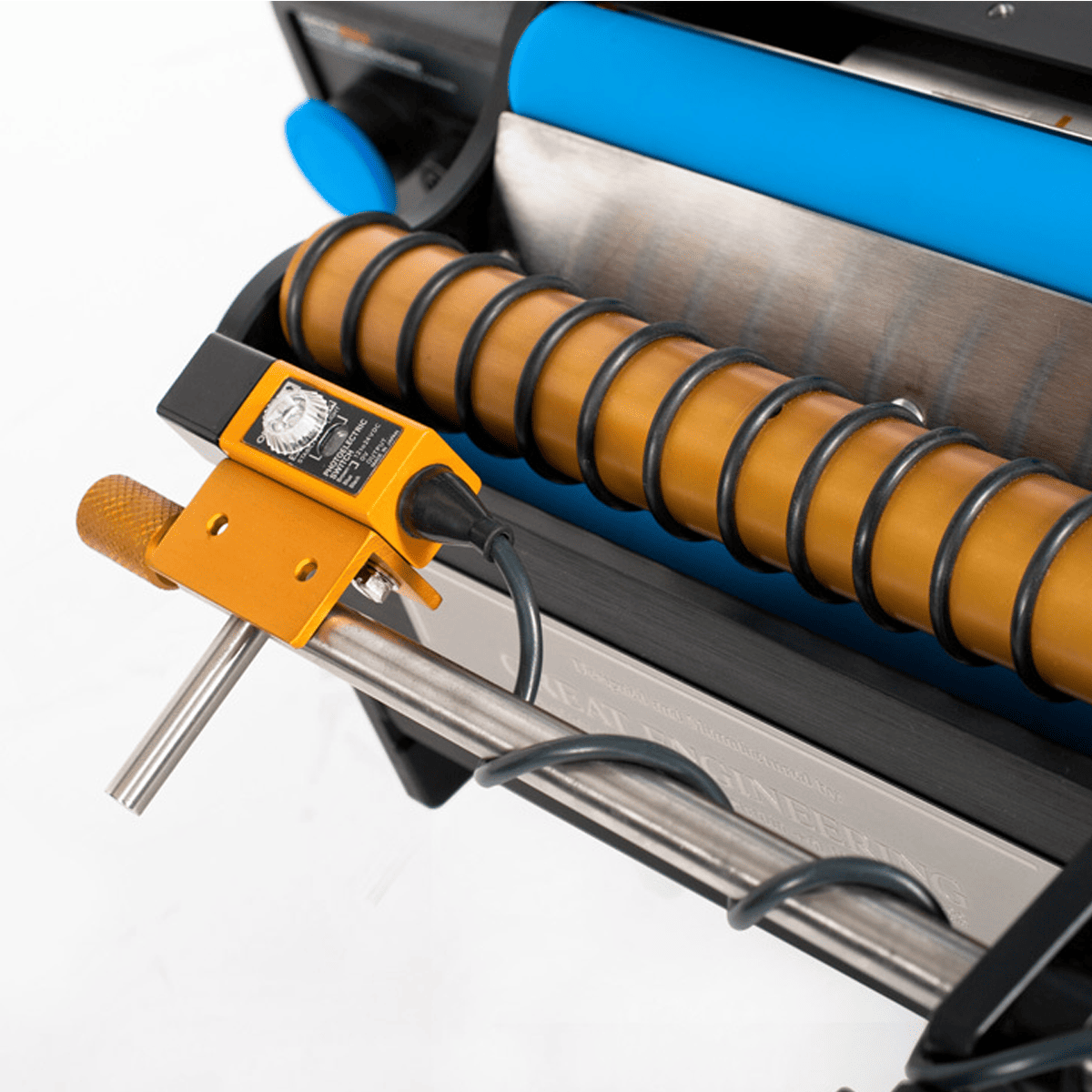

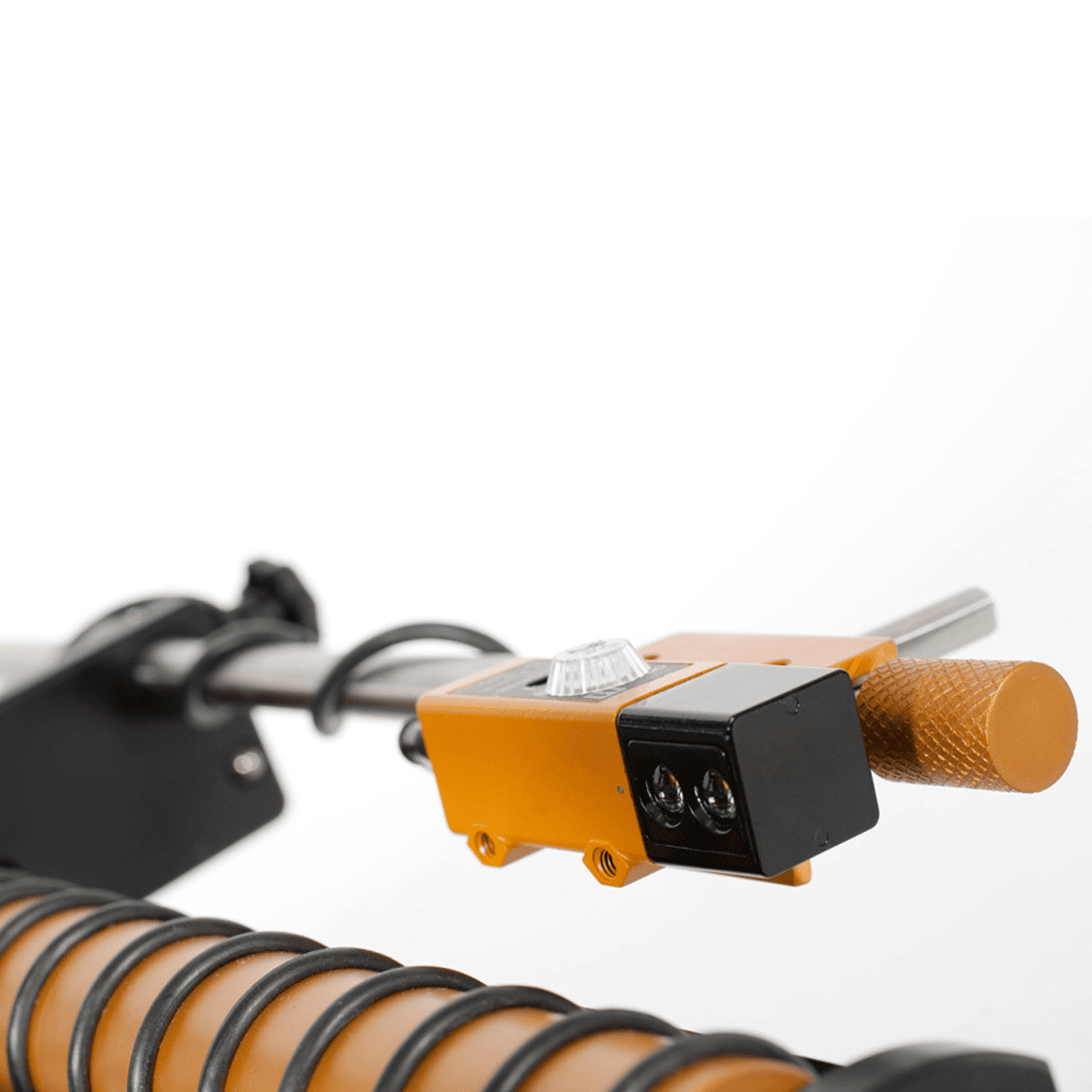

Sensor– On edge, no registration mark is required.
