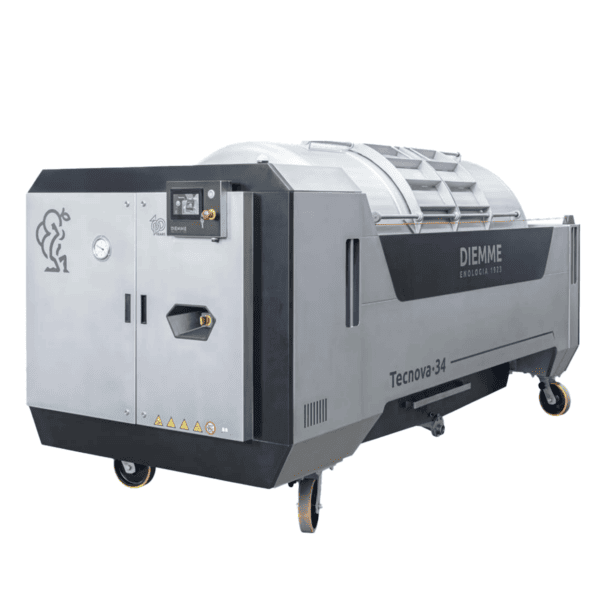

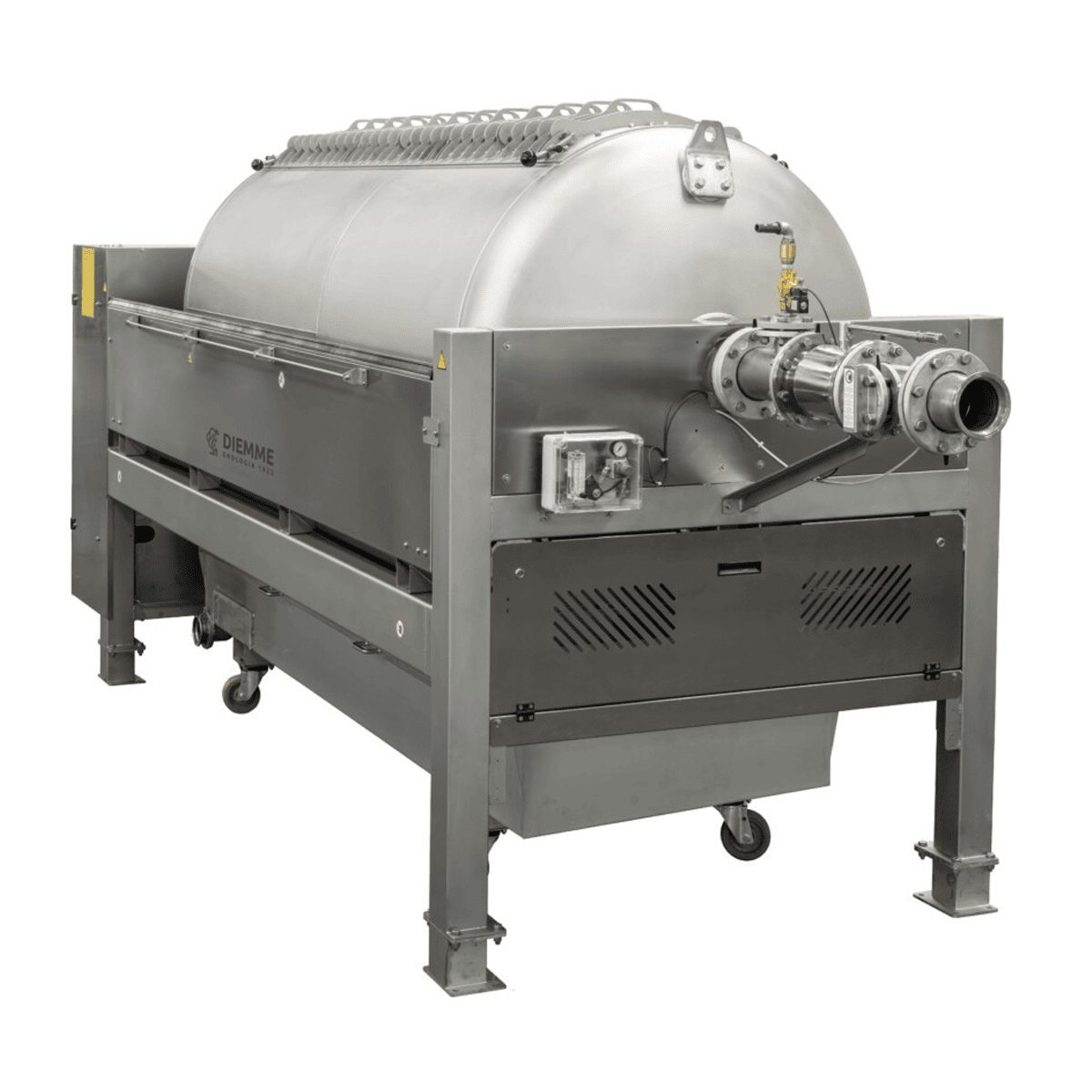

Diemme Slotted Tank Pneumatic Presses – Tecnova 15, 23, 34, 40, 50, 65, 80

High-draining surface horizontal pneumatic presses. A wide range of options and ancillaries complete the solutions in order to satisfy your requirements.

Share On:

Product Description

High-draining surface horizontal pneumatic presses. A wide range of options and ancillaries complete the solutions in order to satisfy your requirements.

Features of Tecnova 15 | Tecnova 23 | Tecnova 34

  • Horizontal pneumatic press with side membrane certified in accordance with current European Directive in force, with slotted AISI 304 stainless steel.

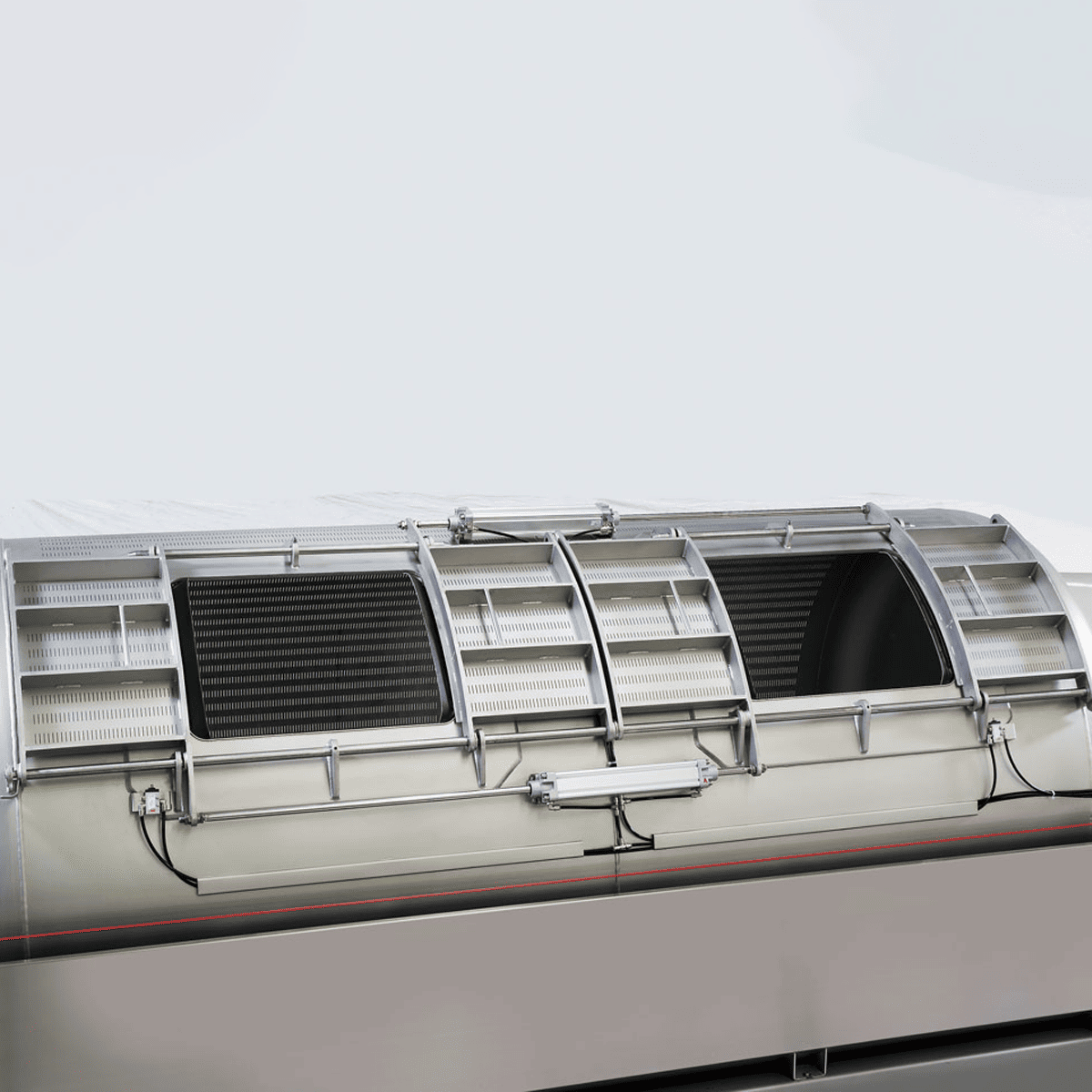

  • High draining surface thanks to a high number of slots placed along the surface.

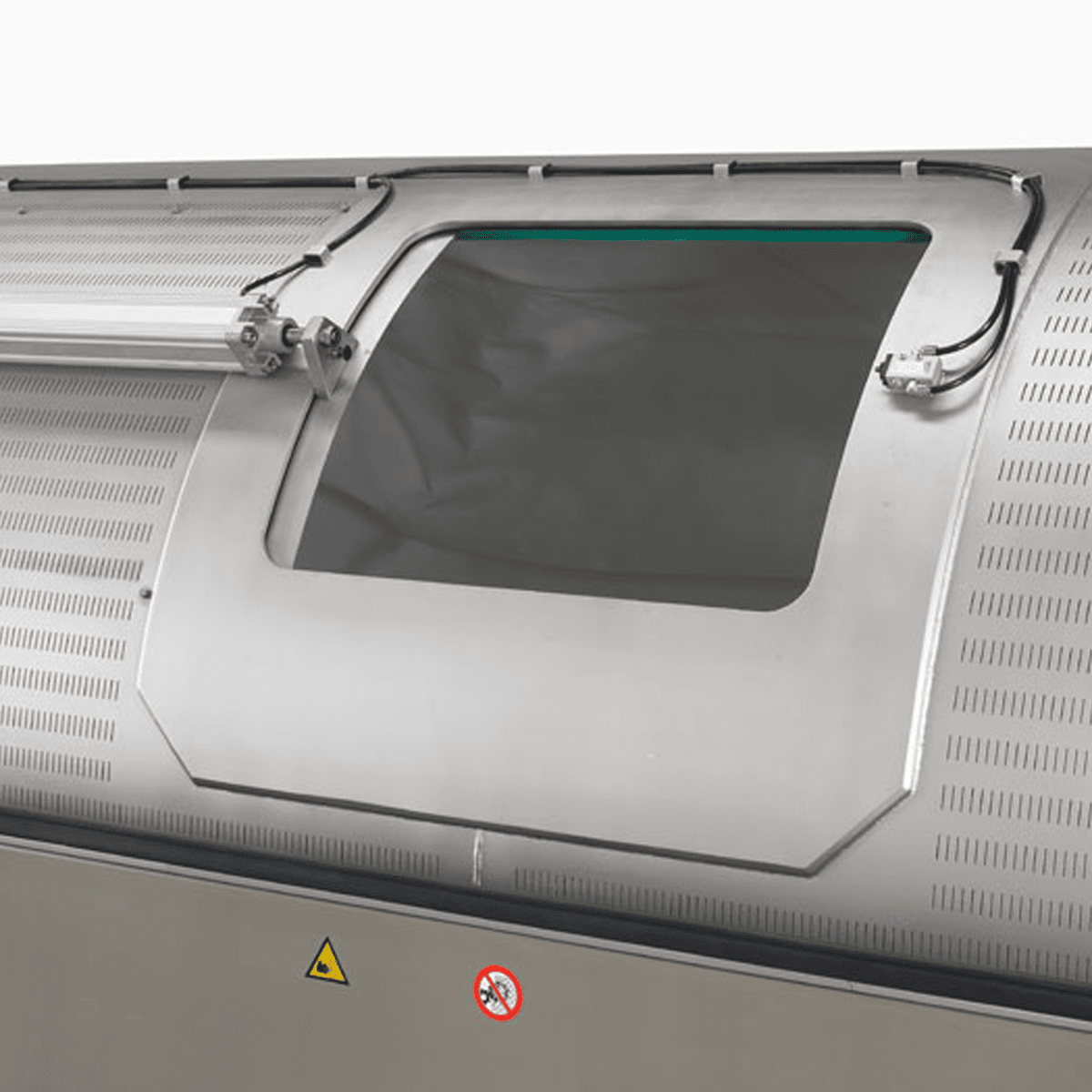

  • Large double door manually opened and closed with mechanical safety lock.
  • Pressing membrane consisting of heavy fabric coated with a food grade polymer, it inflates totally even in the absence of product, with no minimum load required. A quick fastening system without perforation of the membrane.

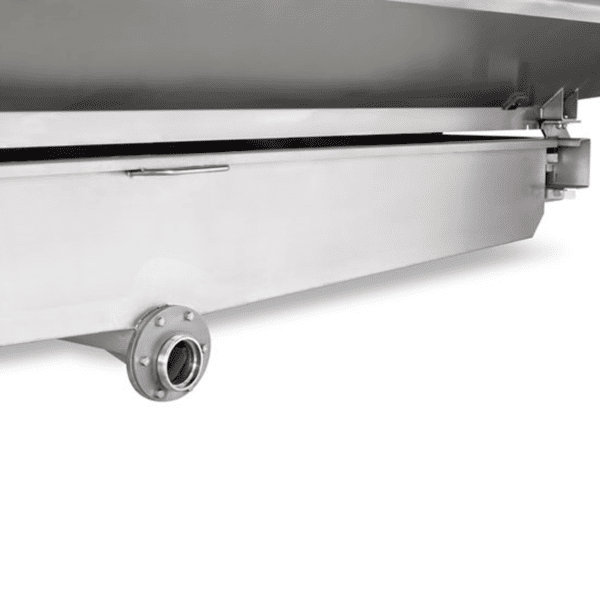

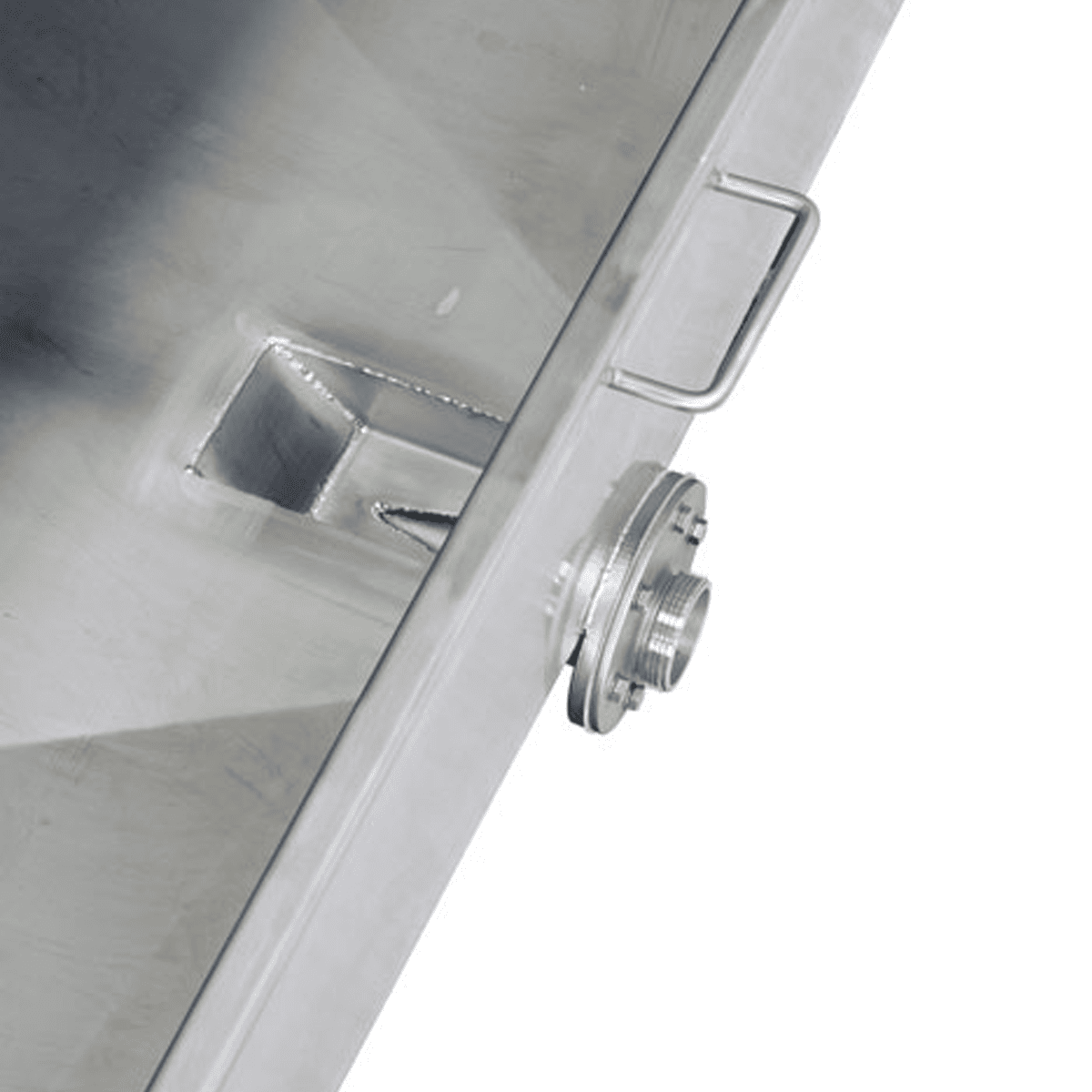

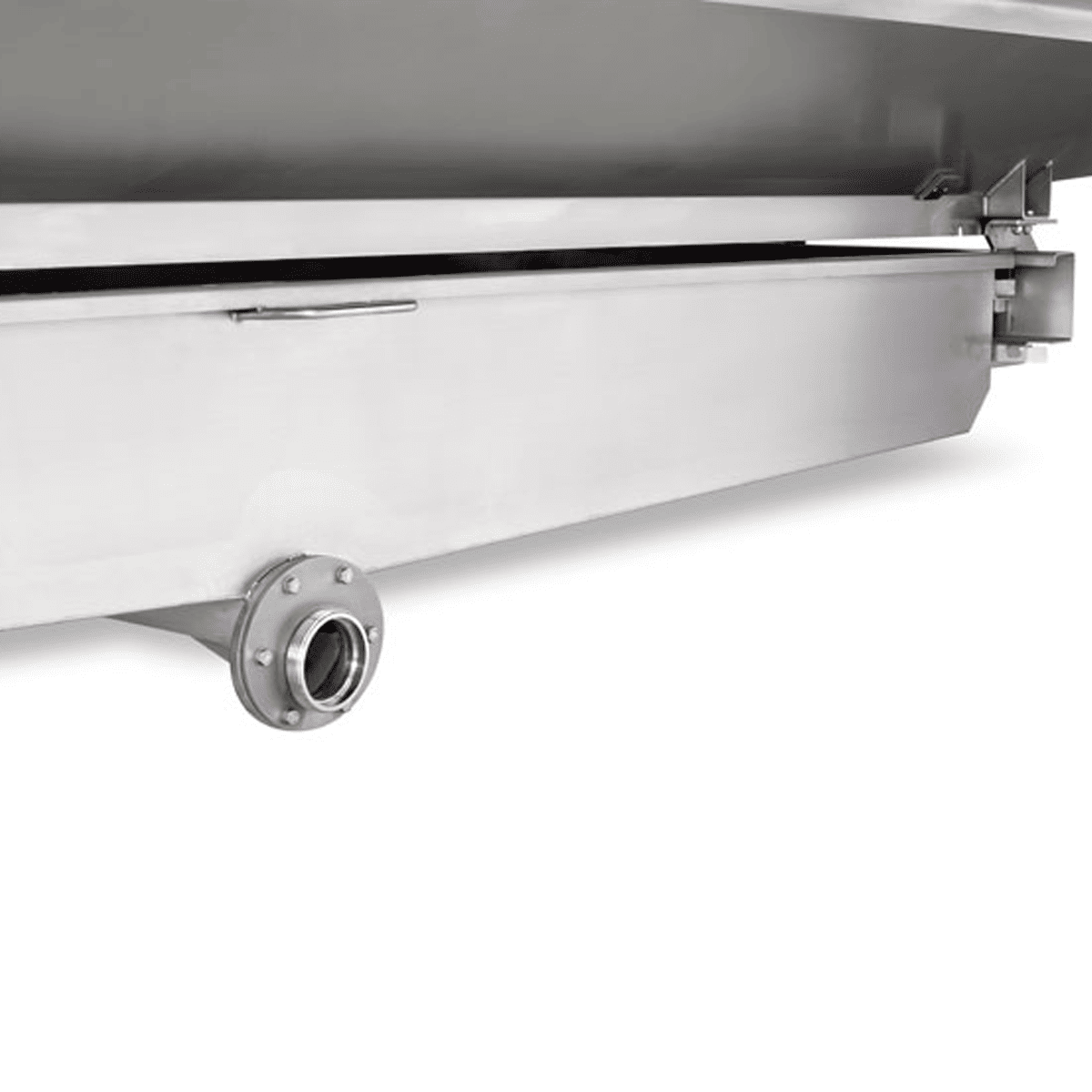

  • Frame entirely made of AISI 304 stainless steel with large juice collecting pan and side covers that can be opened for cleaning.
  • The electric control panel and covers are entirely made of AISI 304 stainless steel, in compliance with current European Directives in force.
  • Machine equipped with compressor for membrane inflation and blower for vacuum.
  • Safety side protection and emergency button for user’s safety. This machine meets the current European Directive in force.
  • Simple and user-friendly operator interface E-panel with touchscreen to easily access to programming pages. It allows the management and programming of all working cycles and monitoring of the working cycle and press status.
  • 30 pressing programs are stored in the PLC plus a “Rocking” system for tank oscillation and M.I.P. Intelligent Programm for optimizing the pressing cycle time.

Features of Tecnova 40 | Tecnova 50 | Tecnova 65 | Tecnova 80

  • Horizontal pneumatic press with side membrane certified in accordance with the current European Directive in force, with slotted AISI 304 stainless steel tank.
  • High draining surface thanks to a high number of slots placed along the surface.
  • Pressing membrane consisting of heavy fabric coated with a food grade polymer, it inflates totally even in the absence of product, with no minimum load required. A quick fastening system without perforation of the membrane.
  • Machine equipped with automatic axial feed valve complete with pressure switch and safety rupture disc against over-pressures.
  • Frame entirely made of AISI 304 stainless steel with a large juice collecting pan. Stainless steel covers and electric control panel in compliance with current European Directives in force.
  • The machine is equipped with a compressor for membrane inflation and a blower for vacuum; a second compressor is provided for control air.
  • Safety side protection and emergency button for user’s safety. This machine meets the current European Directive in force.
  • Simple and user-friendly operator interface E-panel with touchscreen to easily access to programming pages. It allows the management and programming of all working cycles and monitoring of the working cycle and press status.
  • 30 programs are stored in the PLC plus a “Rocking” system for tank oscillation and M.I.P. Intelligent Program for optimizing pressing cycle time.
  • The touchscreen control panel is mounted on a stainless-steel support which allows adjustment in inclination to give the best visibility all of the time. The panel can be easily dismantled from the press in order to protect it during periods of prolonged inactivity

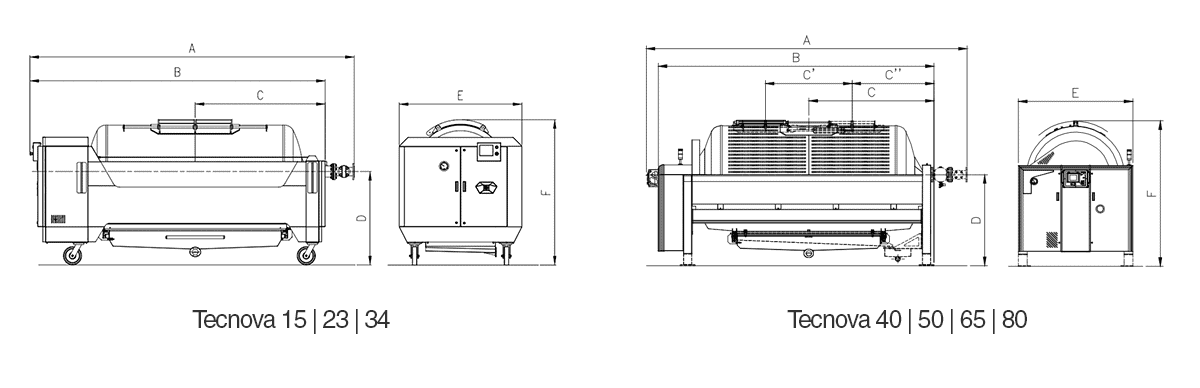

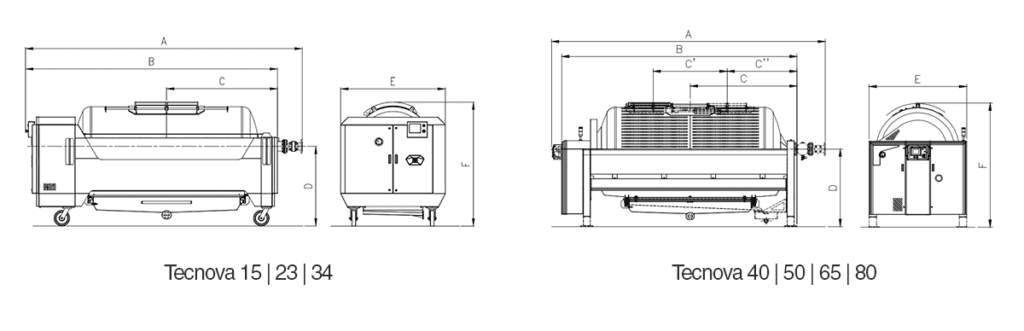

Technical data

diemme slotted tank pneumatic presses tecnova 15, 23, 34, 40, 50, 65, 80

Velvet 15Velvet 23Velvet 34Velvet 40Velvet 50Velvet 65Velvet 80
A3,809mm4,027mm4,445mm5,064mm5,565mm5,652mm5,652mm
B3,330mm3,630mm4,048mm4,216mm4,716mm4,830mm4,883mm
C1,433mm1,587mm1,782mm1,810mm2,060mm2,140mm2,168mm
C’1,250mm1,250mm1,500mm
C”1,435mm1,515mm1,418mm
D1,058mm1,280mm1,280mm1,450mm1,450mm1,575mm1,575mm
E1,350mm1,680mm1,680mm1,779mm1,789mm2,009mm2,009mm
F1,598mm1,931mm1,992mm2,222mm2,222mm2,450mm2,520mm
Tank volume1,500L2,300L3,400L4,000L5,000L6,500L8,000L
Door dimension800x440mm900x480mm900x480mm900x500mm1100x500mm700x550mm700x550mm
Juice pan volume400L400L500L
Empty weight1,150kg1,300kg1,500kg2,000kg2,200kg2,700kg3,000kg
Full weight2,650kg3,600kg4,900kg6,000kg7,200kg9,200kg11,000kg
Installed power3.35kW5kW5.4kW10.7kW12.5kW13.5kW15.2kW
Whole bunch capacity1,000kg1,400kg2,100kg2,500kg3,100kg4,000kg5,000kg
Destemmed/crushed grapes capacity3,000kg4,600kg6,800kg8,000kg10,000kg13,000kg16,000kg
Fermented and drained
capacity
4,500kg6,900kg10,200kg12,000kg15,000kg19,500kg24,000kg

The above data is indicative and may vary according to the degree of ripeness, type of grape and filling method. All data refers to initial whole bunch weight prior to any operation like destemming, crushing, maceration, fermentation, etc.

Options of Tecnova 40 | Tecnova 50 | Tecnova 65 | Tecnova 80

Velvet 40Velvet 50Velvet 65Velvet 80
Double door
Stainless steel frameStandardStandardStandardStandard
DN125 automatic axial feedingStandardStandardStandardStandard

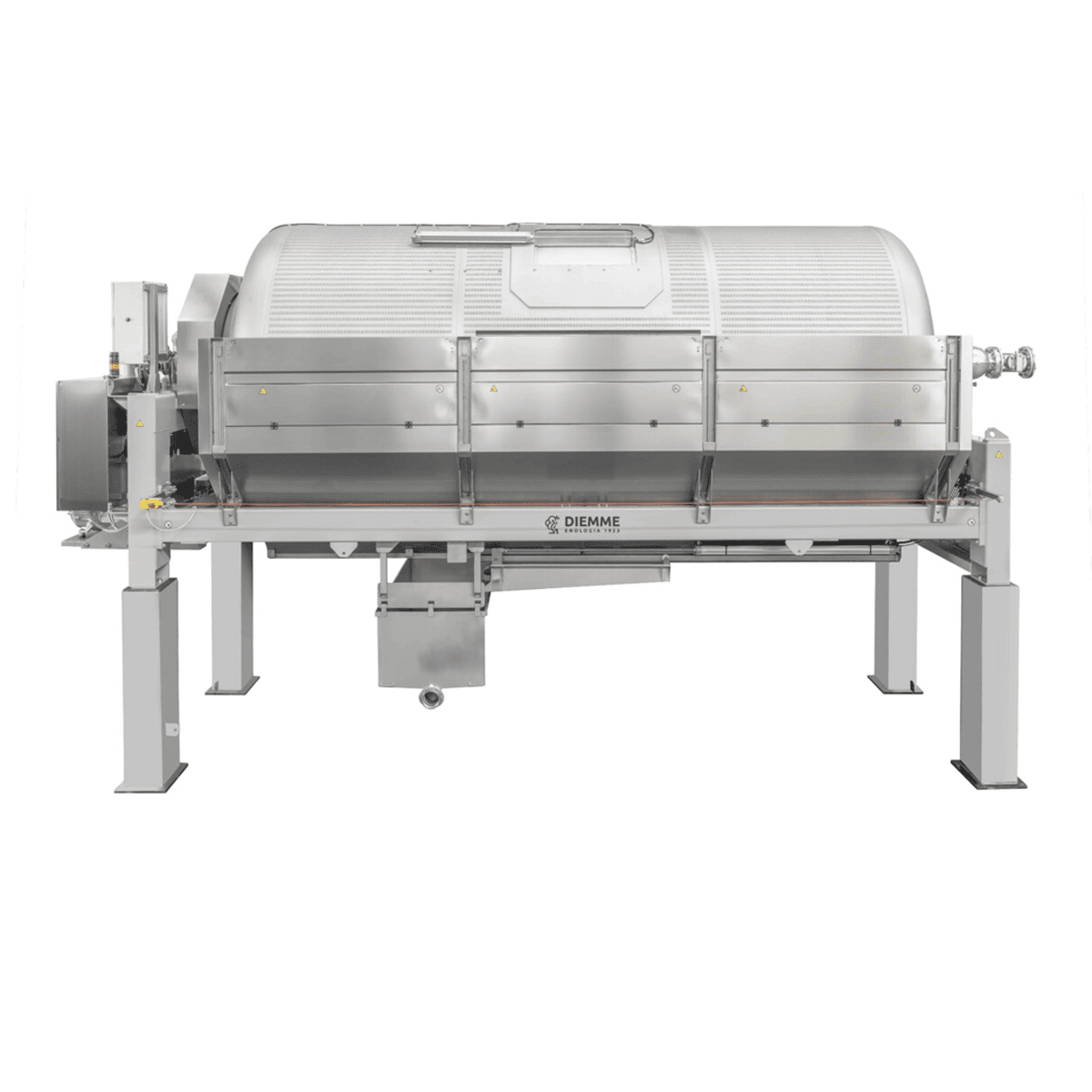

Stainless steel raised feet
Mimic panel
F.R.O. Feeding Rotation Optimizer
F.I.P. Intelligent Program
M.I.P. Intelligent ProgramStandardStandardStandardStandard
2-ways juice selection valves
3-ways juice selection valves
Manual wheels
Motorized wheels
Level Probe
Washing bar controlled by PLC
Remote push-button panel



Options of Tecnova15 | Tecnova 23 | Tecnova 34

Velvet 15Velvet 23Velvet 34
DN100 manual axial feeding
Raised stainless steel feet – 500 mm long
Juice level probe
Oversize air compressor 100 m3/h – 5,5 kW
Inert pressing system type XZ
F.R.O. Feeding Rotation Optimizer
Neutral 2 system
Pulse Jet automatic washing system
