Diemme Closed Tank Pneumatic Presses – Velvet 15, 23, 34, 40, 50, 65, 80

Product Description

High-draining surface horizontal pneumatic presses with channels mirror polished. A wide range of options and ancillaries complete the solutions in order to satisfy your requirements.

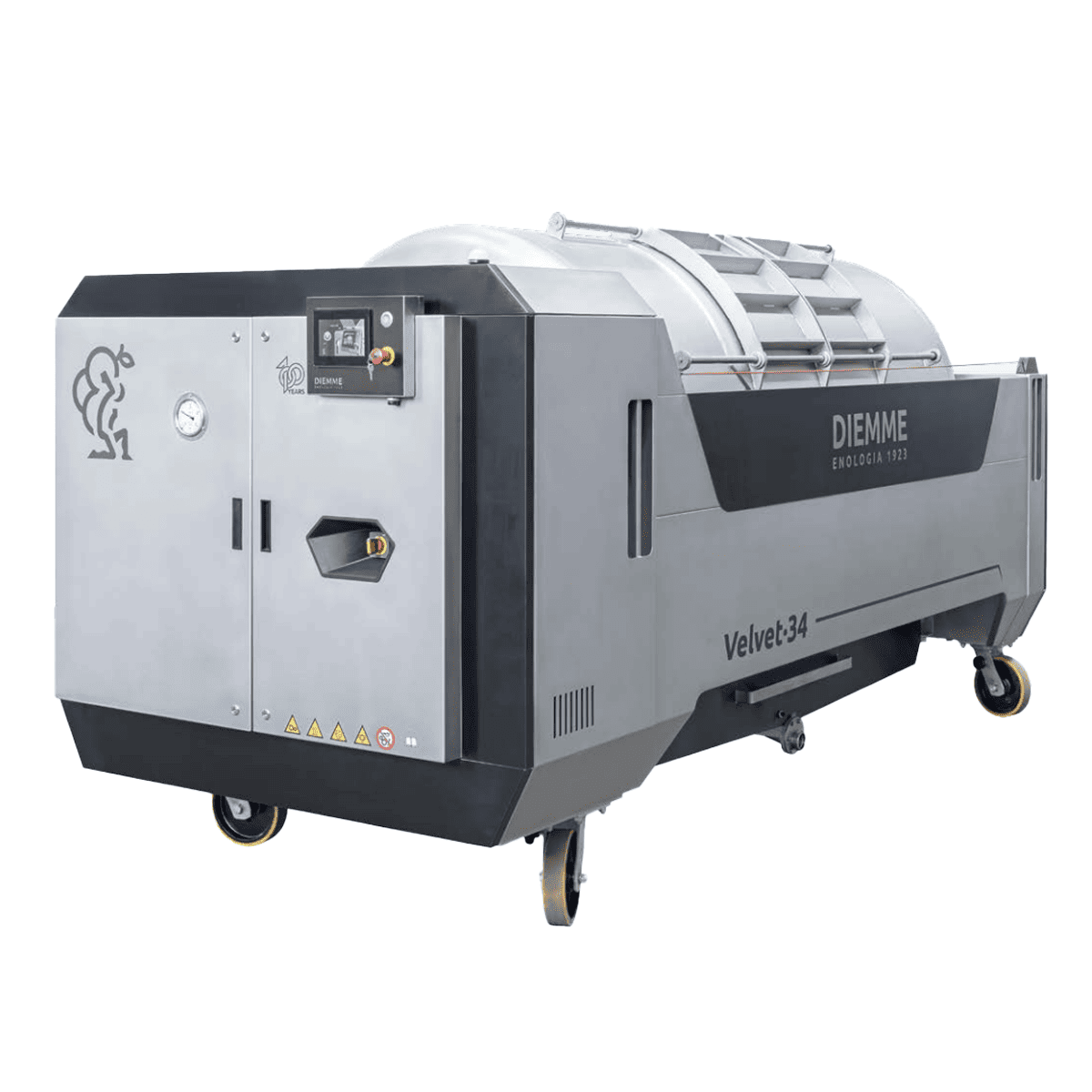

Features of Velvet 15 | Velvet 23 | Velvet 34

• Horizontal pneumatic press with side membrane certified in accordance with current European Directive in force, with closed AISI 304 stainless steel tanks.
• High draining efficiency thanks to mirror-polished channels placed along the internal lateral surface. Simplified cleaning operations thanks to a quick assembly and disassembly system.
• Large double door manually opened and closed with mechanical safety lock.
• Pressing membrane consisting of heavy fabric coated with a food grade polymer, it inflates totally even in the absence of product, with no minimum load required. A quick fastening system without perforation of the membrane.
• Frame entirely made of AISI 304 stainless steel.
• The electric control panel and covers are entirely made of AISI 304 stainless steel, in compliance with the current European Directive in force.
• Machine equipped with compressor for membrane inflation and blower for vacuum.
• Safety side protection and emergency button for user’s safety. This machine meets the current European Directive in force.
• Simple and user-friendly operator interface E-panel with touchscreen to easily access the programming pages. It allows the management and programming of all working cycles and monitoring of the working cycle and press status.
• 30 pressing programs are stored in the PLC and a “Rocking” system for tank oscillation and M.I.P. Intelligent Program for optimizing the pressing cycle time.

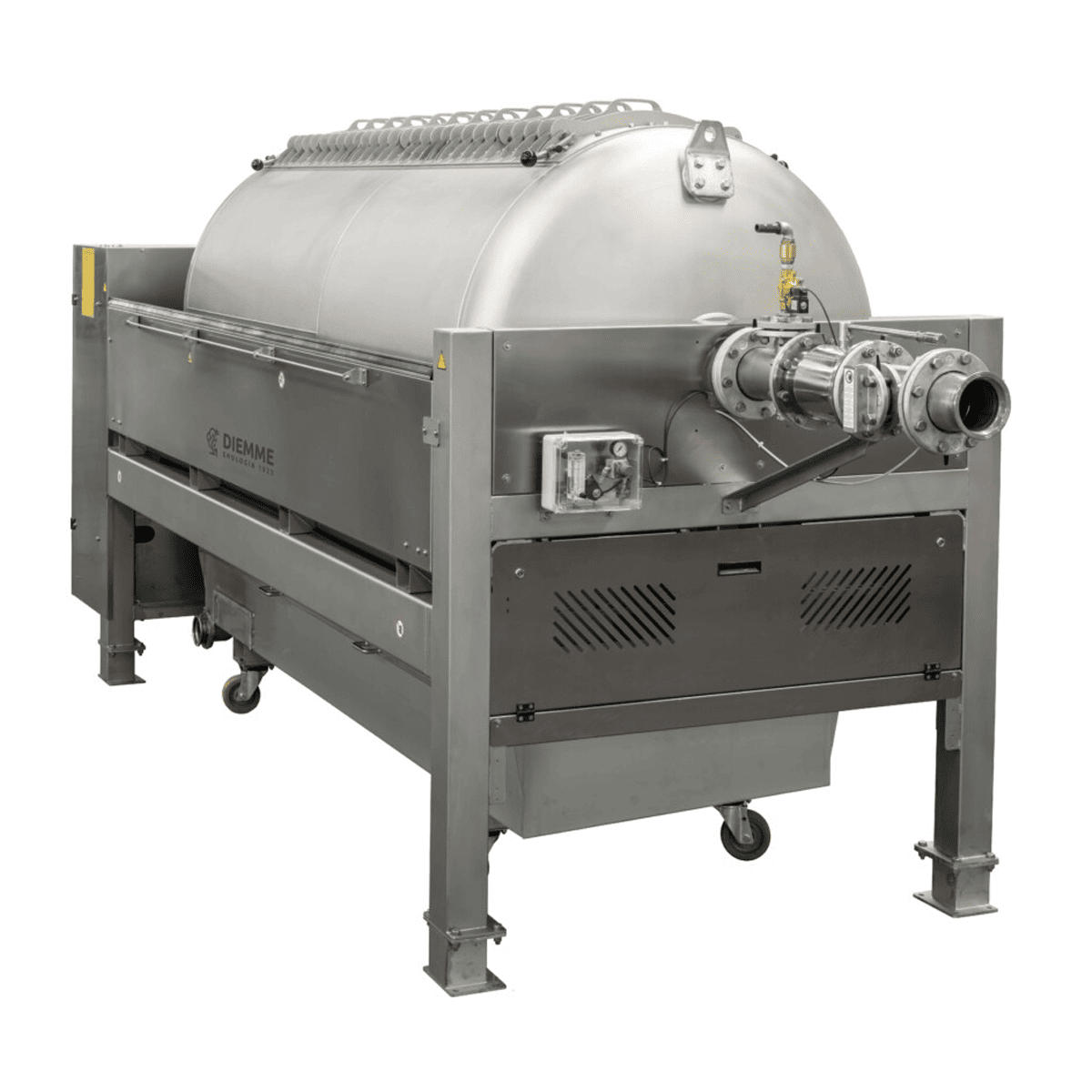

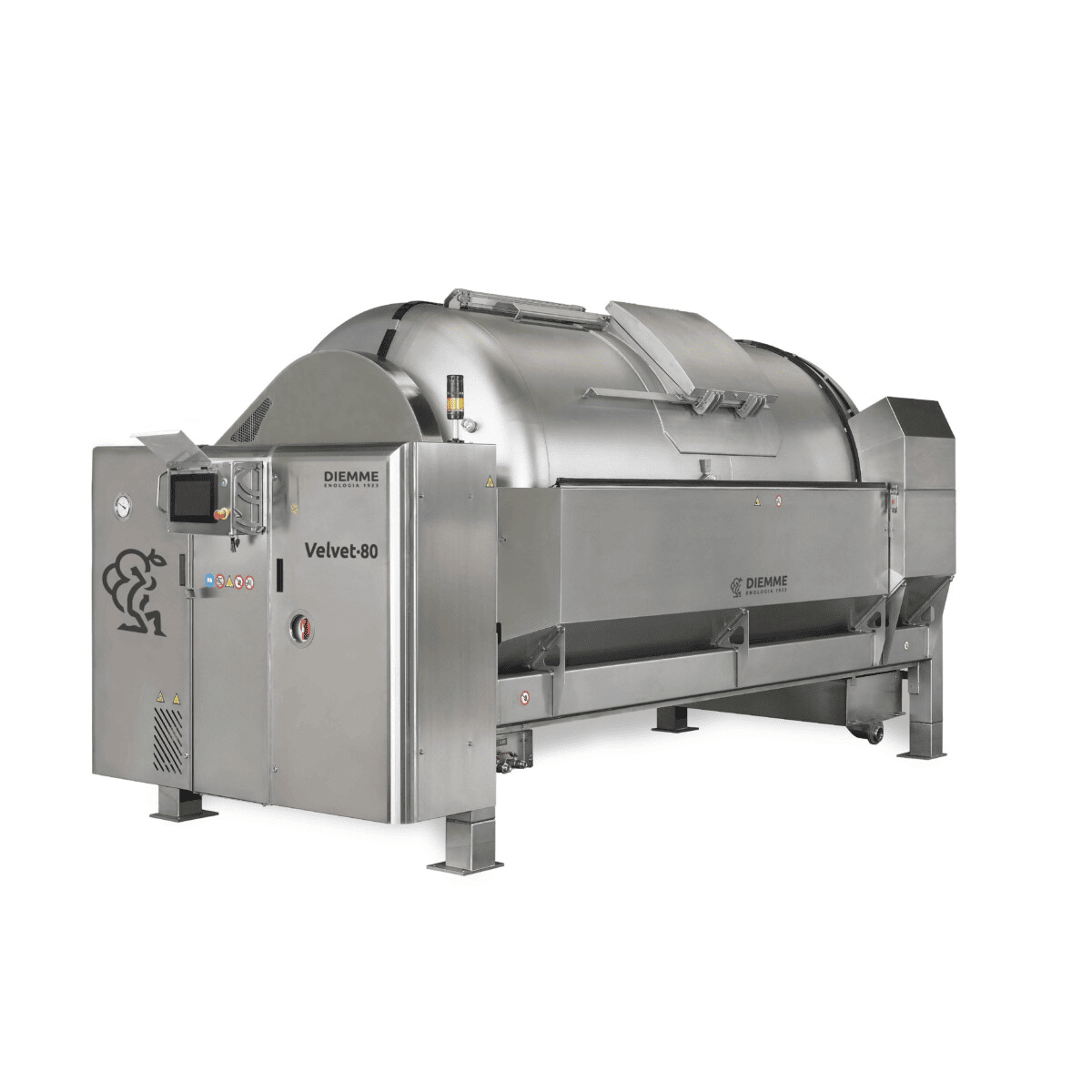

Features of Velvet 40 | Velvet 50 | Velvet 65 | Velvet 80

• Horizontal pneumatic press with side membrane certified in accordance with current European Directive in force.
• Closed AISI 304 stainless steel tank equipped with a safety rupture disc against over-pressures.
• High draining efficiency thanks to mirror-polished channels placed along the internal lateral surface. Simplified cleaning operations thanks to a quick assembly and disassembly system.
• Pressing membrane consisting of heavy fabric coated with a food grade polymer, it inflates totally even in the absence of product, with no minimum load required. A quick fastening system without perforation of the membrane.
• Machine equipped with automatic axial feed valve complete with pressure switch.
• Frame entirely made of AISI 304 stainless steel.
• Electric control panel in compliance with current European Directives in force.
• The machine is equipped with a compressor for membrane inflation and a blower for vacuum; a second compressor is provided for control air.
• Safety side protection and emergency button for user’s safety. This machine meets the current European Directive in force.
• Simple and user-friendly operator interface E-panel with touchscreen to easily access programming pages. It allows the management and programming of all working cycles and monitoring of the working cycle and press status.
• 30 programs are stored in the PLC and a “Rocking” system for tank oscillation and M.I.P. Intelligent Program for optimizing the pressing cycle time.
• The touchscreen control panel is mounted on a stainless-steel support which allows adjustment in inclination to give the best visibility all of the time. The panel can be easily dismantled from the press to protect it during periods of prolonged inactivity.

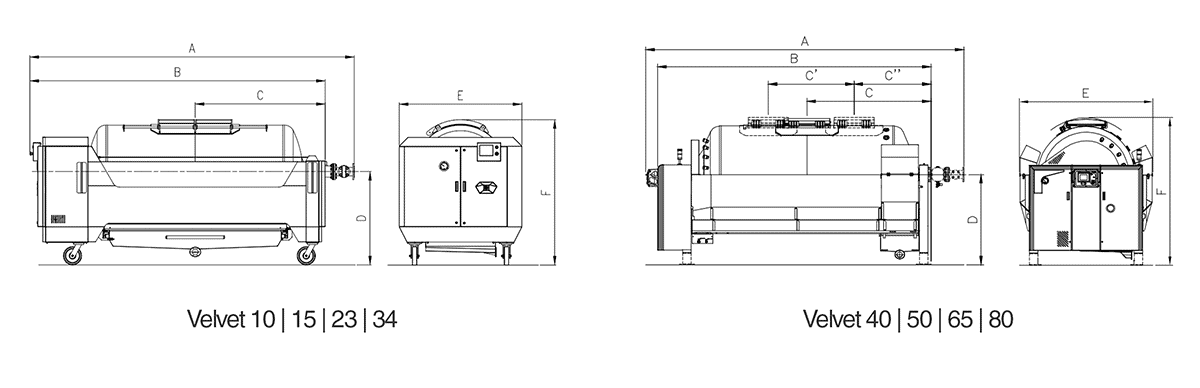

Technical data

The above data is indicative and may vary according to the degree of ripeness, type of grape and filling method. All data refers to initial whole bunch weight prior to any operation like destemming, crushing, maceration, fermentation, etc.

Options of Velvet 40 | Velvet 50 | Velvet 65 | Velvet 80

Options of Velvet 15 | Velvet 23 | Velvet 34
