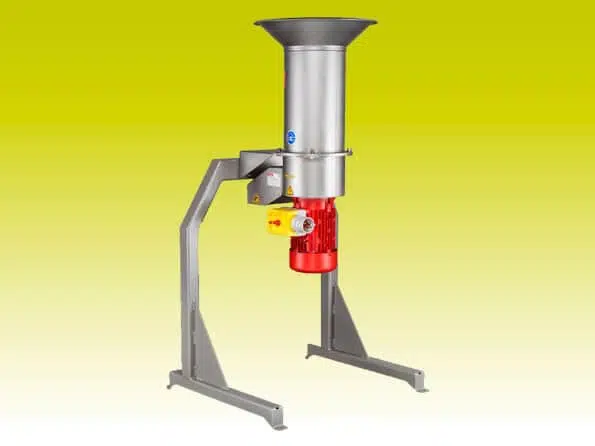

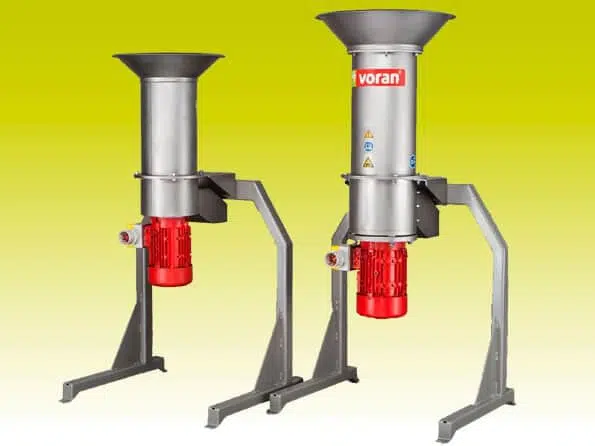

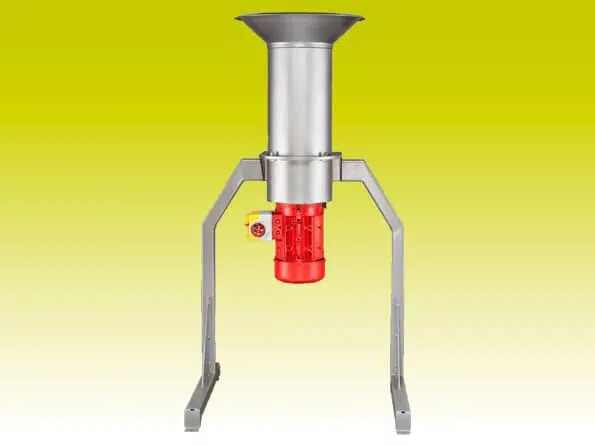

Centrifugal mill RM 2,2

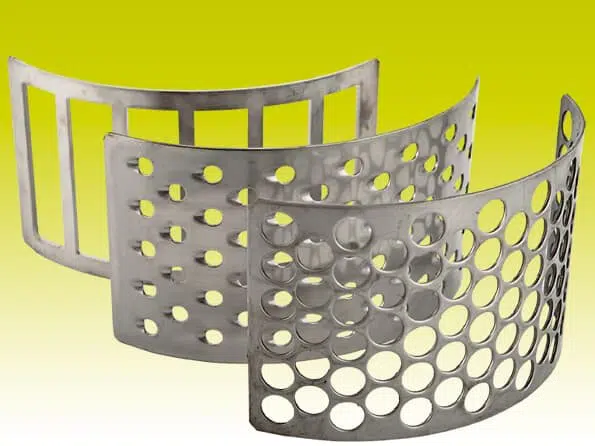

Centrifugal mill with replaceable stainless steel screens for adjusting the degree of shredding for pomaceous fruit, stone fruit and berries. Available with frame as option.
Product Documents
Download PDF
Description
Centrifugal mill with replaceable stainless steel screens for adjusting the degree of shredding for pomaceous fruit, stone fruit and berries. Available with frame as option.
TECHNICAL DATA
| Nominal rating kg/h | 1000 kg/h |
| Motor rating | 2,2 (3,0) kW (PS) |
| Connected load | 400V 50Hz (3-phase) |
| Electrical protection | 16 A |
| Length | 560 / 670 mm |
| Width | 520 mm |
| Height | 1150 mm |
| Height with frame | 1530 mm |
| Discharge height | 1530 mm |
| Weight | 45 kg |
| Weight (without / with frame) | 45 / 60 kg |
| Material | 1.4301 / AISI 304 |
| Height mash outlet | 660 mm |
| Scope of supply | with 9 mm cutting screen |
