Barrel Washing - Automatic Barrel Washers

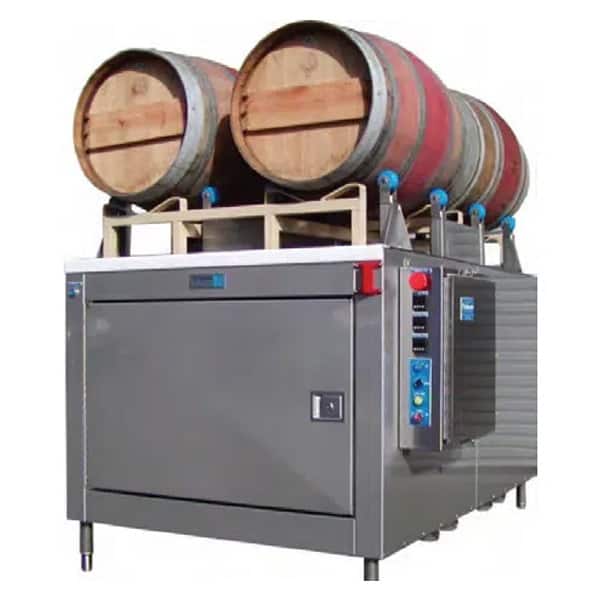

Automatic Barrel Washer TBC2
  • TBC Barrel Washing Machines have been reliably in service worldwide since 1983. All TBC products come with a full one year warranty and are backed with our dedicated service and parts support system.
    • All stainless steel construction.
    • Load and unload on racks via forklift.
    • Intergral Roller Assembly for easy bunghole alignment.
    • Programmable to minimize water consumption and maximize cleaning efficiency.
    • Certified NEMA 4X Electrical Components.
    • Ozone capable and compatible.
    • Portable
  • The model TBC2-US is a self contained portable unit that cleans and sanitizes barrels using plant supplied hot and cold water, and dissolved ozone water supplied from a separate ozone generator.
  • The wash water is boosted to the necessary cleaning pressure with an integral pump, and fluids are controlled via pneumatically actuated valves.
  • For ease of operation the entire system is controlled with a PLC (Programmable Logic Controller) via a touch screen.
  • Our Proprietary design and software programming provide excellent cleaning results, with minimum water usage and waste water generation.
  • These machines are designed specifically for use with the 2 barrels racks that are now the "standard" in the industry (44.5" x 30.5" with a 7" opening and double inside bars).
  • The primary design criterion was for excellent cleaning results, minimum water utilization, minimum waste water generation, and ease of maintenance.
  • The design minimizes initial cost and ongoing operating expense.
  • These machines also have the unique design ability to be nested on an optional framework which allows them to wash barrels on the "standard" 4 barrel rack (44.5 x 70 with a 7" opening and double inside bars).
  • This feature is particularly attractive to wineries who are transitioning from 2 to 4 barrel racks, or who have acquired multiple facilities with both types of racks in place.
Automatic Barrel Washer TBC4
  • TBC Barrel Washing Machines have been reliably in service worldwide since 1983. All TBC products come with a full one year warranty and are backed with our dedicated service and parts support system.
    • All stainless steel construction.
    • Load and unload on racks via forklift.
    • Intergral Roller Assembly for easy bunghole alignment.
    • Programmable to minimize water consumption and maximize cleaning efficiency.
    • Certified NEMA 4X Electrical Components.
    • Ozone capable and compatible.
    • Portable
  • The model TBC-CABINET / 2 & 4 are "cabinet" style machines with a body which safely houses the majority of the working components in a robust cabinet for added durability and component protection.
  • These machines have the advantage of a separate barrel roller assembly which allows the use of barrel racks that are "non-standard", including the stackable "nesting" racks.
  • These machines are available in both 2 and 4 barrel configurations.
  • Like all TBC Barrel Washers they feature the state of the art components, proven design, and our full one year warranty backed with our dedicated service and parts support system.
Options Available
  • TBC2 Options
    • Lees Recovery System
    • 2+2 Nesting Fixture for using two TBC2 to wash with 4 barrel racks
  • TBC4 Options
    • Lees Recovery System
    • Automatic Barrel Rolling System
