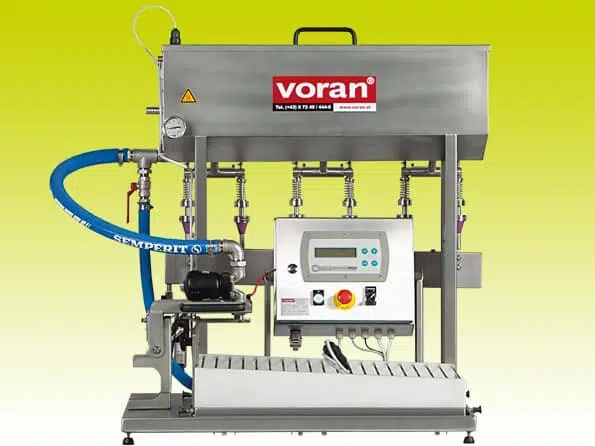

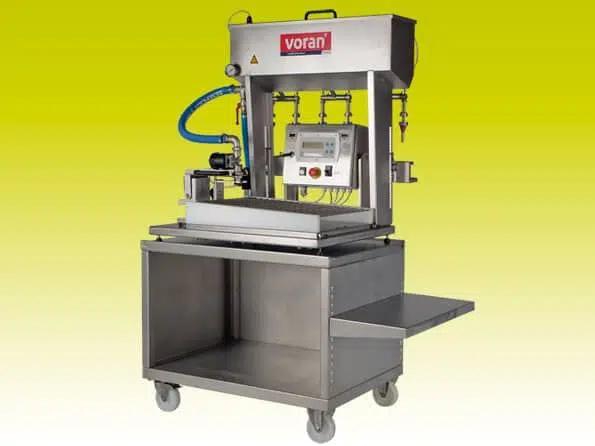

Bag-in-Box filling machine MBF 750-R6 (with 6-positions line filler)
Manual Bag in Box filling system with feed line vessel for hot filling of fruit and vegetable juice in 3, 5, 10 and 20 l standard Bags or 0.25 – 2 l bottles.
Product Documents
Download PDF
Product Description
Manual Bag in Box filling system with feed line vessel for hot filling of fruit and vegetable juice in 3, 5, 10 and 20 l standard Bags or 0.25 – 2 l bottles.
TECHNICAL DATA
| Nominal rating l/h | 750 (with 10l Bags) l/h |
| Connected load | 230V 50Hz (single-phase) |
| Electrical protection | 16 A |
| Length | 1030 mm |
| Width | 810 mm |
| Height | 1065 mm |
| Weight | 100 kg |
| Material | 1.4301 / AISI 304 |
| Filling accuracy | ± 0,5 % |
| Compressed air connection | 6 bar |
| Connection for juice inlet | Ø21,3 |

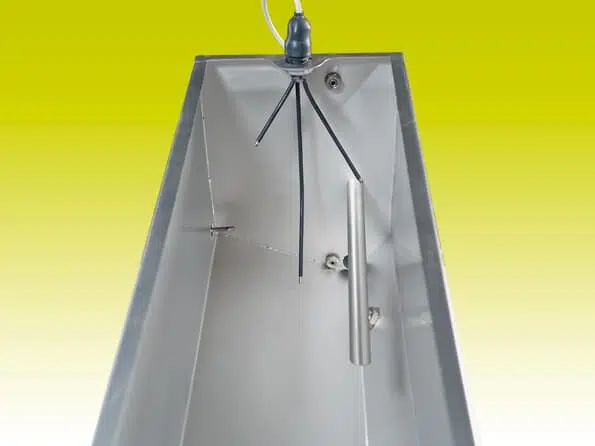

| Juice vessel | 58 l |
| Scope of supply | incl. cleaning adapter |
