Pipe screen combination DN 25 ( 2 CATEGORIES & SUB CATEGORIES)

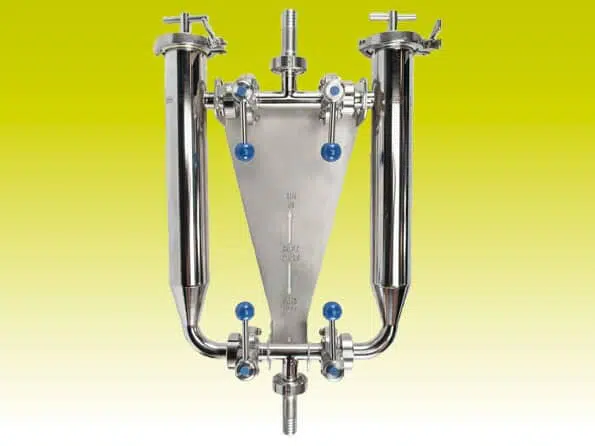

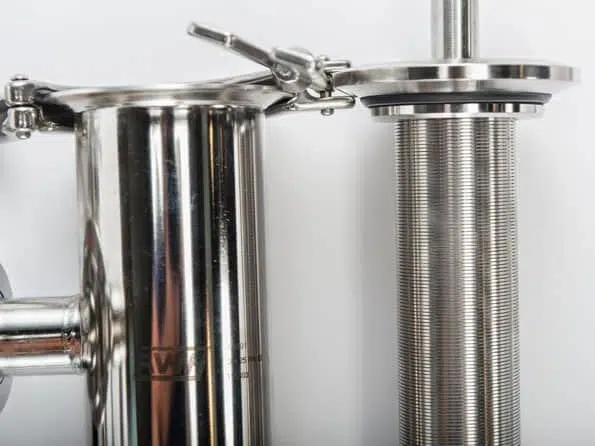

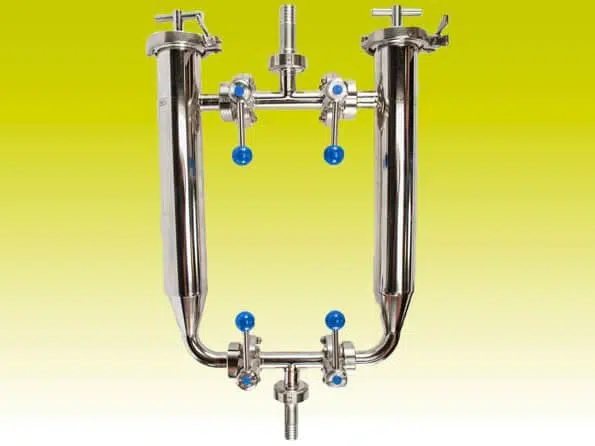

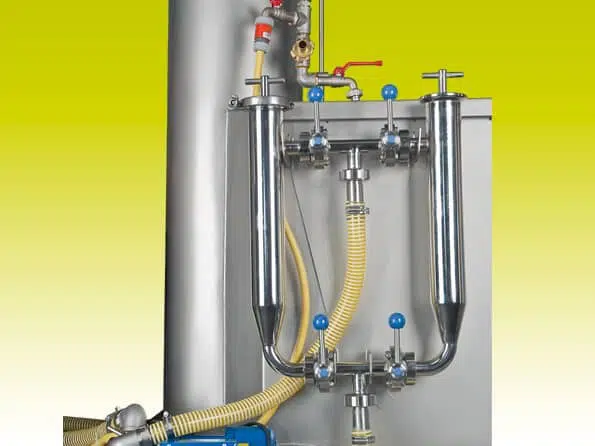

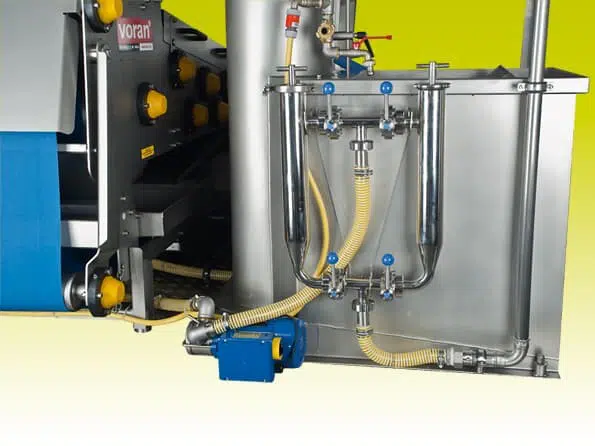

Pipe screen combination with 2 parallel stainless steel slotted screens for coarse filtering. Valves are provided to shut-off the screens individually for cleaning purposes.
Product Documents
Download PDF
Product Description
Pipe screen combination with 2 parallel stainless steel slotted screens for coarse filtering. Valves are provided to shut-off the screens individually for cleaning purposes.
TECHNICAL DATA
| Length | 643 mm |
| Width | 410 mm |
| Weight | 14,5 kg |
| Material | 1.4301 / AISI 304 |
| Scope of supply | two pipe screens, flap valves and T-pieces fully-piped, with 0.25 mm cans, 2x connector with groove nut DN25 |
