Nano Brewing Equipment

Add to your wislist Nano Brewing Equipment

Nano/Pilot Brewhouses are available in 2hL, 3.5hL and 6hL sizes allowing the professional brewer or home brewer to brew small batches of beer on equipment that will perform similarly to larger craft brewing systems.

Our Nano brewing systems can be used in a small brewpub/restaurant or in a larger craft brewery as their pilot system for developing new beers on a smaller test scale.

Control and display for temperature(s) in the brewhouse vessels along with pump operations are consolidated to a central control panel.

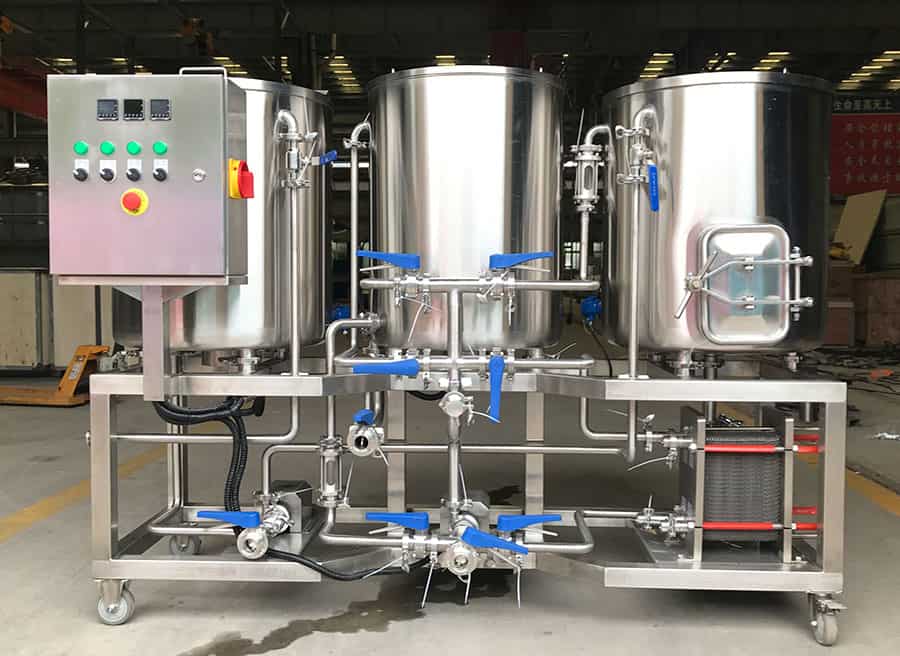

Two Vessels Skid-mounted Brewhouse (2hL / 3.5hL / 6hL)

  • Combi Mash/Lautertun (MLT) and combi Kettle/Whirlpool (KW) design
  • 304 Stainless Steel construction
  • Manual or Semi-automatic controls
  • Top Glass Manway on MLT and KW
  • Heating: Insulated Steam Jackets (steam generator not included) or Electric Immersion Heating Elements
  • Optional MLT Rakes with VFD or Manual stirring with paddle
    • NOTE: in 2hL & 3.5hL sizes, adding motorized rakes to the MLT eliminates the possibility of adding a heating element. Due to the relatively small amounts of grain used in these 2 smallest systems, the mash can easily be stirred by hand to homogenize the temperature(s)

Solo or Skid-mounted Cellar Tanks

  • Free-standing or 3 x Skid-mounted Unitanks/Fermenters
  • Top Manway (2 & 3.5hL)
  • Side Manway (6hL)
  • Single wall & unjacketed or Double wall with insulation and glycol cooling jackets

Nano Chillers (Made in USA)

  • Designed for nano-brewing systems

Accessories: Spunding Fermentation Valve, PRV Valve, Temperature Sensor, Racking Arm, Pressure Gauge, Temperature and Level Gauge, C.I.P. Sprayballs, Carbonation Stone with Check & Ball Valves

Pilot Systems

For larger breweries, looking to mimic their full size brewhouse with pilot brewing equipment we can provide up to 4 vessel systems.

Specification

  • Construction: 304 stainless steel
  • Custom design to customer’s specs
  • Operation: Semi-automatic / Manual
  • Heating: Insulated Steam jackets (steam generator not included) / electrical immersion heating elements
Request More Information

Product: Nano Brewing Equipment
