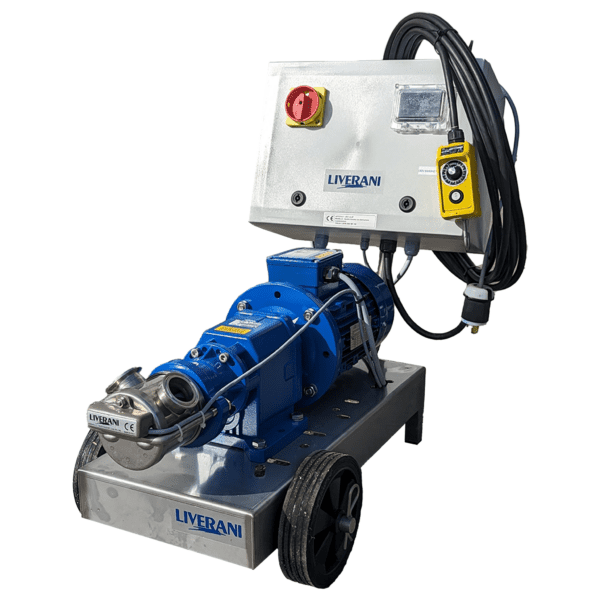

Liverani Flexible Impeller Pumps (Mini, Midex, Minor, Major, Max)

CAD 1,559.00CAD 14,179.00

Stainless steel low-speed rotary pumps with flexible impellers.

Share On:

Frequently Bought Together

liverani flexible impeller pump mini (1 phase) + liverani midex impeller (epdm) 1 + liverani mechanical seal (replacement parts) mini nbr 1
Price for all three: CAD 1,763.65
Stainless steel low-speed rotary pumps with flexible impeller; particularly suitable for transfer of delicate, fragile, and viscous fluids, also with solid parts in suspension. Liverani impeller pumps are used widely in;

  • Oenological field (wine, must, must and stemmed grapes)
  • Food processing (beer, fruit pulp and juice, honey, liquid sugar, syrups, glucose, milk, melted butter, yogurt, liquid eggs, oil, tomatoes pulp and juice, brine, etc.)
  • Chemical industry (starch, water-based glues, emulsions, glycerine, wax, detergents, rubber latex, photographic processing liquids, polyelectrolyte, paints, ink, industrial discharges, etc.)
  • Cosmetic and pharmaceutical production (liquid soap, cleaning lotion, cream, shampoo, etc.).

The easy mounting principle, the multiple choice of production materials and the quality system procedure applied throughout production offer a wide, versatile and customized product range. Every pump range can be produced with different impeller types, mechanical gaskets, couplings and in numerous executions, which are: bare shaft pump; coaxial motorized pump (with electric or orbital hydraulic motor); with gearmotor; with pulley (on trolley or base); with mechanical speed variator or with frequency converter.

Features

  • Food-grade stainless steel pump head.
  • Gentle pump with high automatic self-priming action even at low revolutions, which allows the transfer of soft and fragile fluids with viscosities up to 50.000 cp, or with solid particles in suspension, without causing air-locking, avoiding emulsifying or damaging particles. (priming of the product up to 6 m even from dry start-up)
  • Reversible operation. (the pump can operate in both rotation directions, which permits the return of excess liquid without any manual intervention, and also allows easy emptying of pipes on completion of liquid transfer).
  • Steady pumping action without pressure spikes. (even flow rate ideal for filling, dosing or filtration).

Pump specifications

Liverani Flexible Impeller Pump Mini – 1 Phase

  • Manufacturer: Cellar-Tek/Liverani
  • Type: Pump Cart
  • Model: MINI, 5325243204
  • 1,620 liters per hour
  • 1.5” TC connections
  • 120V/1 Phase/60Hz (15A)
  • On/off control
  • Speed control optional
  • Cart NOT included

Liverani Flexible Impeller Pump Midex – 1 Phase

  • Manufacturer: Cellar-Tek/Liverani
  • Type: Pump Cart
  • Model: MIDEX, 5925340004
  • 5,760 liters per hour
  • 1.5” TC connections
  • 230V/1 Phase/60Hz (20A)
  • On/off control, corded remote, speed control
  • Cart included

Liverani Flexible Impeller Pump Midex – 3 Phase

  • Manufacturer: Cellar-Tek/Liverani
  • Type: Pump Cart
  • Model: MIDEX, 59353400TF22004
  • 5,760 liters per hour
  • 1.5” TC connections
  • 230V/3 Phase/60Hz (20A)
  • On/off control, corded remote, speed control
  • Cart included

Liverani Flexible Impeller Pump Minor – 1 Phase

  • Manufacturer: Cellar-Tek/Liverani
  • Type: Pump Cart
  • Model: MINOR, 5929440004
  • 6,900 liters per hour
  • 1.5” TC connections
  • 230V/1 Phase/60Hz (20A)
  • On/off control, corded remote, speed control
  • Cart included

Liverani Flexible Impeller Pump Minor – 3 Phase

  • Manufacturer: Cellar-Tek/Liverani
  • Type: Pump Cart
  • Model: MINOR, 59394400V23004
  • 6,900 liters per hour
  • 1.5” TC connections
  • 230V/3 Phase/60Hz (20A)
  • On/off control, corded remote, speed control
  • Cart included

Liverani Flexible Impeller Pump Major – 3 Phase

  • Manufacturer: Cellar-Tek/Liverani
  • Type: Pump Cart
  • Model: MAJOR, 593964382004
  • 22,500 liters per hour
  • 2” TC connections
  • 230V/3 Phase/60Hz (20A)
  • On/off control, corded remote, speed control
  • Cart included

Liverani Flexible Impeller Pump Maxi – 3 Phase

  • Manufacturer: Cellar-Tek/Liverani
  • Type: Pump Cart
  • Model MAXI, 593984382004 (special order)
  • 43,800 liters per hour
  • 3” TC connections
  • 230V/3 Phase/60Hz (30A)
  • On/off control, corded remote, speed control
  • Cart included
WeightN/A
DimensionsN/A
Model

Mini, Midex, Minor, Major, Maxi

Power (Phase)

1 Phase, 3 Phase
