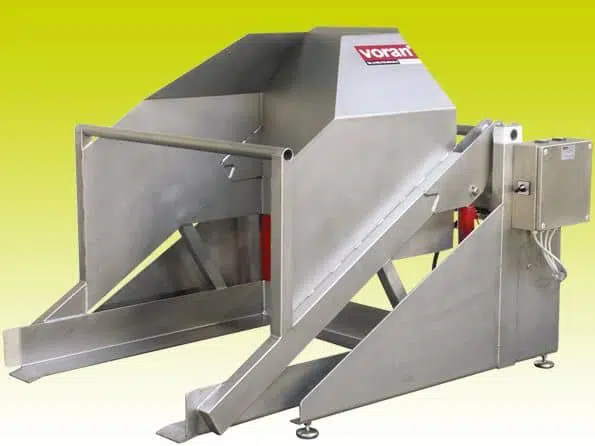

Voran Bin Dumper GKE 1250

Sorry, this product is not available in your country.

The Voran Bulk bin lifter including hydraulic power unit for specialised bin sizes (LXWXH = 1250x1200x970). This bin dumper is for easy and consistent filling of washing systems.

Product Documents

Sorry, this product is unavailable or cellar-tek is not the distributor in your country. (We cater to Canada & North America.) Please feel free to inquire about local distribution contact information.
SKU: 344 Category:
Share On:

Product Description

Bulk bin lifter including hydraulic power unit for specialised bin sizes (LXWXH = 1250x1200x970). This bin dumper is for easy and consistent filling of washing systems.

TECHNICAL DATA

Motor rating1,5 (2,0) kW (PS)
Connected load400V 50Hz (3~)
Electrical protection16 A
Length1740 mm
Width1720 mm
Height1280 (tilted 2490) mm
Discharge height850 mm
Weight350 kg
Material1.4301 / AISI 304
Lift forceup to 550 kg / box
Duration of each pivot20 sec.
Height mash outlet900 mm
Width fruit outlet500 mm
