Thermo Scientific Orion Star A211 Benchtop pH Meter
Sorry, this product is not available in your country.
Record accurate and reliable pH, mV, ORP and temperature measurements. This meter is ideal for a wide range of applications and advanced pH analysis in the lab.
Special order item. Please call (250.868.3186) or message us using the inquiry form below.
Download Documentation
- Brochure - Orion Benchtop and Portable Meter
- Manual - Thermo Scientific Orion Star A210 Series [EN]
- Manual - Thermo Scientific Orion Star A210 Series [FR]
- Measuring Salt Content in Canned Vegetables Using Manual Titration
- Measuring pH in Low Ionic Strength Solutions
- Measuring pH in Wine and Juice
- Measuring pH in Soil
- Standardization of Iodine Titrant for Ripper Titration of Wines
- Measuring pH of Concentrated Samples
- Understanding Calibration of Laboratory pH Systems
- pH Calibration for Extreme pH Sample Testing
- Sulfur Dioxide in Wine by Enhanced Manual Ripper Titration with Platinum and Iodide Electrode
- Sulfur Dioxide in Wine by Manual Ripper Titration with a Platinum ORP Electrode
- Great Beers Start with Great Chemistry
- Orion Star A211 pH Benchtop Meter Specification Sheet
- Orion Star Com Software Specifications
- Orion Star A211 Benchtop pH Meter Instruction Sheet
- Winemaking process analysis
Thermo Scientific Orion Star A211 Benchtop pH Meters are easy-to-use, dependable laboratory meters with advanced features and functions. Selectable read modes and stability indicator give you flexibility and control over your testing. All critical data is shown with your measurements including temperature, date and time, read type, measurement stability, active calibration information and electrode condition icon. Onscreen calibration and setup instructions can be displayed in several local languages with new languages added through software updates.
Navigation is fast and simple due to the comprehensive keypad with menu-specific function keys, dual purpose scroll/shortcut keys, plus power, measure, log view and stirrer keys that ensure easy operation. All setup menus are in one location with direct access using a single shortcut key so you can quickly access, evaluate and change measurement and instrument settings.
- Measure pH, mV, relative mV or ORP with temperature
- Perform up to a 5 point pH calibration using automatic buffer recognition of NIST or DIN buffer groups with choice to manually enter custom buffer values
- Calibration editing option allows individual points to be fixed without a full recalibration
- Informative, easy-to-read backlit graphic display with clear onscreen instructions simplifies operation
- Capture your critical readings with measurement stability indicator and selectable read modes — Auto-Read holds a stable reading, Continuous shows changing readings with hold option and Timed logs data at specific intervals
- Eliminate the need for magnetic stir bars using the meter-controlled stirrer probe (catalog number 096019) to uniformly mix solutions
- Data log collects and date/time stamps up to 2000 measurement sets with optional sample ID and user ID
- Calibration log stores 10 most recent calibrations
- Non-volatile meter memory ensures your data and settings are protected, even with loss of power
- Orion Star Com software facilitates data transfer to a computer via USB or RS232 connections
- Flexible power options with universal power adapter or optional AA batteries
- IP54-rated housing resists dust and splashes and can be wall-mounted if table space is limited
- Meters include CE, TUV 3-in-1 and FCC Class A certifications
Specifications
Accuracy (Temperature) | ±0.1°C |
Accuracy (mV) | ±0.2 or ±0.05%, whichever is greater |
Accuracy (pH) | ±0.002 |
Data Management Details | Transfer single, range or all data points to printer or computer |
Description | Orion Star A211 pH benchtop meter durable sensor TRIS kit with TRIS-compatible ROSS Ultra epoxy-body pH/ATC electrode |
Outputs | USB, RS-232 |

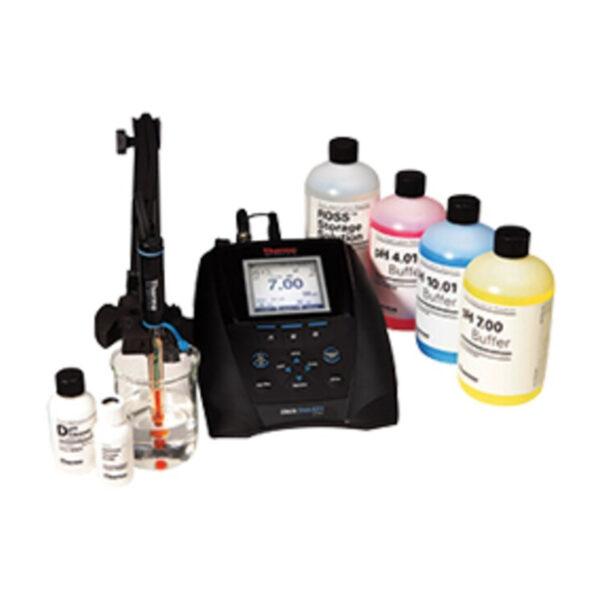

Includes | Star A211 pH meter, 8157BNUMD ROSS Ultra epoxy-body pH/ATC electrode, 810199 pH buffer kit, electrode stand, 100-240V universal power adapter, computer cable |
Measurement Modes | pH, mV, Relative mV, ORP with Temperature |
Calibration | pH with calibration editing option, relative mV, ORP and temperature |
Range (pH) | -2 to 20 |
Resolution (pH) | 0.001, 0.01, 0.1 |
Range (mV) | ±2000.0 |
Range (ORP) | ±2000.0mV |
Resolution (mV) | 0.1mV |
Calibration Points | 1 to 5 |
Temperature Range (Metric) | -5°C to +105°C |
Temperature Range (English) | 22.0°F to 221.0°F |
Resolution (Temperature) | 0.1°C, 0.1°F |
Temperature Selection | Manual or automatic with ATC temperature probe |
Temperature Probe Calibration | 1 point temperature offset calibration |
Display Type | LCD, Graphic with Backlight |
Backlight Option | Yes, selectable |
Memory | Non-volatile memory preserves data log, calibration log and meter settings |
Data Points | 2000 with Date and Time Stamp |
Log Function Type | Automatic with Auto-Read and Timed Read Modes, Manual with Continuous Read Mode |
Alarm Output | High/low limit alarm, calibration due alarm |
Inputs | BNC (pH or ORP electrode), pin-tip (reference electrode), 8 pin MiniDIN (ATC temperature probe), stirrer input (stirrer probe) |
Certifications/Compliance | CE, TUV 3-1, FCC Class A |
IP Rating | IP-54 |
AC Adapter | Universal 50-60 Hz, 100-240 VAC power adapter (Cat. No. 1010003) |
Dimensions (L x W x H) | 24 cm x 18 cm x 11 cm (9.5 in. x 7.1 in. x 4.3 in.) |
Weight (Metric) | 0.9 kg |
Weight (English) | 2 lb. |
Warranty | 3 Year Meter Warranty |
Keypad | Comprehensive with menu-specific function keys and dual purpose scroll/shortcut keys |
Methods | 10 per channel with password protection |
Model | Orion Star A211 pH/mV/RmV/ORP/Temperature Benchtop Meter |
Power Supply | Universal AC adapter (included) or 4 AA batteries (sold separately) |
Probe Type | pH electrode, ORP electrode, reference half-cell electrode, ATC temperature probe, stirrer probe (includes 8157BNUMD ROSS Ultra Triode pH/ATC electrode) |
Languages | English, Spanish, French, Italian, German and Chinese; Portuguese and Korean Available with Software Update |
Range (Relative mV) | ±2000.0mV |
Relative Humidity Range | 5 to 85%, non-condensing |
Isopotential Point | 7.000pH |
Stability | Selectable fast, medium, slow or Smart Stability setting; Selectable off or Automatic Smart averaging setting |
Temperature (English) Operating | 41°F to 113°F (ambient) |
Temperature (Metric) Operating | 5°C to 45°C (ambient) |
Channels | 1 |
Battery Type | 4 x AA (sold separately) |
Battery Life | 800 hr. |
Unit Size | Each |
