Liverani Flexible Impellers (Replacement Parts)
Price range: CAD 87.04 through CAD 609.80
Liverani Impellers (replacement parts) for Mini, Midex, Minor, Major and Maxi Pumps.
Description
Liverani Impellers (replacement parts) for Mini, Midex, Minor, Major and Maxi Pumps.
- EPDMÂ – Best for hot fluid and CIP cleaning. Excellent for acid and alkaline fluids.
- Nitrile (NBR)Â – Excellent resistance to oils and fats.
- Natural rubber (NR) – Excellent for water-based liquid at room temperature, highest mechanical resistance.
We highly recommend you also purchase two O-rings and a mechanical seal to replace along with the impeller.

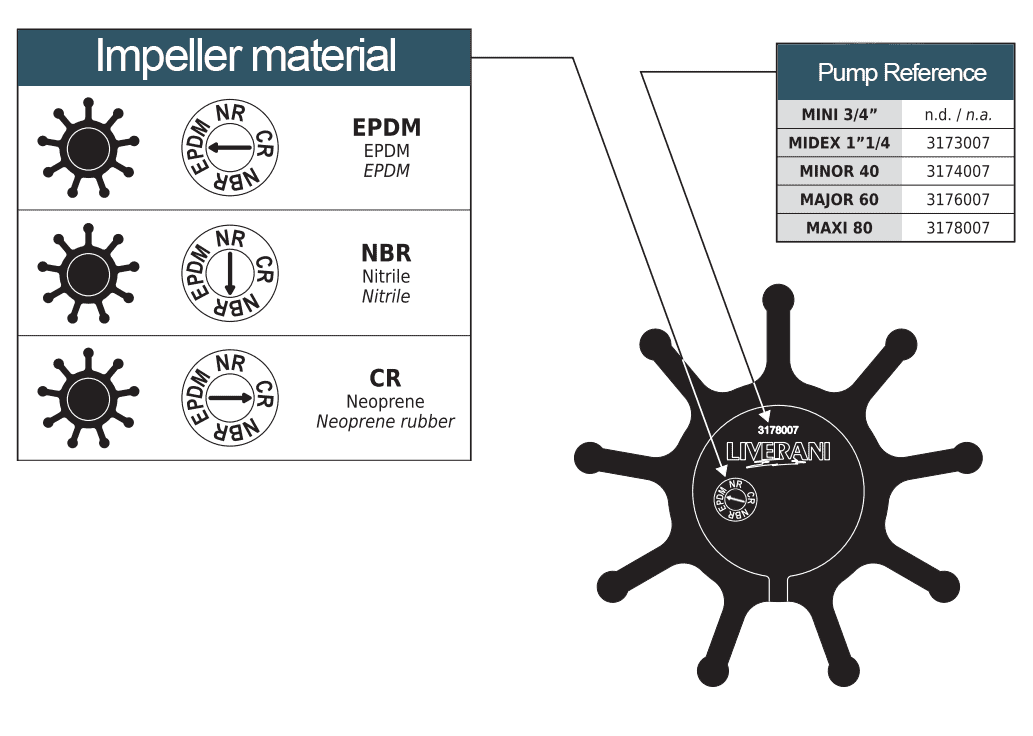

How to Identify Your Flexible Impeller Pump Impeller?
Check the impeller for the material and the pump reference number.
How to pick the right impeller material?
Temperatures reported in parentheses must be considered the highest temperatures that can be used. The temperature of 20° C corresponds to an average room temperature. The term “Variable” means that within the same family of polymers there can be different behaviours according to the kind of polymer, the concentration of the product and the temperature at which it is used.
| Product | EPDM | NBR | CR |
| Acetic acid (30%) | Excellent | Good (20° C) | Good (20° C) |
| Ammonium hydroxide (38%) | Not Available | Excellent (80° C) | Excellent (90° C) |
| Aniline | Excellent (90° C) | Poor | Poor |
| Aniline oil | Good (20° C) | Poor | Poor |
| Beer | Excellent (60° C) Good (80° C) | Excellent (60° C) Good (80° C) | Excellent (60° C) |
| Benzylic alcohol | Good (40° C) Poor (60° C) | Poor | Variable |
| Boric acid | Excellent (60° C) – Good (90° C) | Excellent (60° C) Good (90° C) | Excellent (70° C) Good (90° C) |
| Bromic acid (40%) | Excellent (90° C) | Poor | Variable |
| Butadiene | Variable | Variable | Variable |
| Butane | Poor | Excellent (90° C) Good (80° C) | Excellent (60° C) |
| Butter | Excellent (60° C) | Excellent (60° C) | Good (20° C)- Poor (60° C) |
| Calcium hydrate | Excellent (20° C) | Excellent (90° C) – Good (90° C) | Excellent (20° C) – Good (90° C) |
| Calcium hypoclorite | Excellent (120° C) | Poor | Poor |
| Cane sugar liquide | Excellent (80° C) | Excellent (60° C) – Good (90° C) | Excellent (20° C) Good (90° C) |
| Castor oil | Excellent (60° C) | Excellent (70° C) | Excellent (70° C) |
| Chlorine (dump) | Variable | Poor | Poor |
| Chloroacetic acid | Good (70°-90° C) | Poor | Excellent (20° C)-Poor (40° C) |
| Chloroform | Poor | Poor | Poor |
| Chromic acid | Good | Poor | Variable |
| Citric acid | Excellent | Excellent (70° C) Good (80° C) | Excellent |
| Cod-liver oil | Excellent (20° C) | Excellent (20° C) -Good (50° C) | Good (20° C) |
| Corn oil | Variable | Excellent (80° C) | Good (20° C) |
| Cotton oil | Excellent (20° C) – Poor (80° C) | Excellent (70° C) – Good (80° C) | Good (65° C) |
| Diesel oil | Poor | Excellent (80° C) | Poor |
| Ethyl acetate | Excellent (55° C) – Poor (70° C) | Poor | Poor |
| Ethyl alcohol | Excellent (90° C) | Excellent (60° C) – Good (85° C) | Excellent (70° C) – Good (80° C) |
| Fluoboric acid | Excellent (60° C) – Good (80° C) | Excellent (60° C) Good (85° C) | Excellent (60° C) Good (85° C) |
| Formic acid | Excellent (90° C) | Variable | Variable |
| Fruit juices | Excellent (100° C) | Excellent (60° C) | Excellent (60° C) |
| Gelatine | Excellent (80° C) | Excellent (70° C) | Excellent (60° C) Good (80° C) |
| Glucose | Excellent (80° C) | Excellent (70° C) | Excellent (60° C) |
| Glycerine | Excellent (80° C) – Good (90° C) | Excellent (80° C) | Excellent (70° C) |
| Hydraulic oil | Excellent (100° C) | Poor | Poor |
| Hydrochloric acid (conc.) | Poor | Poor | Poor |
| Hydrocyanic acid | Excellent (60° C) | Good (60° C) | Variable |
| Hydrofluoric acid (50%) | Good (60° C) | Poor | Variable |
| Hydrofluoric acid (conc.) | Poor | Poor | Poor |
| lodine | Good (70° C) Excellent (20° C) 6.5% | Good (60° C) Excellent (20° C) 6.5% | Poor |
| Kerosene | Poor | Excellent (80° C) | Good (20° C) |
| Lactic acid (conc.) | Excellent (60° C) | Excellent (20° C) | Excellent (20° C) – Good (60° C) Poor (80° C) |
| Linseed oil | Good (20° C) | Excellent (80° C) | B (20° C) |
| Magnesium chloride | Excellent (80° C) – Good (100° C) | Excellent (70° C) – Good (80° C) | Excellent (80° C) – Good (90° C) |
| Magnesium sulphate | Excellent (80° C) – Good (100° C) | Excellent (80° C) Good (100° C) | Excellent (80° C) – Good (90° C) |
| Mercury | Excellent (60° C) | Excellent (60° C) | Excellent (60° C) |
| Methyl alcohol | Excellent (70° C) Good (80° C) | Good (65° C) | Excellent (60° C) – Good (80° C) |
| Methyl-ethyl-ketone | Excellent (60° C) Good (90° C) | Poor | Poor |
| Milk | Excellent (100° C) | Excellent (60° C) | Excellent (60° C) |
| Nitric acid (10%) | Excellent (40° C) -Poor (80° C) | Poor | Poor (40° C) |
| Nitric acid (70%) | Poor | Not Available | Poor |
| Olive oil | Good (20° C) | Excellent (80° C) | Variable |
| Oxalic acid (conc.) | Excellent (100° C) | Good (60° C) | Good (60° C) |
| Palmitic acid | Good (20° C) | Excellent (70° C) | Good (20-70° C) |
| Paraffin | Poor | Excellent (60° C) | Good (20° C) |
| Perchloroethylen | Poor | Variable | Poor |
| Petrol | Poor | Excellent (80° C) | Poor |
| Phosphoric acid (85%) | Excellent (80° C) | Poor | Excellent (40° C) |
| Picric acid | Excellent (20° C) | Poor | Good (20° C) |
| Picric acid (10%) | Good (90° C) | Good (70° C) | Excellent (20° C) – Poor (40° C) |
| Pine oil | Poor | Good (80° C) | Poor |
| Propylic alcohol | Good (90° C) | Good (80° C) | Excellent (60° C) – Good (90° C) |
| SAE n.10 oil | Poor | Excellent (80° C) | Variable |
| Sodium chloride | Good (90° C) | Excellent (70° C) | Excellent (80° C) |
| Sodium hydrate | Excellent (20° C) | Good (65° C) | Good (90° C) |
| Soybean oil | Variable | Excellent (80° C) | Good (20° C) |
| Stearic acid | Good (60° C) | Excellent (80° C) | Good (60° C – 70° C) |
| Sulphur (fused 120° C) | Excellent (100° C) | Poor | Excellent (20° C) |
| Sulphur dioxide | C (20° C) | Poor | Poor (20° C) |
| Sulphuric acid (50%) | Good (60-80° C) | Excellent (20° C) – Poor (80° C) | Good (70° C) |
| Sulphuric acid (80%) | Excellent (60° C) – Poor (80° C) | Good (40° C)- Poor (60-80° C) | Poor |
| Toluol | Poor | Poor | Poor |
| Tomatoes juices | Excellent (80° C) | Excellent (60° C) | Excellent (60° C) |
| Trichloroethylene | Poor | Poor | Poor |
| Triethanolamine | Excellent (70° C) | Poor (20° C) 100% , Good (37° C) 80% | Excellent (70° C) |
| Vegetable oil | Variable | Excellent (70° C) | Poor (20° C) |
| Vinegar | Excellent (60° C) – Poor (90° C) | Good (20° C)- Variable (60 C) | Good (90° C) |
| Water | Excellent (100° C) | Excellent (80° C) | Good (80° C) |
| Whisky | Excellent (90° C) | Excellent (90° C) | Excellent (60° C) – Poor (90° C) |
| Wine | Excellent (90° C) | Excellent (90° C) | Excellent (90° C) |
| Xylol | Poor | Poor | Poor |
Liverani Impeller Dimensions
| Type | A | B | C | D | E | L | No. of Blades |
| MINI ¾” | Ø 12 | – | 29.6 | Ø 56 | 4 | 29.6 | 8 |
| MIDEX 1″ ¼ | Ø 24.8 | 35 | 52 | Ø 66.5 | 5 | 87 | 8 |
| MINOR 40 | Ø 24.8 | 37 | 87 | Ø 98 | 5.5 | 124 | 9 |
| MAJOR 60 | Ø 30 | 40 | 107 | Ø 146 | 7 | 167 | 9 |
| MAXI 80 | Ø 30 | 30 | 144 | Ø 196 | 10 | 185 | 9 |
Servicing Liverani Flexible Impeller Mini Pump
Servicing Liverani Flexible Impeller Midex Pump
Servicing Liverani Flexible Impeller Minor Pump
Servicing Liverani Flexible Impeller Major Pump
Servicing Liverani Flexible Impeller Maxi Pump
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Pump/ Size | Mini, Midex, Minor, Major, Maxi |
| Material (EPDM | NBR | CR) | EPDM, NBR Nitrile, CR Neoprene Rubber |
