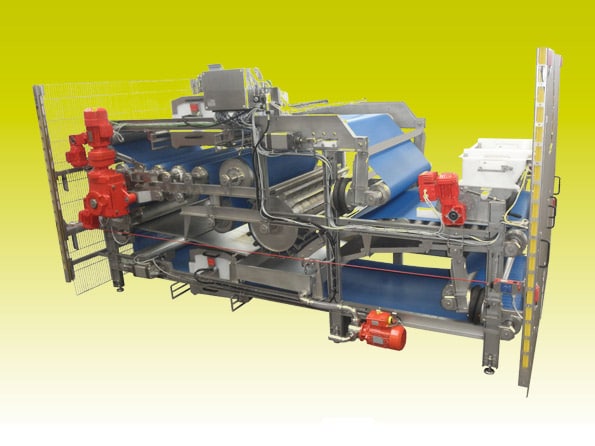

Double Belt press ZBP1100
Double Belt press with pneumatic belt tensioner, automatic belt control, high pressure belt cleaner and brush cleaning system for the belt. The mash is applied to the belt in a uniform layer by the adjustable metering box, at the end of the pressing sequence the pomace is removed from the belt by a scraper. In combination with our WAR65 washing system, the level of the metering box is automatically supervised and controlled.
Product Documents
Download PDF
Product Description
Double Belt press with pneumatic belt tensioner, automatic belt control, high pressure belt cleaner and brush cleaning system for the belt. The mash is applied to the belt in a uniform layer by the adjustable metering box, at the end of the pressing sequence the pomace is removed from the belt by a scraper. In combination with our WAR65 washing system, the level of the metering box is automatically supervised and controlled.
Technical Data
Nominal rating kg/h | 7000 kg/h |
Motor rating | 4,2 kW (PS) |
Connected load | 400V 50Hz (3-phase) |
Electrical protection | 3×16 A |
Length | 4400 mm |
Width | 2250 mm |
Height | 2200 mm |
Discharge height | 1500 mm |
Belt width | 1100 mm |
Strip length | 14500 / 10900 mm |
Conveyor width | 320 – 870 mm |
Conveyor height | 10-50 mm |
Weight | 3400 kg |
Material | 1.4301 / AISI 304 |
Juice yield | up to 80 % |
Belt speed | 1,2 – 4,5 m/min |
Contact time | 1,5 – 6 min |
Water consumption for cleaning | 10 l/min |
Connection for waste water | Ø 75 mm |
Connection for juice outlet | DN 40 |
Height juice outlet | 210 mm |
Height waste water drain | 100 mm |
Height pomace ejector | 790 mm |
Scope of supply | HD-cleaner, compressor |
