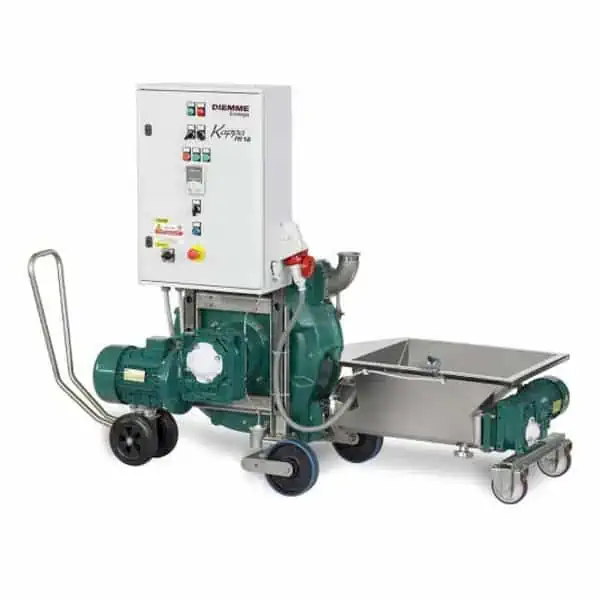

Diemme Perstaltic Pumps
Peristaltic pump for pumping destemmed crushed grapes, fermented marc and liquids.
Product Description
Diemme Perstaltic Pumps
Peristaltic pump for pumping destemmed crushed grapes, fermented marc and liquids.
Technical Description
Reversible, self-priming, single-tube peristaltic pump. The pumping unit consists of a stainless steel rotor and a flexible peristaltic hose. The rotor compresses the peristaltic hose by means of two rollers creating the pumping chambers. No mechanical element comes in direct contact with the product ensuring a very gentle movement with no shearing forces.
Features
- Pump mounted on a trolley with 4 wheels
- Hopper equipped with double infeed screw
- Electric control panel with inverter for pump speed adjustment
TECHNICAL DATA | KAPPA PR18 | KAPPA PR26 | KAPPA PR39 |
Total height (mm) | 980 | 1130 | 1597 |
Total length (mm) | 1860 | 2200 | 2509 |
Hopper height (mm) | 470 | 450 | 492 |
Outlet height (mm) | 703 | 897 | 1.337 |
Total width (mm) | 800 | 840 | 820 |
Inlet / Outlet (mm) | 80mm (3″) | 100mm (4″) | 125mm (5″) |
Liquid capacity (hl/hr) | 18-90 | 51-180 | 90-300 |
Destemmed/crushed grapes capacity (ton/hr) | 1.4-7 | 4.3-15 | 7-25 |
Fermented capacity (ton/hr) | 3.5-4 | 6-7 | 10 |
We’re a supplier to the commercial winery, brewery, cidery & distillery industries across Canada & North America. Please fill in the form below to contact our in-house sales consultants. We’ll get back to you within 1-2 working days.
