Cross Flow Filters

Tangential flow micro-filtration allows the filtering, clarification and micro-biological stabilization of your wine in one pass.

Request a Quote

Request a Quote
SKU: 290 Categories: ,
Share On:

Product Description

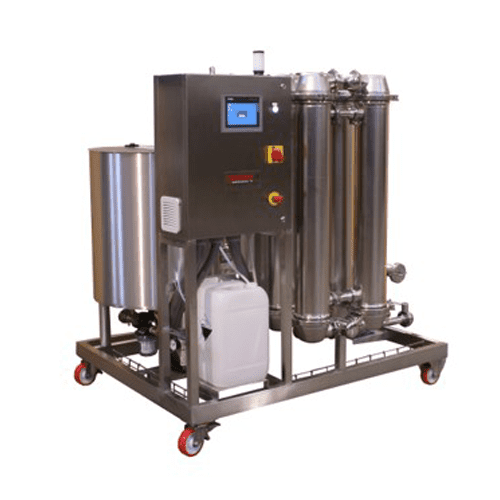

CROSS-FLOW FILTERS – FTS SERIES
  • Tangential flow micro-filtration allows the filtering, clarification and micro-biological stabilization of your wine in one pass. The advanced engineering of the FTS cross-flow filters guarantees the full respect of the structural and organoleptic qualities of your wine.
  • Simple regeneration with warm water allows to quickly move from one cycle of filtering to another
  • Cleaning is carried out by common alkaline products (100% pure caustic soda)
  • The range of cross-flow filters also includes versions for carbonated beverages (sparkling wines, beer, etc), and products with a high suspended solids (must, fruitís juices, etc)
FTS POLYPROPYLENE MEMBRANES: THE ESSENTIAL COMPONENT OF THE SYSTEM
  • Polypropylene filtering membranes have a capillary structure with symmetrical open fiber pores
  • Membranes are fixed in stainless steel housings that are pre-assembled on a mobile skid, making the filters immediately ready to use
FTS MANUAL & SEMI-AUTOMATIC
  • Feeding pump group built with stainless steel
  • Recycle Pumps operating at low rotation speed but at high yield, all made of stainless steel
  • Back flush system for the periodic and automatic counter-washing of the membranes, carried out during the process with the filtered wine
  • Instrumentation control, transducers of pressure for the maintenance of the PTM pressure
  • Visual sight-glasses, sample valve, optional flow-meter, optional thermometer
  • Control board with PLC
  • Pneumatic valves for automated control (on semi-automatic models)
  • Semi-automatic (series FTS-SA): the cycle of filtration and the counter-washingare automatically managed
FTS FULLY-AUTOMATIC
  • All the phases of process, from the filling up to the unloading and washing of the filter are automatically controlled
  • Buffer tank equipped with level control and automatic product inlet system control with the relevant pump
  • CIP tank for the complete washing of the pump and the pre-filter
  • System for the automatic washing phase control
  • PLC touch-screen instrumentation for the continuous control of pressures, temperatures, output and level in the buffer tank
  • Complete system of pneumatic valves for the operational managing of all the functions
  • Operational device for the final unloading of the filter

Additional Information

OPTIONS AVAILABLE

• FTS 10-360, • Filtering surface 10-360 m2
