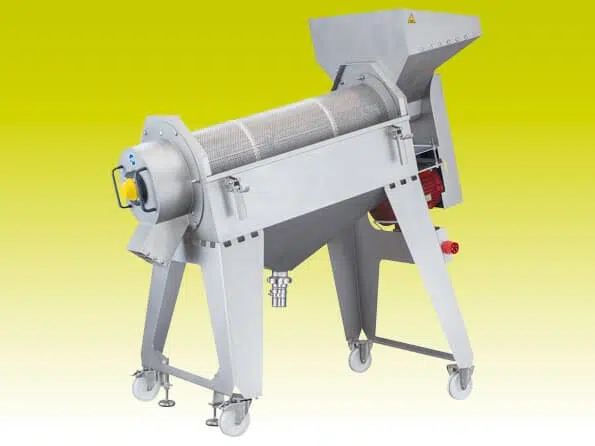

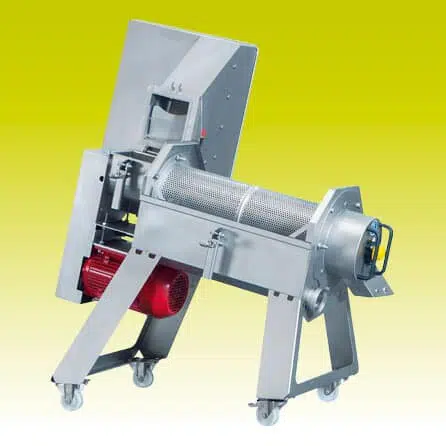

De-stoning machine EP1000

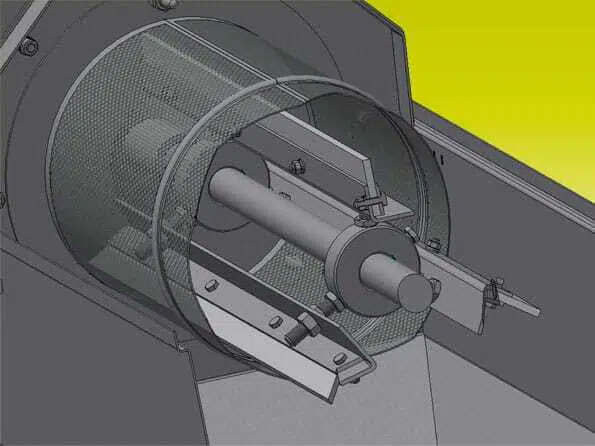

De-stoning / straining system with changeable screens and adjustable rotor for de-stoning and straining fruit and berries. The stones are ejected separately from the mash.
Product Documents
Download PDF
Product Description
De-stoning / straining system with changeable screens and adjustable rotor for de-stoning and straining fruit and berries. The stones are ejected separately from the mash.
TECHNICAL DATA
| Nominal rating kg/h | up to 1000 kg/h |
| Motor rating | 5,5 (7,5) kW (PS) |
| Connected load | 400V 50Hz (3-phase) |
| Electrical protection | 16 A |
| Length | 1650 mm |
| Width | 820 mm |
| Height | 1670 mm |
| Discharge height | 1640 mm |
| Weight | 205 kg |
| Material | 1.4301 / AISI304 |
| Connection for mash Pumps | DN 65 AG |
| Height mash outlet | 525 mm |
| Height stone outlet | 615 mm |
