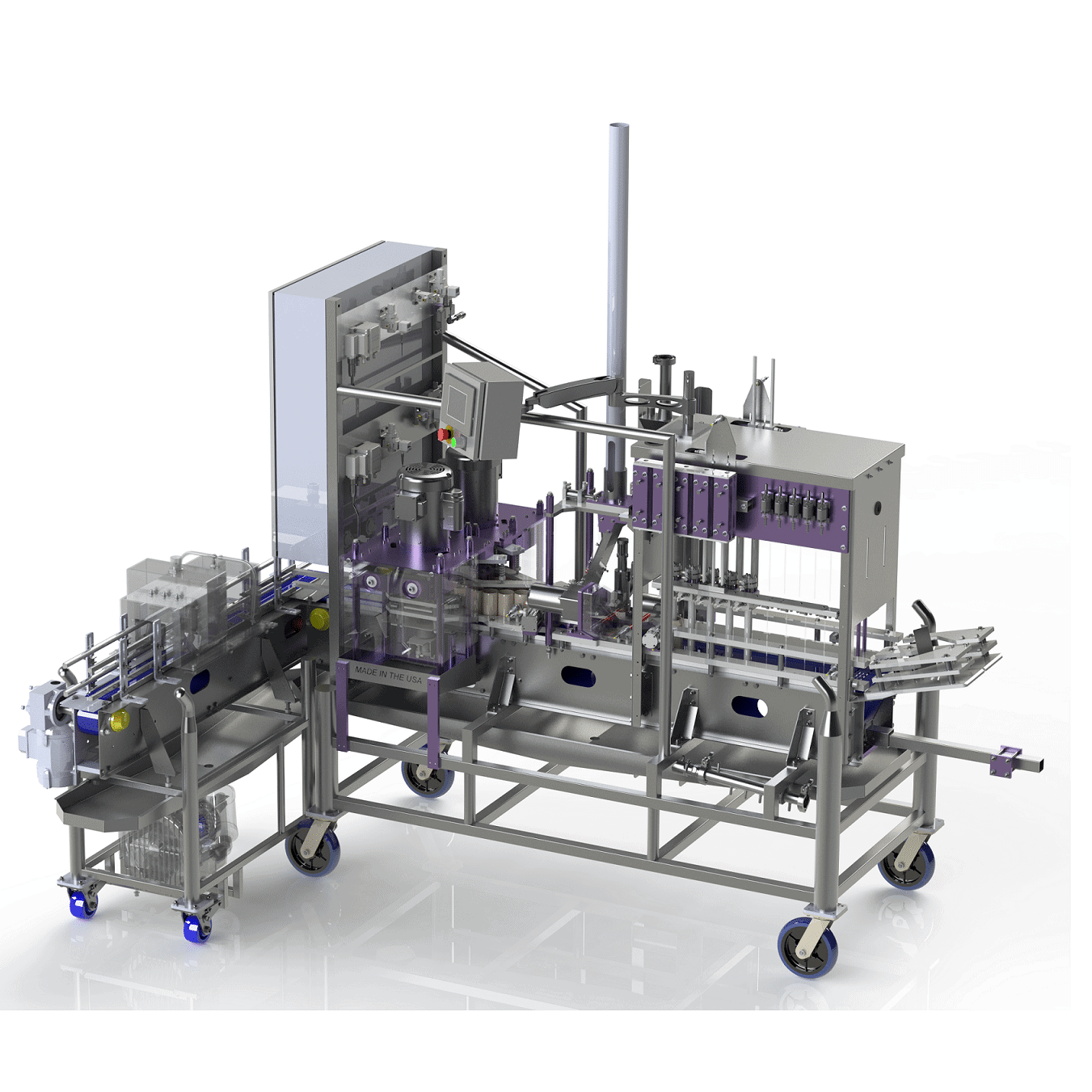

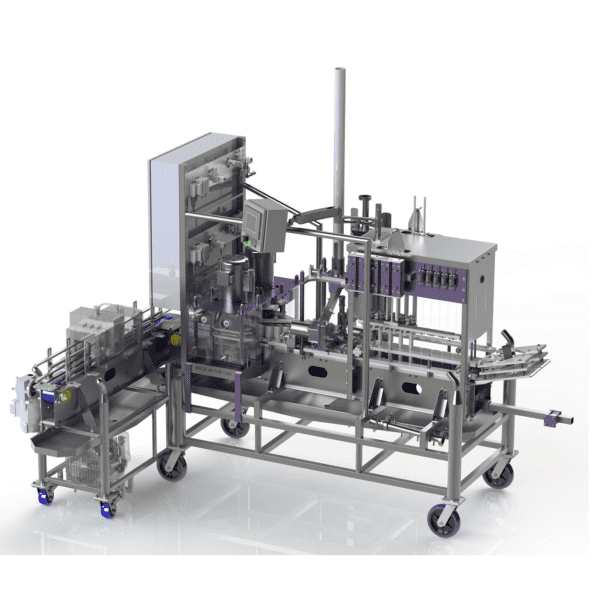

The Roaring Fork RF-80

Product Description

The Roaring Fork RF-80

“Dual-lane canner, fastest Twin Monkeys system. Start with this model or start with the Animas and later upgrade in the field”

Equipped with:

• Precise volumetric flow meters for fill levels repeatable to ±2g
• Patent-pending cam-less wedge seamer: fast, repeatable; low maintenance
• Lid applicator with CO2 blanket generator; very reliable
• Intuitive operator color touch screen
• Washdown systems for easy cleaning

5-Step Oxygen Reduction using:

• Closed fill tubes that do not re-acquire air between fill cycles
• Pre-fill purge station that clears air out prior to fills
• Short paths from fill to seam
• CO2 blanket generator when lids are placed on foam
• Dial-in foam/fill levels for individual fill head control

Capabilities

• Fully automated from empty can infeed to finished can outfeed
• Simple/quick change between 12oz and 16oz cans
• (other sizes can be specified at time of order)
• Lids placed on foam
• Designed for ease of maintenance
• Adjustable timers for all system functions
• CIP/SIP for fill system

Specs

• Throughput: 80+ cans/minute
• Dimensions: 82”L x 36”D x 78”H
• Weight: 950 lbs
• Can Sizes: 12 oz. and 16 oz. standard, others available on request
• Construction: 304 stainless steel and anodized aluminum

Utilities:

• Power: 120V and 208-240 1-phase options available
• Controls Air: 90 psi 2.2 cfm of clean, dry air (4.5 for San Juan)
• CO2: 20 psi 1 cfm of CO2
