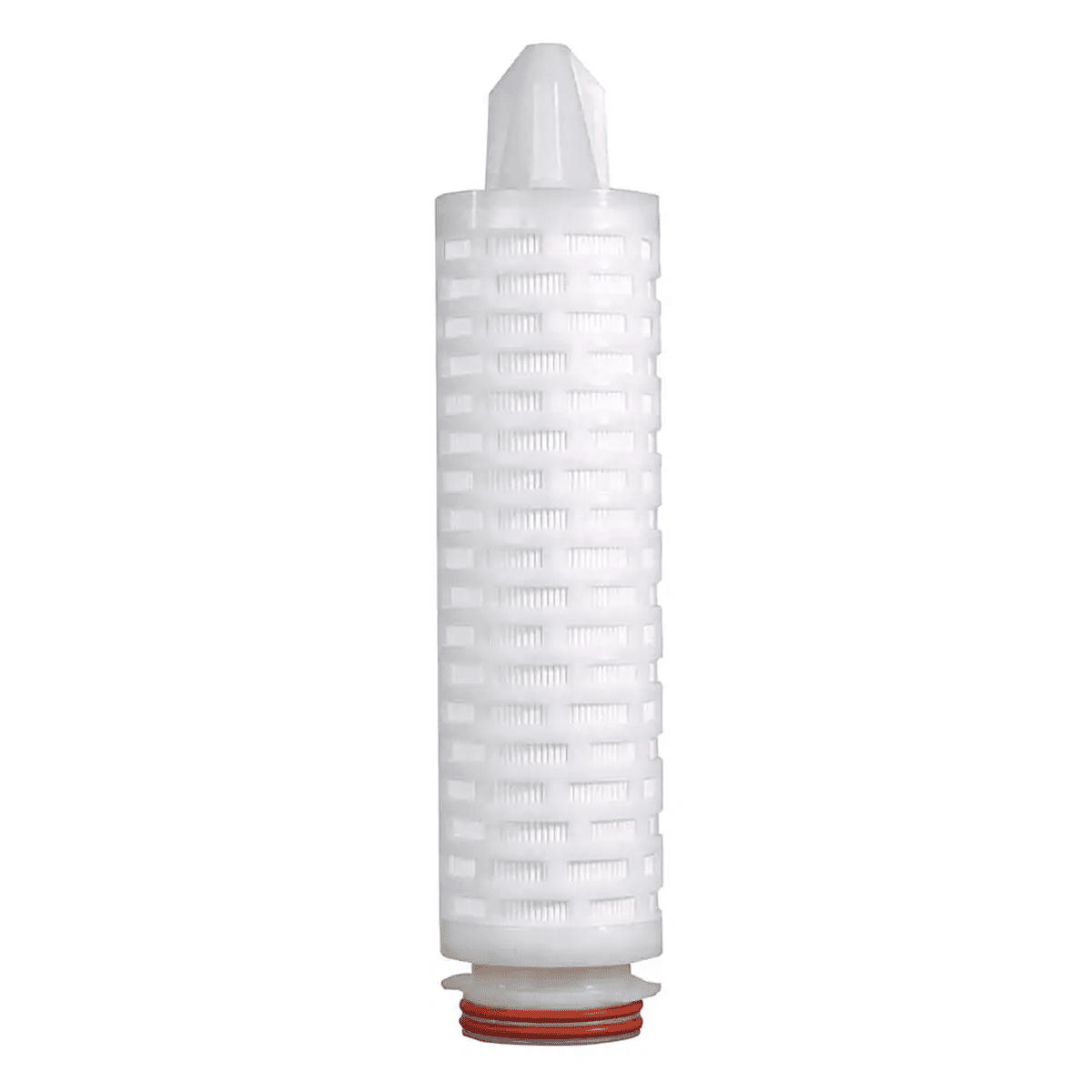

BevPor PS Filter Cartridge

BevPor PS wine filters protect the unique characteristics of wine by removing yeast and other spoilage organisms to ensure microbial stabilization prior to packaging. The inert and highly asymmetric PES membrane provides validated microbial retention to typical spoilage organisms whilst preserving the wine’s unique properties to ensure it reaches the consumer as the wine maker intended. Combined with hydrophilic properties for easy integrity testing, BevPor PS filters provide assured performance throughout their service life.

BevPor PS beer filters protect the unique characteristics of beer by removing yeast and other spoilage organisms to ensure microbial stability during cold stabilization The inert and highly asymmetric PES membrane provides validated microbial retention to typical spoilage organisms, whilst protecting the beer’s organoleptic qualities to preserve a fresh taste and a long shelf-life once packaged. Combined with hydrophilic properties for easy integrity testing, BevPor PS filters provide assured performance throughout their service life.

BevPor PS filter cartridges have been specifically designed for stabilization of a range of beverages prior to filling operations.

• Final stabilization of beverages before packaging.
• Fully validated microorganism retention characteristics.
• Hydrophilic construction for repeated integrity testing.

Features

• Validated retention to spoilage organisms
• Inert materials of construction
• Easily integrity tested in-situ

Benefits

• Ensures effective microbial stabilization of beer & wine
• Preserves the organoleptic qualities of the beer / desirable characteristics of the wine
• Assured filtration performance

Materials of Construction

• Filtration Media: Polyeterhsulphone
• Upstream Support: Polyester
• Downstream Support: Polyester
• Inner Support Core: Polypropylene
• Outer Protection Cage: Polypropylene
• End Caps: Nylon
• End Cap Insert: 316L Stainless Steel

Technical Specifications

• End Cap Configuration: Fin / 226 Bayonet
• Seal Material: Silicone
• Brand: Parker
• Division: Bioscience and Water Filtration Division
• Industry: Food and Beverage
• Application: Microbial Control
• Technology: Filtration
• Product Type: Liquid Filter Elements
• Product Series: BEVPOR PS
• Filter Construction: Pleated
• Filter Material: Polyethersulphone (PES)
• For Fluid Type: Bottled Water, Beer, Cider, Wine
• Operating Temperature: Maximum continuous operating temperature 70°C. (158°F) Higher short-term temperatures during CIP
• Specifications Met: Current EC1935/2004 and 21 CFR Part 177 and current USP Plastics Class VI – 121 C
• Product Style: Cartridge
