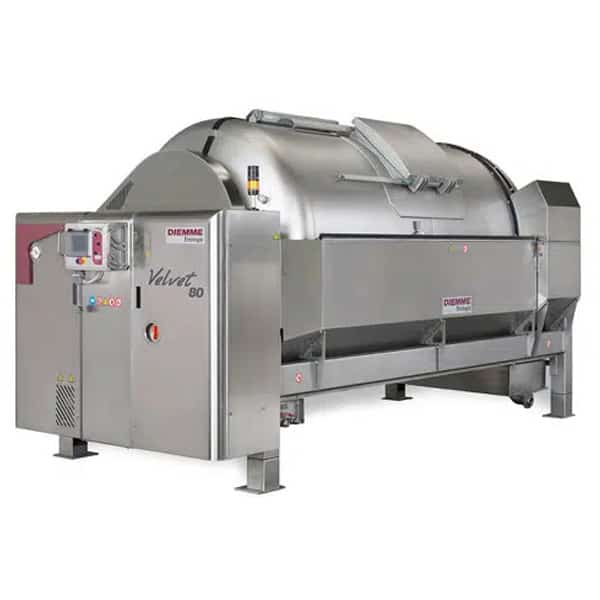

Diemme Closed Tank Pneumatic Presses – Velvet 15, 23, 34, 40, 50, 65, 80

High-draining surface horizontal pneumatic presses with channels mirror polished. A wide range of options and ancillaries complete the solutions in order to satisfy your requirements.

SKU: 416 Categories: ,
Share On:

Product Description

High-draining surface horizontal pneumatic presses with channels mirror polished. A wide range of options and ancillaries complete the solutions in order to satisfy your requirements.

Features of Velvet 15 | Velvet 23 | Velvet 34

  • Horizontal pneumatic press with side membrane certified in accordance with current European Directive in force, with closed AISI 304 stainless steel tanks.
  • High draining efficiency thanks to mirror-polished channels placed along the internal lateral surface. Simplified cleaning operations thanks to a quick assembly and disassembly system.
  • Large double door manually opened and closed with mechanical safety lock.
  • Pressing membrane consisting of heavy fabric coated with a food grade polymer, it inflates totally even in the absence of product, with no minimum load required. A quick fastening system without perforation of the membrane.
  • Frame entirely made of AISI 304 stainless steel.
  • The electric control panel and covers are entirely made of AISI 304 stainless steel, in compliance with the current European Directive in force.
  • Machine equipped with compressor for membrane inflation and blower for vacuum.
  • Safety side protection and emergency button for user’s safety. This machine meets the current European Directive in force.
  • Simple and user-friendly operator interface E-panel with touchscreen to easily access the programming pages. It allows the management and programming of all working cycles and monitoring of the working cycle and press status.
  • 30 pressing programs are stored in the PLC and a “Rocking” system for tank oscillation and M.I.P. Intelligent Program for optimizing the pressing cycle time.

Features of Velvet 40 | Velvet 50 | Velvet 65 | Velvet 80

  • Horizontal pneumatic press with side membrane certified in accordance with current European Directive in force.
  • Closed AISI 304 stainless steel tank equipped with a safety rupture disc against over-pressures.
  • High draining efficiency thanks to mirror-polished channels placed along the internal lateral surface. Simplified cleaning operations thanks to a quick assembly and disassembly system.
  • Pressing membrane consisting of heavy fabric coated with a food grade polymer, it inflates totally even in the absence of product, with no minimum load required. A quick fastening system without perforation of the membrane.
  • Machine equipped with automatic axial feed valve complete with pressure switch.
  • Frame entirely made of AISI 304 stainless steel.
  • Electric control panel in compliance with current European Directives in force.
  • The machine is equipped with a compressor for membrane inflation and a blower for vacuum; a second compressor is provided for control air.
  • Safety side protection and emergency button for user’s safety. This machine meets the current European Directive in force.
  • Simple and user-friendly operator interface E-panel with touchscreen to easily access programming pages. It allows the management and programming of all working cycles and monitoring of the working cycle and press status.
  • 30 programs are stored in the PLC and a “Rocking” system for tank oscillation and M.I.P. Intelligent Program for optimizing the pressing cycle time.
  • The touchscreen control panel is mounted on a stainless-steel support which allows adjustment in inclination to give the best visibility all of the time. The panel can be easily dismantled from the press to protect it during periods of prolonged inactivity.



Technical data

diemme closed tank pneumatic presses velvet 15, 23, 34, 40, 50, 65, 80

Velvet 15Velvet 23Velvet 34Velvet 40Velvet 50Velvet 65Velvet 80
A3,809mm4,027mm4,445mm5,064mm5,565mm5,652mm5,652mm
B3,330mm3,630mm4,048mm4,216mm4,716mm4,830mm4,883mm
C1,433mm1,587mm1,782mm1,657mm2,060mm2,143mm2,168mm
C’1,450mm1,450mm1,500mm
C”1,257mm1,395mm1,343mm
D1,058mm1,280mm1,280mm1,450mm1,450mm1,575mm1,575mm
E1,350mm1,680mm1,680mm2,002mm2,002mm2,331mm2,331mm
F1,598mm1,931mm1,992mm2,277mm2,277mm2,521mm2,576mm
Tank volume1,500L2,300L3,400L4,000L5,000L6,500L8,000L
Door dimension800x440mm900x480mm900x480mm650x480mm650x480mm650x480mm700x550mm
Juice pan volume400L400L500L
Empty weight1,150kg1,300kg1,500kg2,100kg2,200kg2,800kg3,000kg
Full weight2,650kg3,600kg4,900kg6,100kg7,200kg9,300kg11,000kg
Installed power3.35kW5kW5.4kW10.5kW12.5kW13.5kW15.2kW
Whole bunch capacity1,000kg1,400kg2,100kg2,500kg3,100kg4,000kg5,000kg
Destemmed/crushed grapes capacity3,000kg4,600kg6,800kg8,000kg10,000kg13,000kg16,000kg
Fermented and drained
capacity
4,500kg6,900kg10,200kg12,000kg15,000kg19,500kg24,000kg

The above data is indicative and may vary according to the degree of ripeness, type of grape and filling method. All data refers to initial whole bunch weight prior to any operation like destemming, crushing, maceration, fermentation, etc.

Options of Velvet 40 | Velvet 50 | Velvet 65 | Velvet 80

Velvet 40Velvet 50Velvet 65Velvet 80
Double door
Stainless steel frameStandardStandardStandardStandard
DN125 automatic axial feedingStandardStandardStandardStandard
Pulse Jet automatic washing system
Deep Washing
F.R.O. Feeding Rotation Optimizer
F.I.P. Intelligent Program
M.I.P. Intelligent ProgramStandardStandardStandardStandard
Skin contact maceration
2-ways juice selection valves
3-ways juice selection valves
Stainless steel raised feet
Manual wheels
Inert pressing system type E
Neutral 1 system
Neutral 2 system
Motorized wheels
Circular manifold
Mimic panel
Compressor for membrane inflationStandardStandardStandardStandard
Auxiliary compressorStandardStandardStandardStandard
Remote push-button panel



Options of Velvet 15 | Velvet 23 | Velvet 34

Velvet 15Velvet 23Velvet 34
DN100 manual axial feeding
Raised stainless steel feet – 500 mm long
Juice level probe
Oversize air compressor 100 m3/h – 5,5 kW
F.R.O. Feeding Rotation Optimizer
Neutral 2 system
Pulse Jet automatic washing system
